LUXION Double Switch Module with Dimmer
A 2-gang capacitive dimmer touch switch module from LUXION, designed to control and dim two separate light circuits.
Luxion
Luxion Touch Dimmer Light Switch Module – 2 Gang LX-MT-D201
SKU: LX-MT-D201
AED 69
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang touch dimmer switch module, for use on a Luxion panel or combined with other Luxion modules on a Luxion glass frame.
Product details
The Luxion 2 gang touch dimmer light switch module. The product can be fitted on its own on a Luxion panel, or together with other Luxion sockets and light switches on a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
Highlights
02
Installation: Wiring Diagram
Connect the live (L) wire to terminal L. Each light is connected between the neutral (N) and its own output terminal, L1 or L2. Switch off the power before installing or removing the module.
- L: Live (phase) input
- L1: Output to light 1
- L2: Output to light 2
- N: Neutral goes to the lights only
03
Dimensions
The module fixes in place with screws spaced 60 mm apart. The glass panel and metal frame are not included.
- Module front: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Rear housing height: 49 mm
- Screw fixing spacing: 60 mm
04

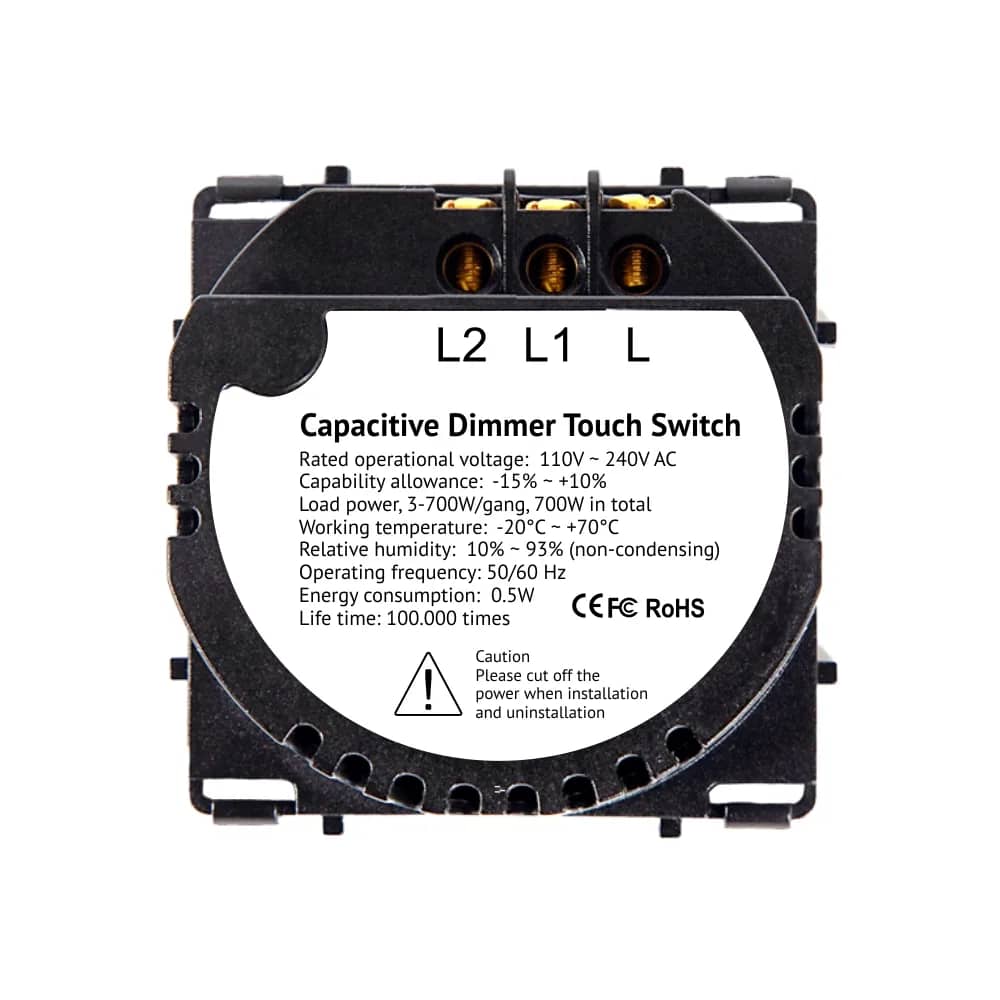

Technical Data
- Type: Capacitive Dimmer Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 5-700W/gang, 700W in total
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60 Hz
- Energy consumption: 0.5W
- Life time: 100,000 times
- Markings: CE, FC, RoHS
05
What's in the Box
Switch module only.
- Glass panel: not included
- Metal frame: not included
