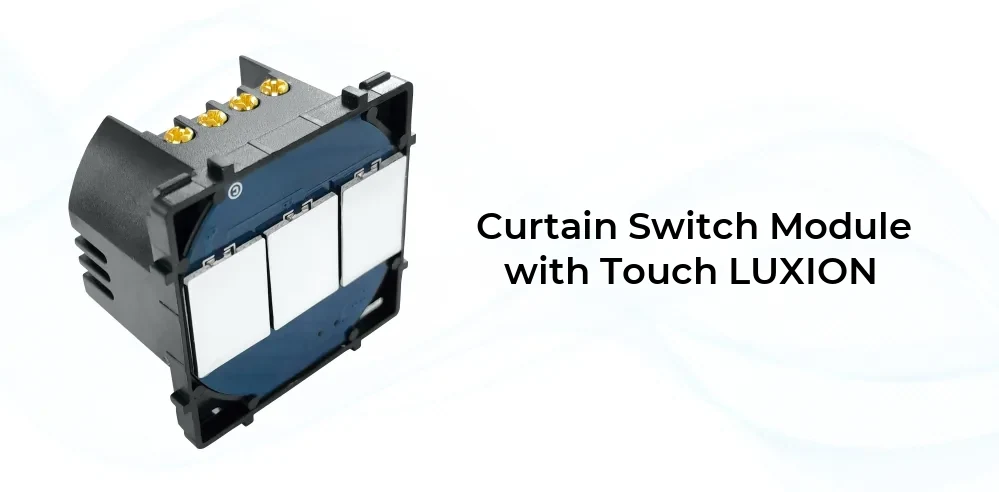

LUXION Touch Curtain Switch Module
A touch-operated switch module for controlling curtain motors, from the LUXION range. The glass panel and metal frame are not included.
Luxion
Luxion Touch Curtain Switch Module – LX-MT-C201
SKU: LX-MT-C201
AED 88
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion touch curtain switch module with a precise, smartphone-like touch sensor – compatible only with Luxion glass frames and panels.
Product details
The Luxion switch range stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise – just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing both functionality and comfort to your home.
Compatible only with Luxion glass frames and panels.
Highlights
02

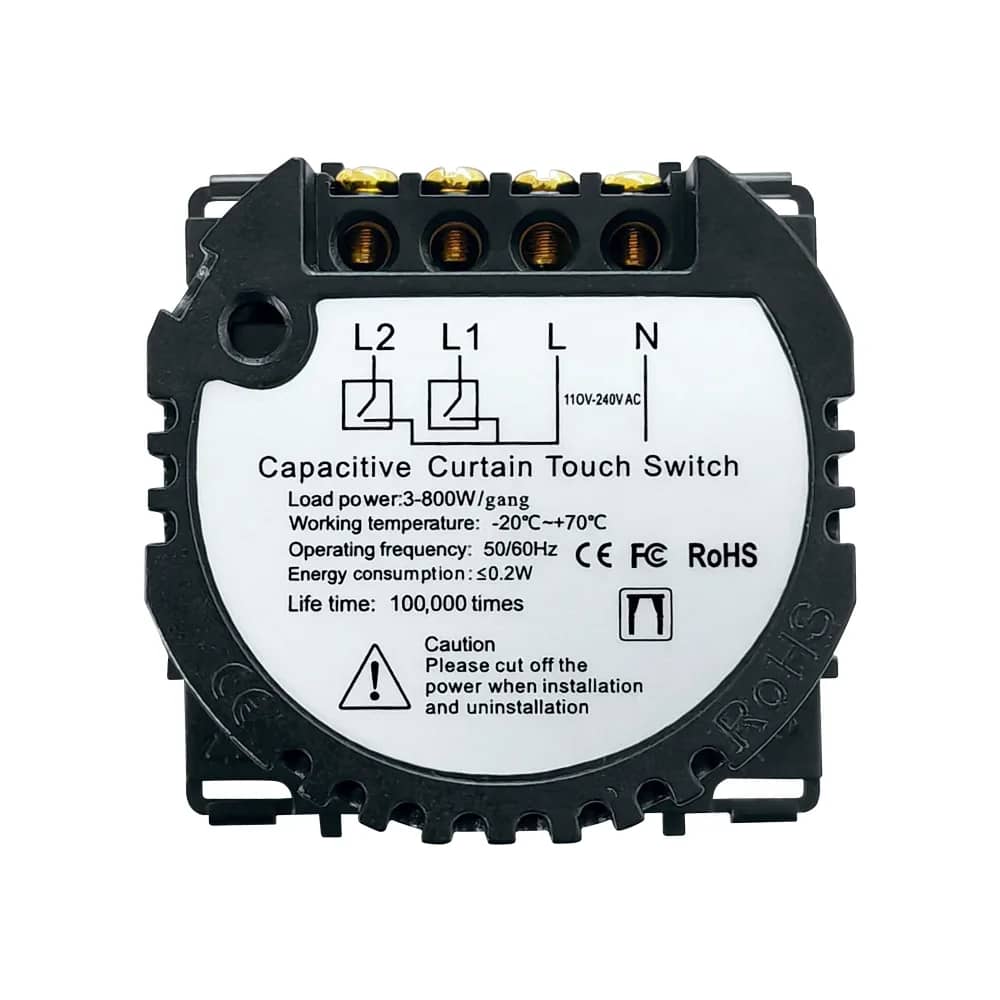

Installation – Wiring Diagram
Connect the module according to the wiring diagram printed on the banner. Cut off the power before installation and uninstallation.
- Neutral (N): to the N terminal and to the curtain motor
- Live (L): to the L terminal
- L1 and L2: to the two motor wires
- Fixing: screw mounting system, 60 mm between screws
03
Technical Data
- Type: Capacitive Curtain Touch Switch
- Rated voltage: 110V-240V AC
- Load power: 3-800W/gang
- Working temperature: -20℃ to +70℃
- Operating frequency: 50/60Hz
- Energy consumption: ≤0.2W
- Life time: 100,000 times
- Markings: CE, FC, RoHS
04
Dimensions
- Front: 50 mm x 50 mm

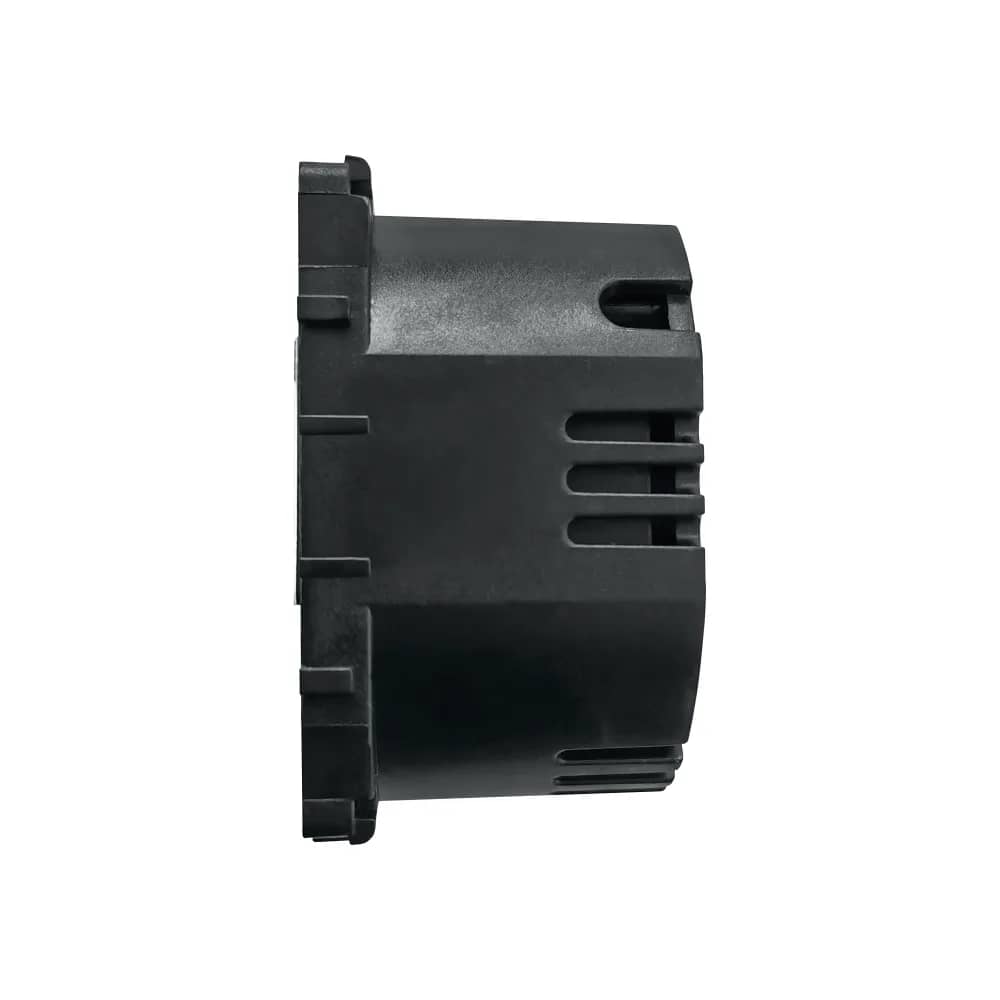

- Height (body): 49 mm
- Depth: 26 mm + 5 mm
- Screw spacing: 60 mm
05
Not Included
- Glass panel
- Metal frame
