01
Dimensions
Compact square design for standard wall installation.
- Front panel: 86 x 86 mm
- Panel depth: 16 mm
- Rear body depth: 25 mm
- Rear body height: 48 mm
Luxion
Luxion Smart Underfloor Heating Thermostat – LXD-WF-86WK
SKU: LXD-WF-86WK-W
AED 181
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Wi-Fi smart thermostat for underfloor heating with touch panel, Tuya/Smart Life app control and Alexa & Google Home support.
Product details
The Luxion smart thermostat provides efficient control of underfloor heating systems and is compatible with the Tuya and Smart Life apps for easy control straight from your phone. It features Wi-Fi connectivity and works with Google Home and Alexa. Its modern design, touch panel and durable materials make it suitable for any home.
Highlights
02
Display and Controls
The backlit display shows all key information at a glance, with touch buttons for operation.
- Room temperature and set temperature
- Humidity
- Day of the week and time
- Weekly programme period
- Manual mode, weekly programme mode and sleep mode
- Child lock indicator
- Electric heating and water heating indicators
- Error indicator
- Buttons: Mode (M), Time/Programme, Power, Up, Down
03

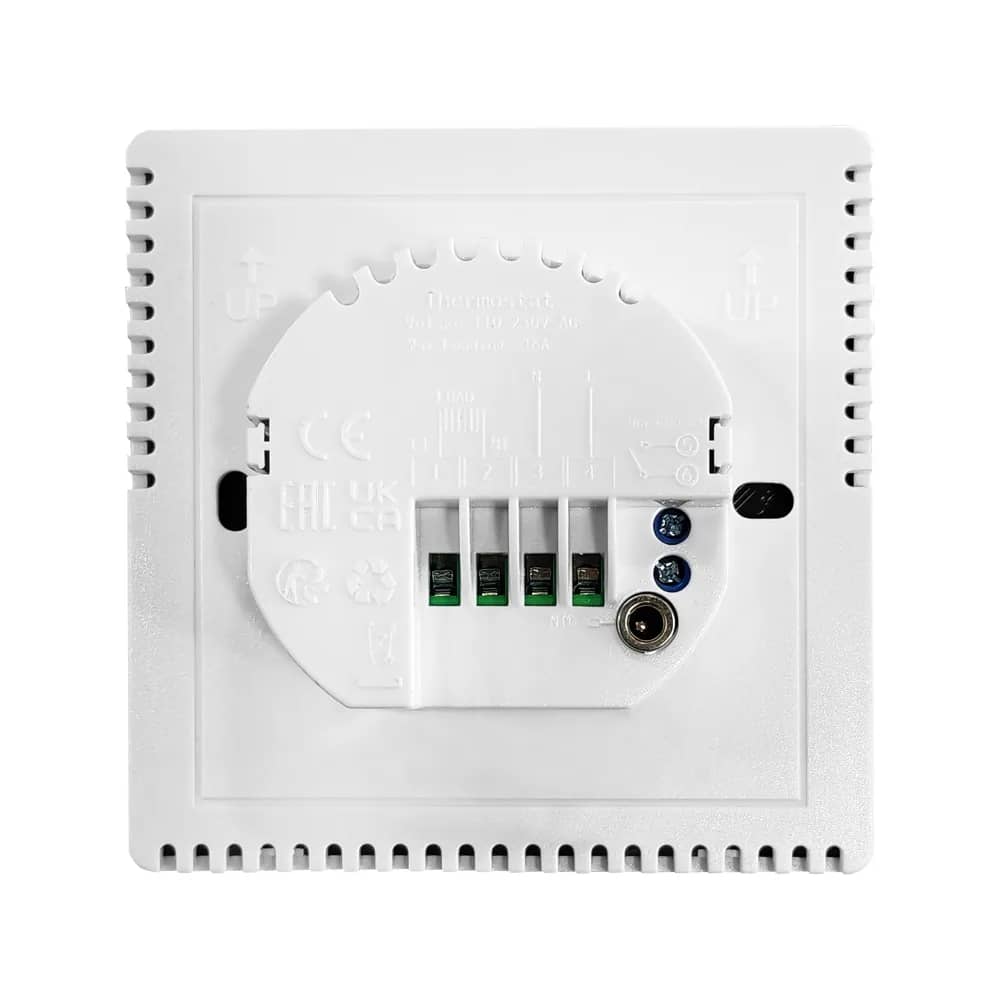

Wiring Options
Wiring diagrams are provided for three heating applications.
- Electric heating: Voltage 110~230V AC, max. load 16A
- Zone heating (or pump): Voltage 110~230V AC, max. load 5A
- Gas boiler/boiler heating: Voltage 110~230V AC, max. load 16A, dry contact
- NTC sensor connection
