Luxion

Luxion Single Socket Module with Cover – Without Glass Frame

SKU: LX-MP049W

AED 12

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion single socket module with cover, designed to fit Luxion glass frames and panels alongside other sockets or switches.

Product details

The Luxion single socket module with cover can be installed together with other Luxion single or media sockets on a glass frame, or together with a light switch on a glass panel.

Compatible only with Luxion glass frames

Highlights

Luxion Single Socket Module with Cover – Without Glass Frame – Single Socket Module with Protective Cover
01

Single Socket Module with Protective Cover

LUXION single socket module with a protective cover, supplied without a glass frame. Shown in white, gold, black and grey finishes.

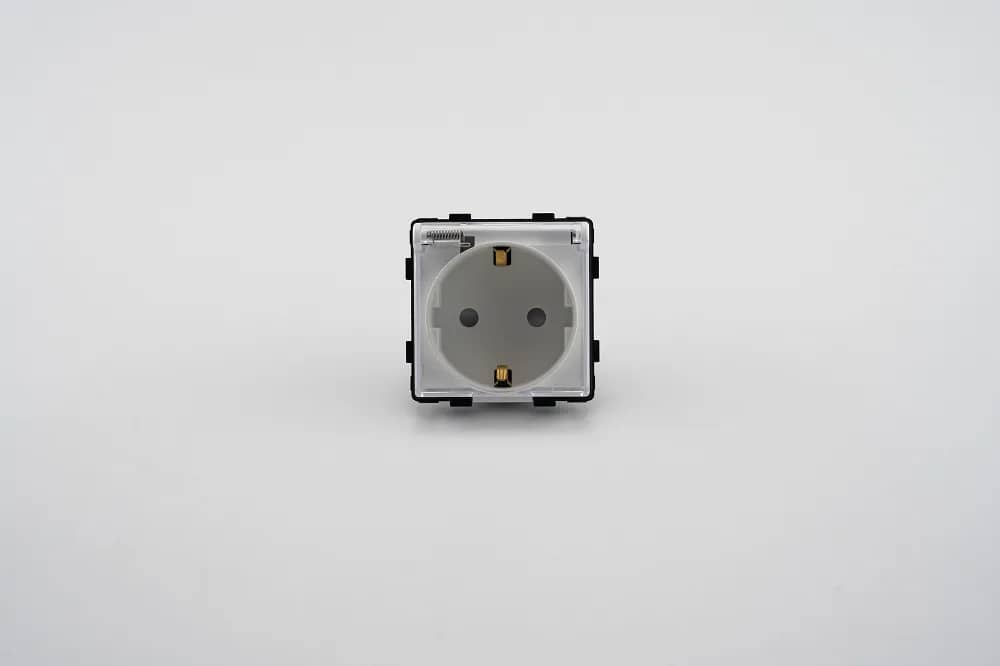

  • Single socket with hinged transparent protective cover
  • Supplied without glass frame
Luxion Single Socket Module with Cover – Without Glass Frame – Installation – Wiring Diagram
02

Installation – Wiring Diagram

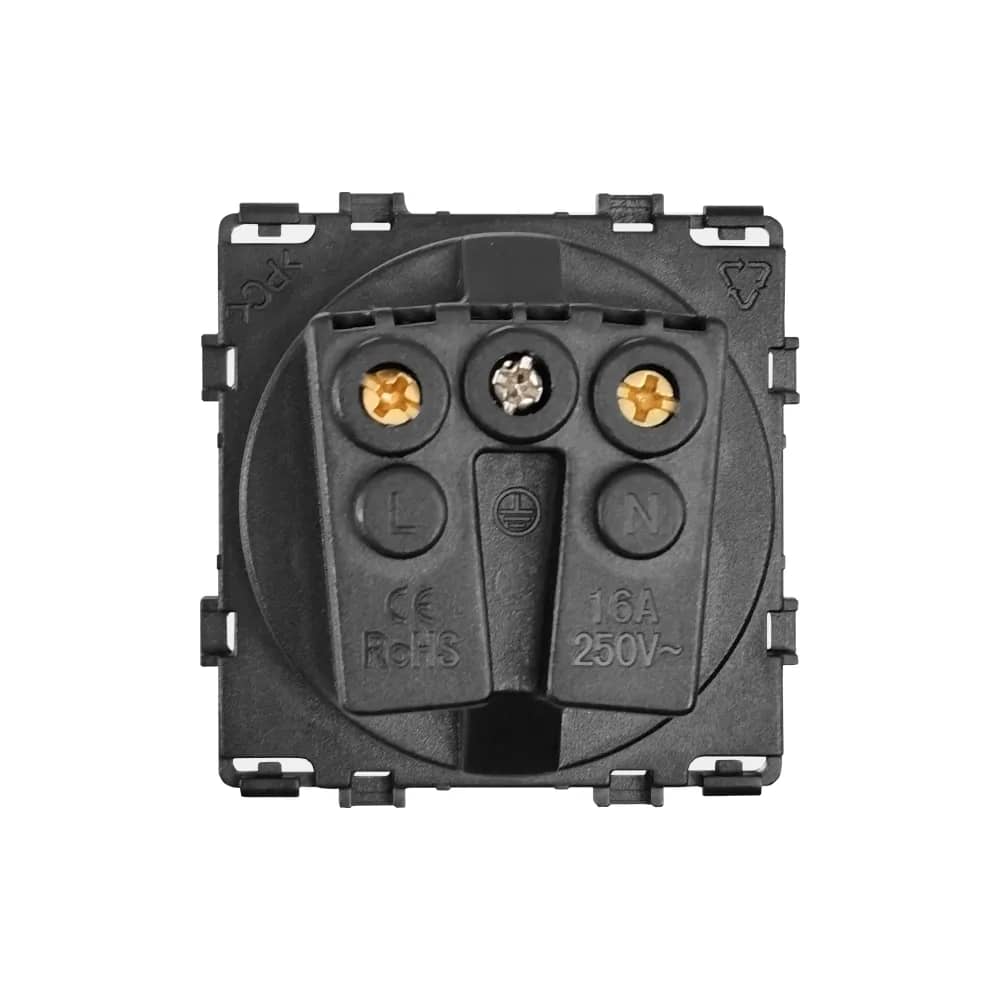

Connect the three supply wires to the matching terminals on the back of the module.

  • Live (L): L terminal
  • Neutral (N): N terminal
  • Earth: earth terminal (centre)
  • Rating marked on module: 16A 250V~
  • Markings: CE, RoHS
Luxion Single Socket Module with Cover – Without Glass Frame – Dimensions
03

Dimensions

The module fixes with a screw mounting system. The glass/aluminium frame and the metal frame are not included.

  • Front: 45 mm x 45 mm
  • Screw fixing centres: 60 mm

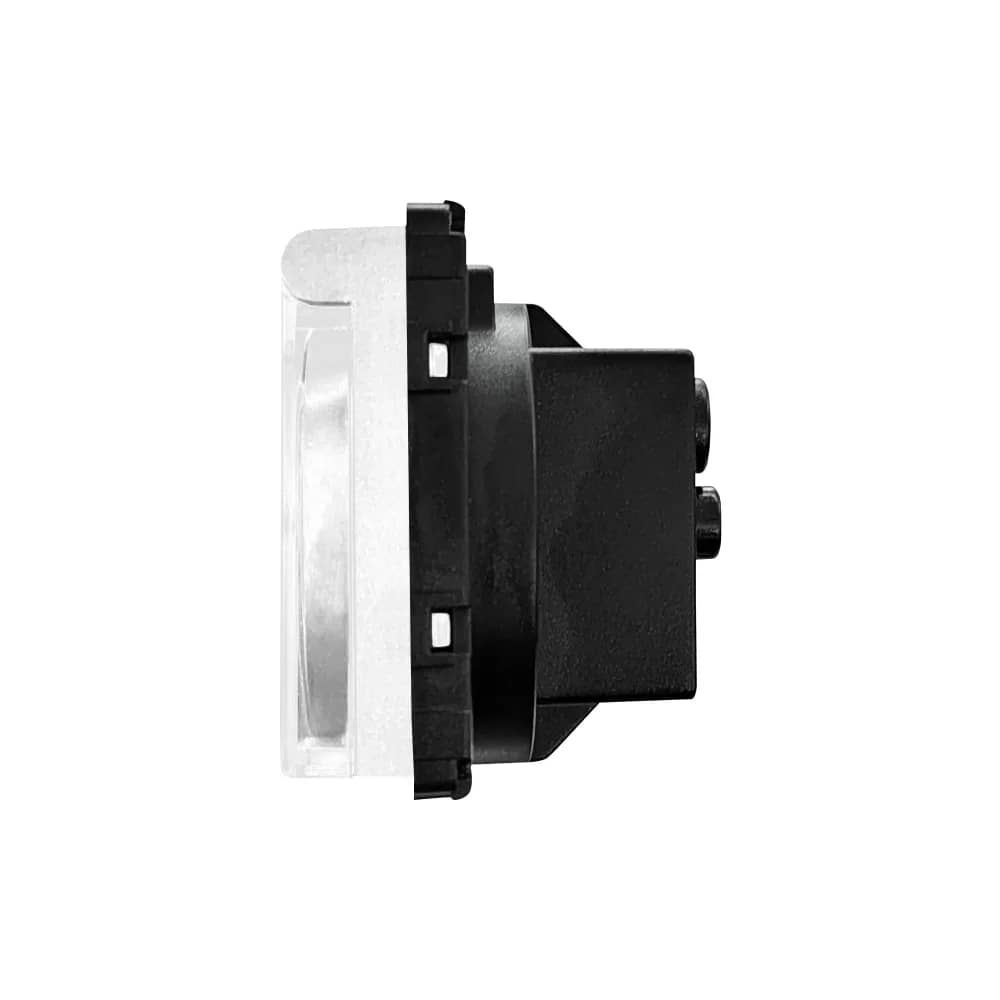

  • Depth: 15 mm (front) + 30 mm (rear body)
  • Rear body height: 47 mm
  • Glass/aluminium frame: not included
  • Metal frame: not included
