Luxion Silicone Touch Light Switch Module – 4 Gang (LX-ST-401)

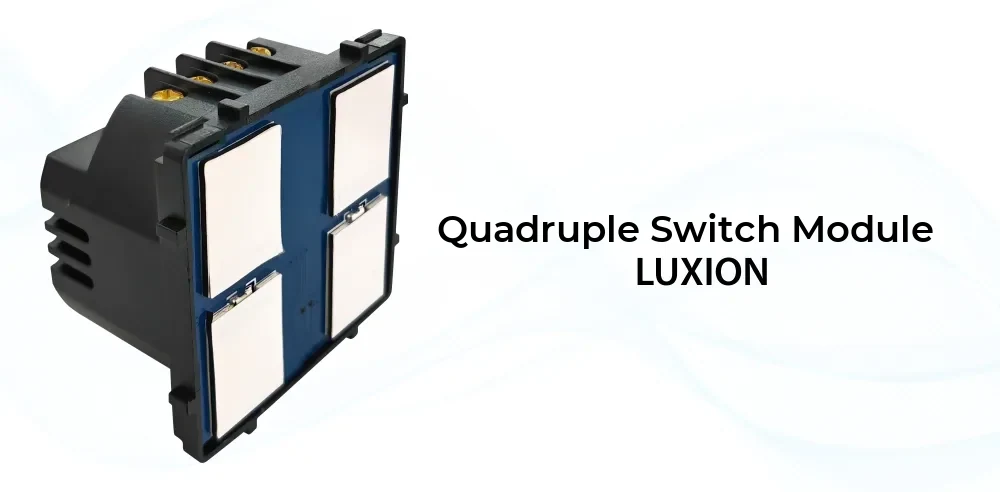

LUXION Quadruple Switch Module

A 4-gang, 1-way touch switch module from LUXION, controlling up to four separate lighting circuits.

• 4 gang (quadruple) switch module
• 1-way touch switch
• Outputs L1, L2, L3, L4

Installation – Wiring Diagram

Connect the live wire (L) to the L terminal and each light to one of the outputs L1–L4; the other side of each light connects to the neutral (N). Switch off the power before installation and removal.

• Live (L) to terminal L
• Lights to outputs L1, L2, L3, L4
• Neutral (N) to the lights

Technical Data

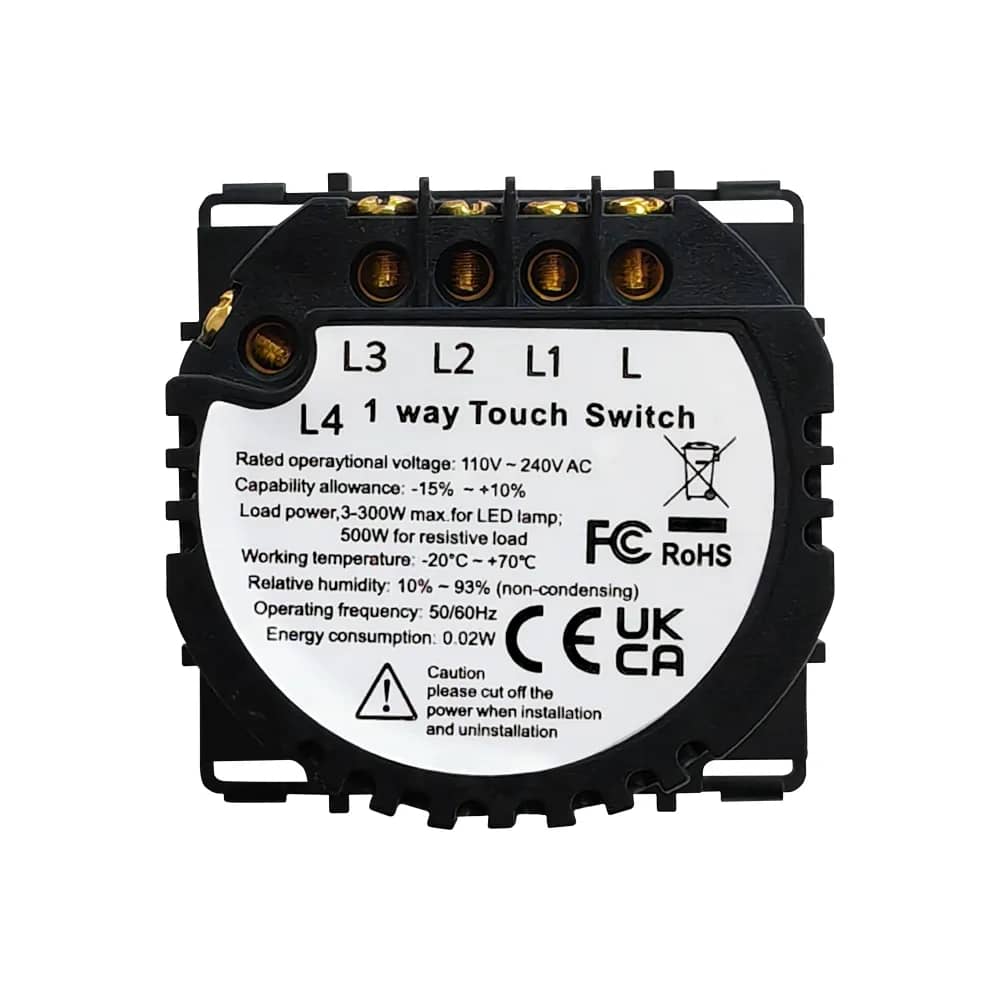

• Rated operating voltage: 110V ~ 240V AC
• Capability allowance: -15% ~ +10%
• Load power: 3-300W max for LED lamp, 500W for resistive load
• Working temperature: -20°C ~ +70°C
• Relative humidity: 10% ~ 93% (non-condensing)
• Operating frequency: 50/60Hz
• Energy consumption: 0.02W
• Markings: FC, CE, UKCA, RoHS

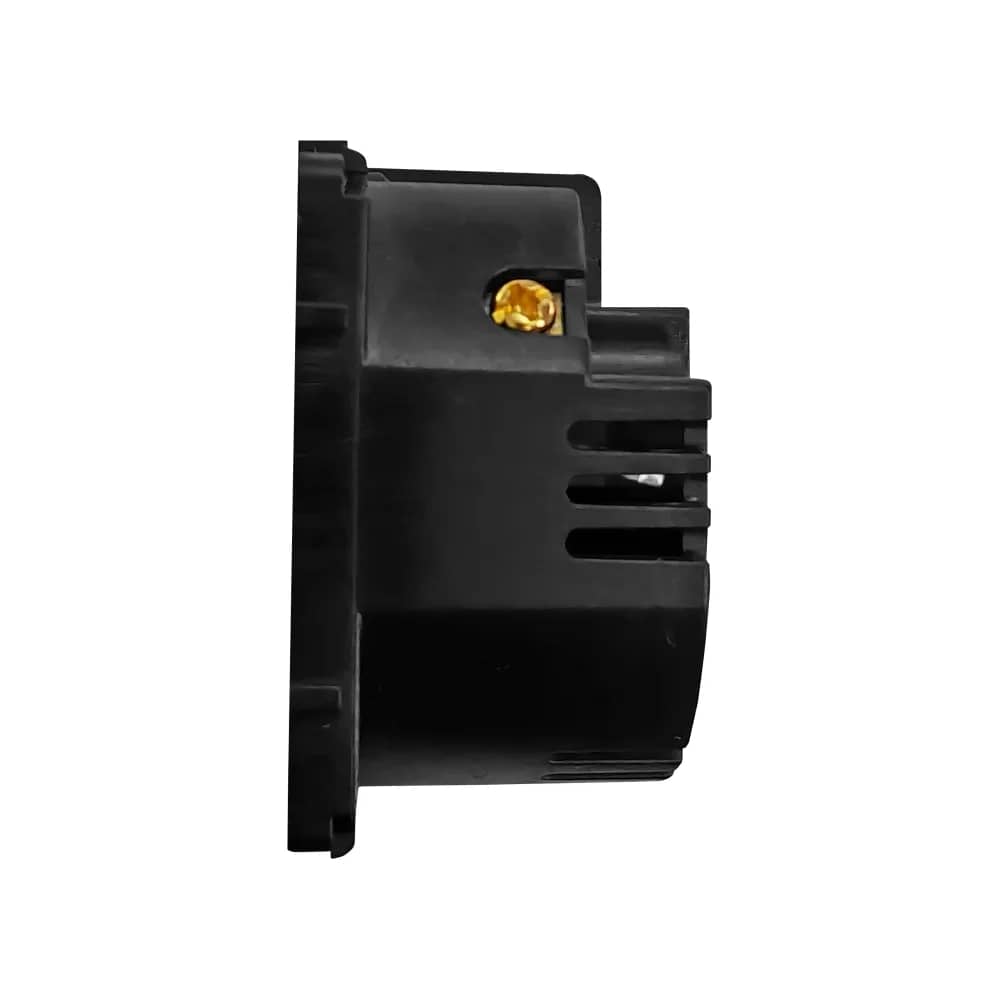

Dimensions

The module is fixed with a screw mounting system.

• Front: 50 mm x 50 mm
• Height: 49 mm
• Depth: 5 mm + 26 mm
• Screw mounting spacing: 60 mm

Not Included

The glass panel and metal frame are not included with the module.

• Glass panel (not included)
• Metal frame (not included)
