LUXION Triple Switch Module
A 3-gang touch light switch module from LUXION, designed to be fitted with a separate glass panel and metal frame.
Luxion
Luxion Silicone Touch Light Switch Module – 3 Gang (LX-ST-301)
SKU: LX-ST-301
AED 45
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.

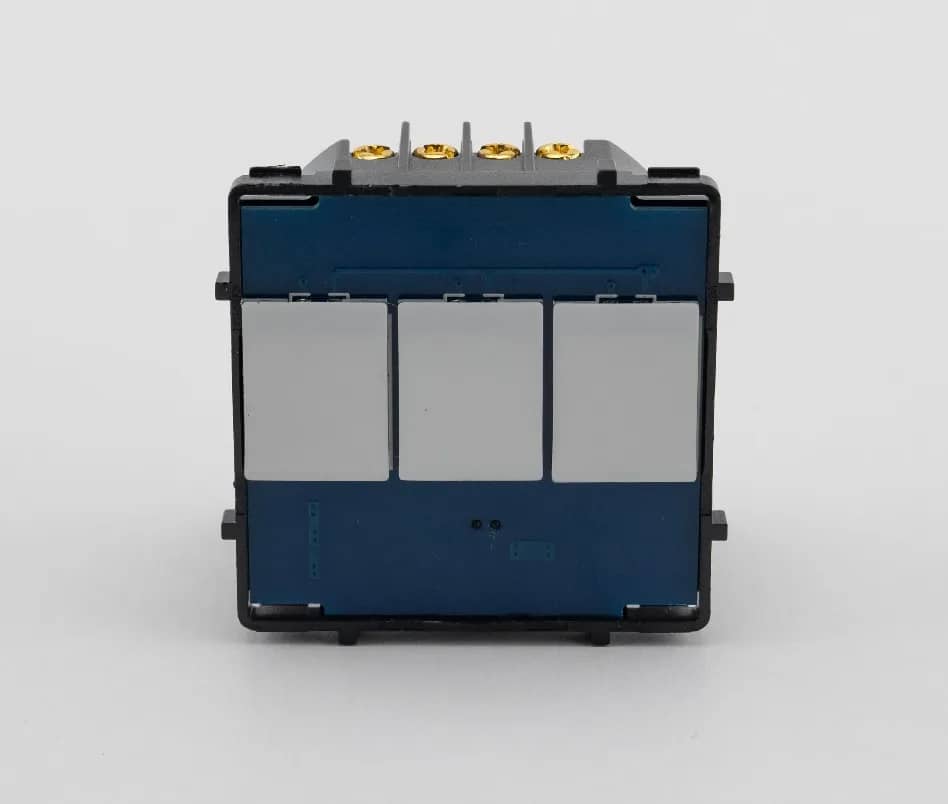

Luxion 3 gang silicone touch switch module, mountable alone on a Luxion panel or combined with other Luxion modules on a glass frame.
Product details
The Luxion 3 gang light switch module can be fitted on its own to a Luxion panel, or together with other Luxion sockets and switches on a Luxion glass switch frame.
Compatible only with Luxion glass frames and panels.
Highlights
02
Installation – Wiring Diagram

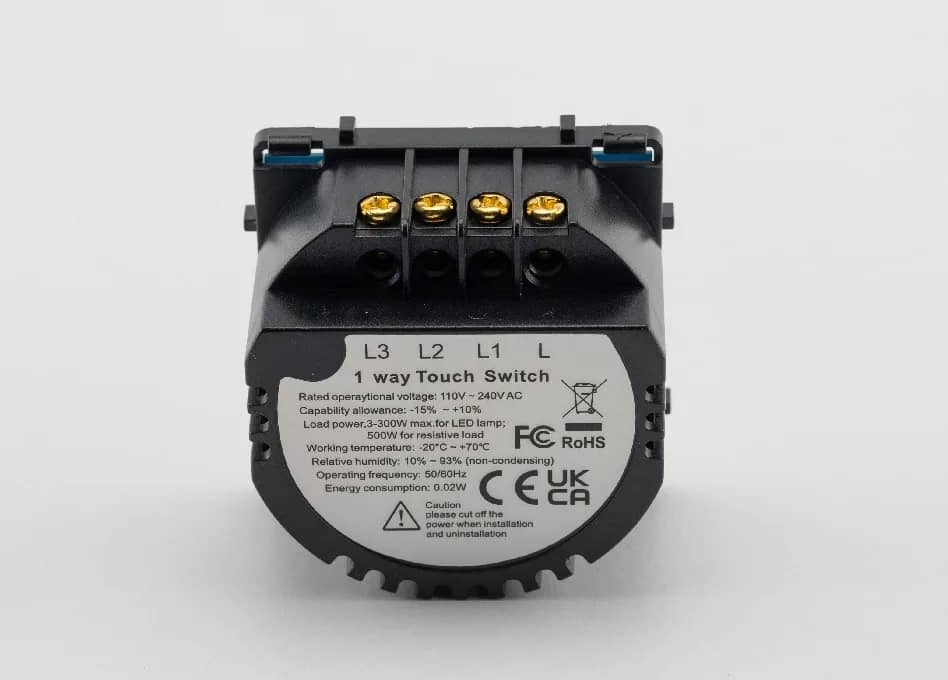

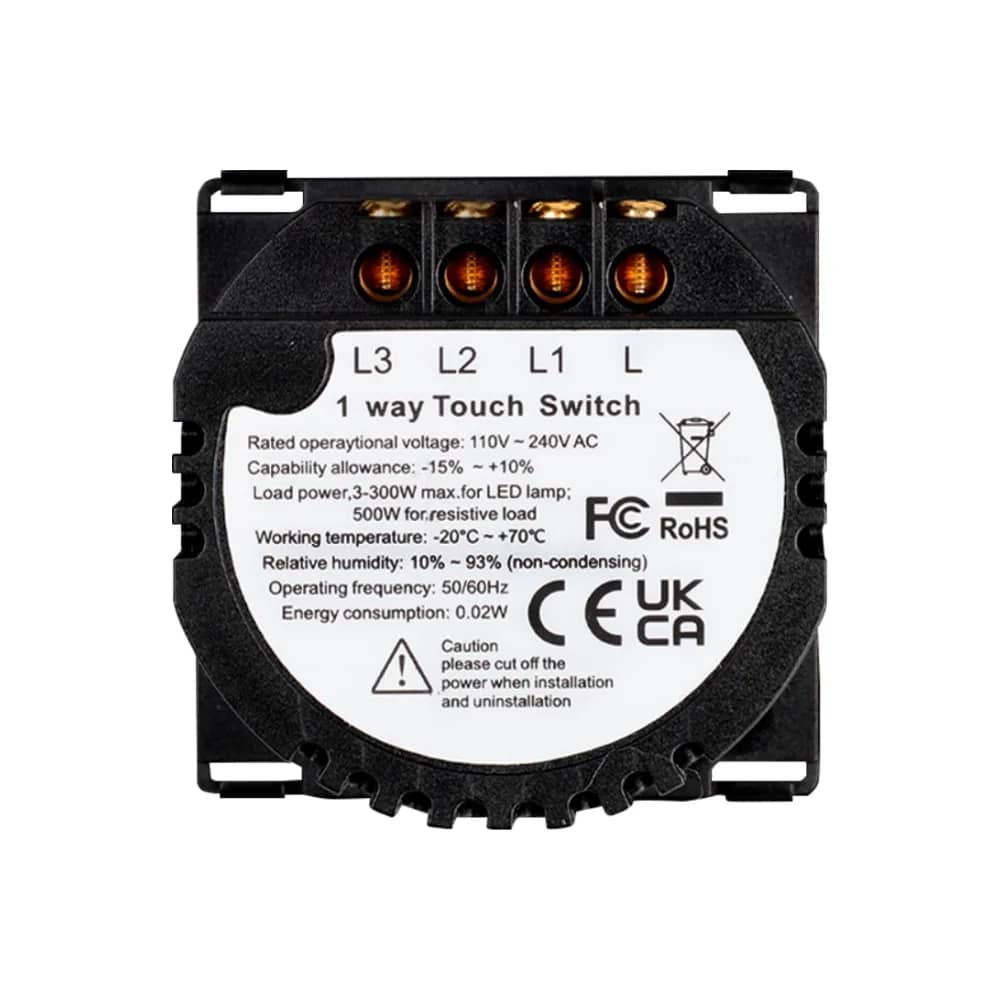

Connect the live wire (L) to the L terminal and each of the three lights to terminals L1, L2 and L3. The lights are connected to the neutral wire (N). Cut off the power before installation and removal.
- L: Live (phase)
- L1, L2, L3: Outputs to lights 1, 2 and 3
- N: Neutral (connected to the lights)
03
Technical Data
- Rated operating voltage: 110V ~ 240V AC
- Voltage tolerance: -15% ~ +10%
- Load power: 3-300W max. for LED lamps, 500W for resistive loads
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
04

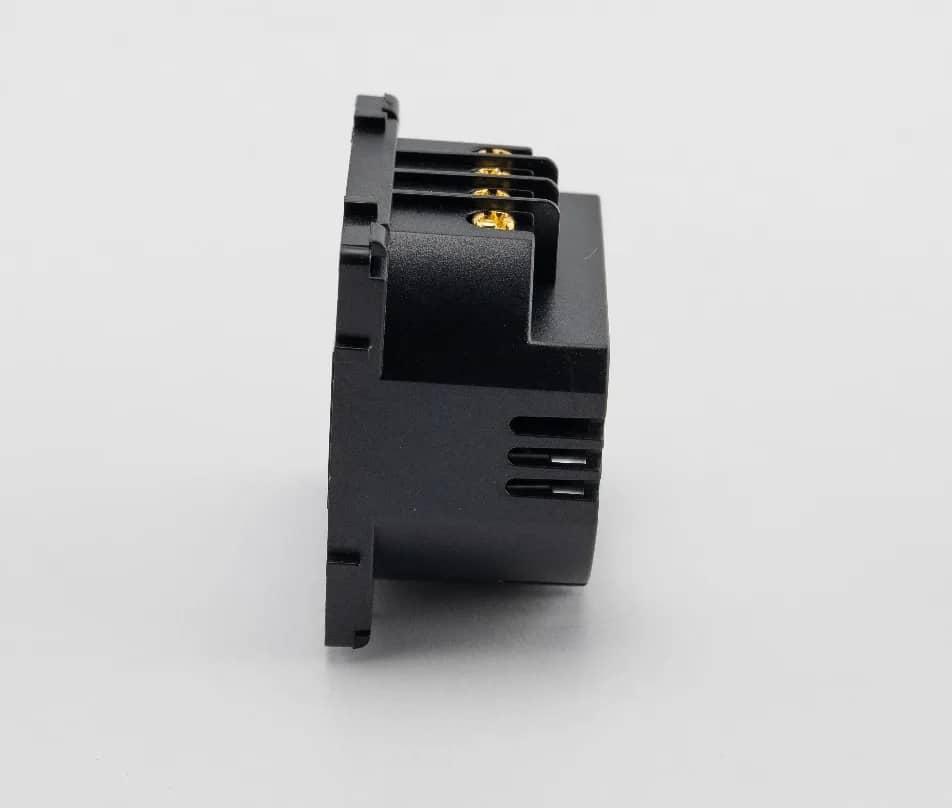

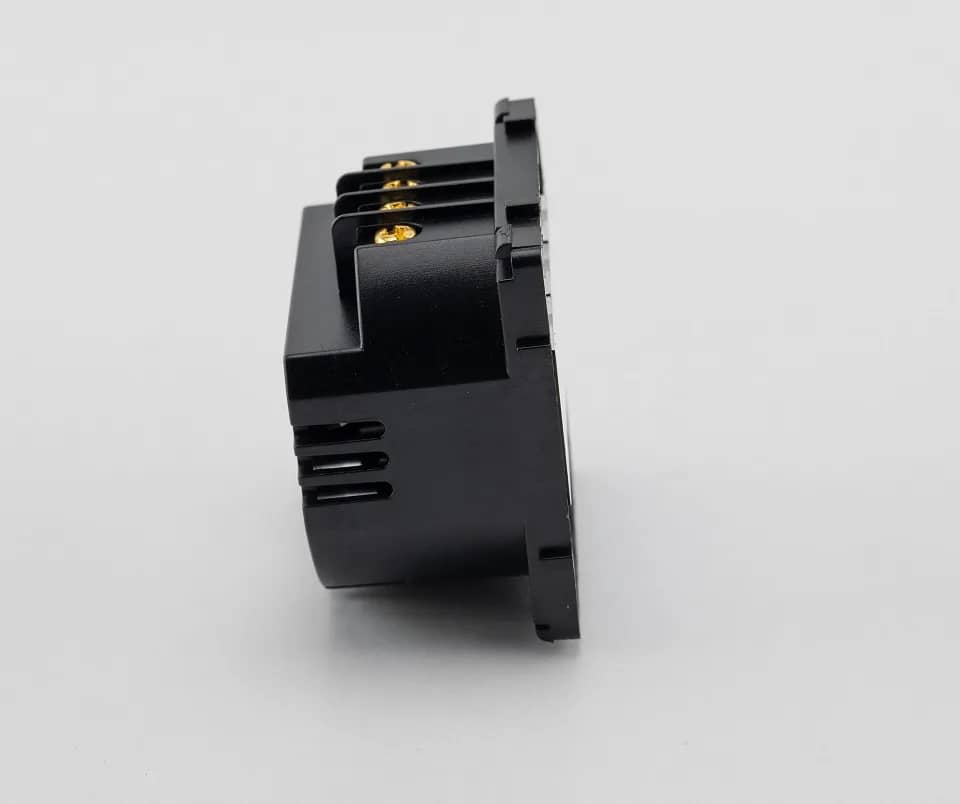

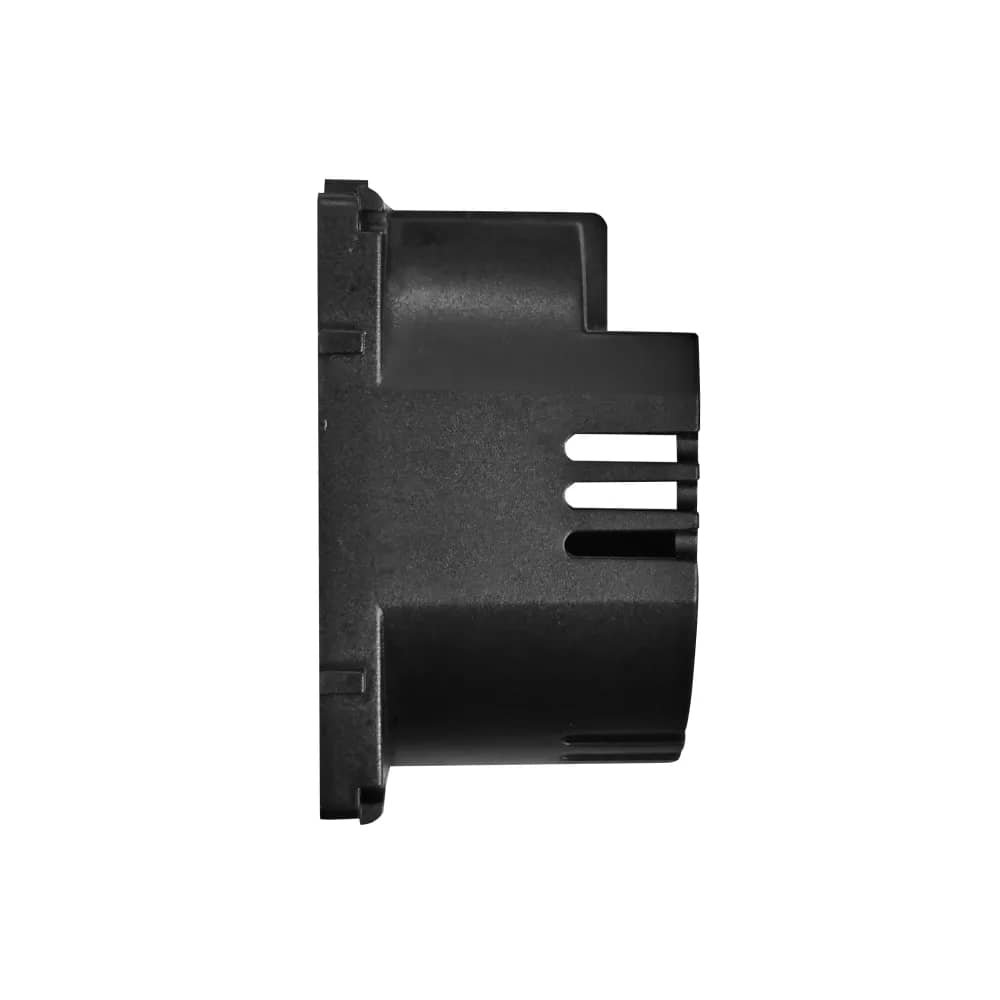

Dimensions
The module is secured with a screw fixing system.
- Screw fixing spacing: 60 mm
- Front module: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Height of rear housing: 49 mm
05
Not Included
- Glass panel
- Metal frame
