Luxion Double Switch Module
A 2-gang touch light switch module from LUXION, designed to control two separate lighting circuits.
Luxion
Luxion Silicone Touch Light Switch Module – 2 Gang (LX-ST-201)
SKU: LX-ST-201
AED 39
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang silicone touch light switch module, compatible only with Luxion glass frames and panels.
Product details
The Luxion 2 gang light switch module can be fitted on its own on a Luxion panel, or together with other Luxion sockets and light switches on a Luxion glass switch frame.
Compatible only with Luxion glass frames and panels.
Highlights
02

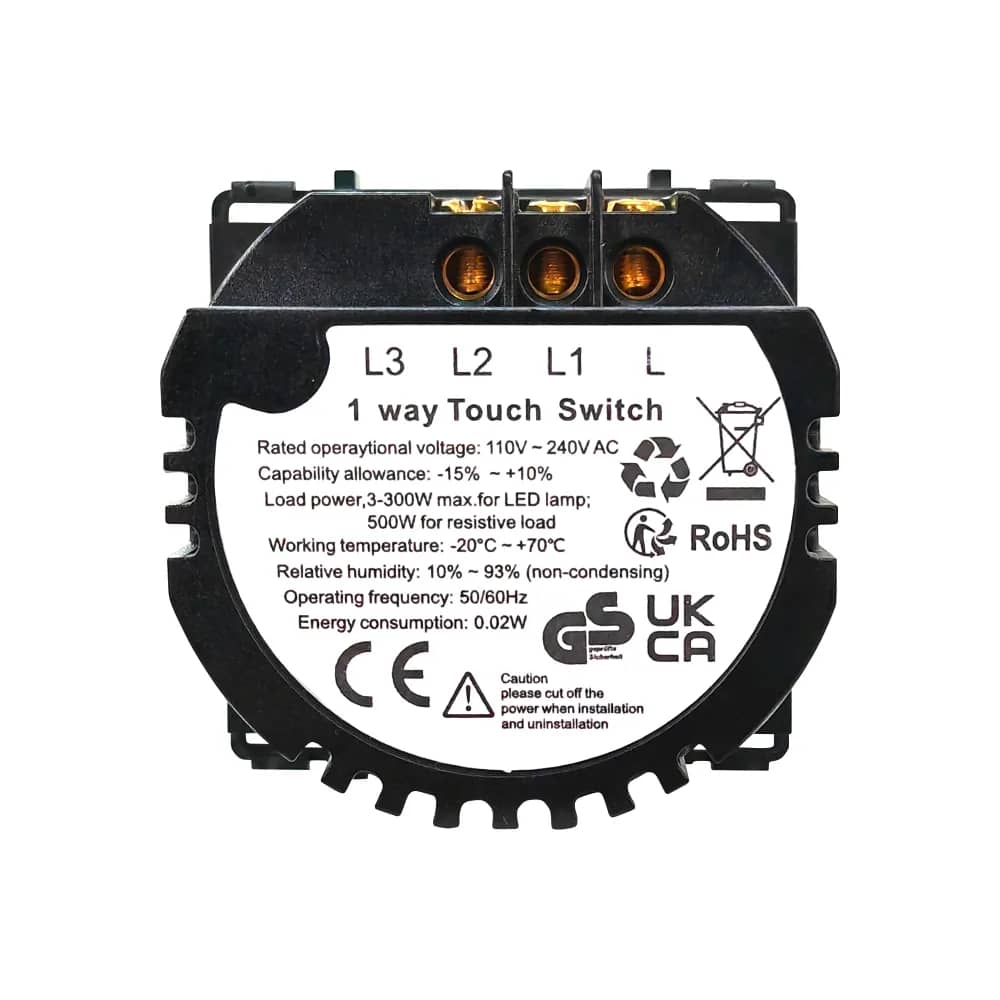

Installation Instructions – Wiring Diagram
Connect the live (L) wire to the L terminal and the neutral (N) wire to the lamps. Each lamp is connected to its own output terminal (L1 and L2).
- Live (L) → L terminal
- Neutral (N) → lamps
- Lamp 1 → L1
- Lamp 2 → L2
- Caution: cut off the power during installation and uninstallation
03

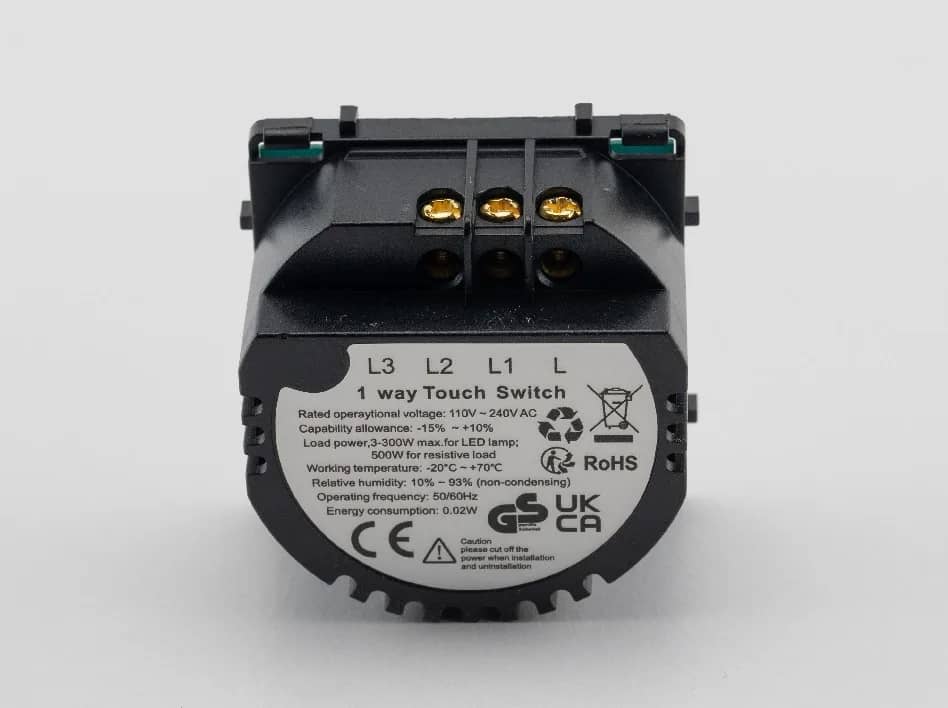

Technical Data
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamps; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
04

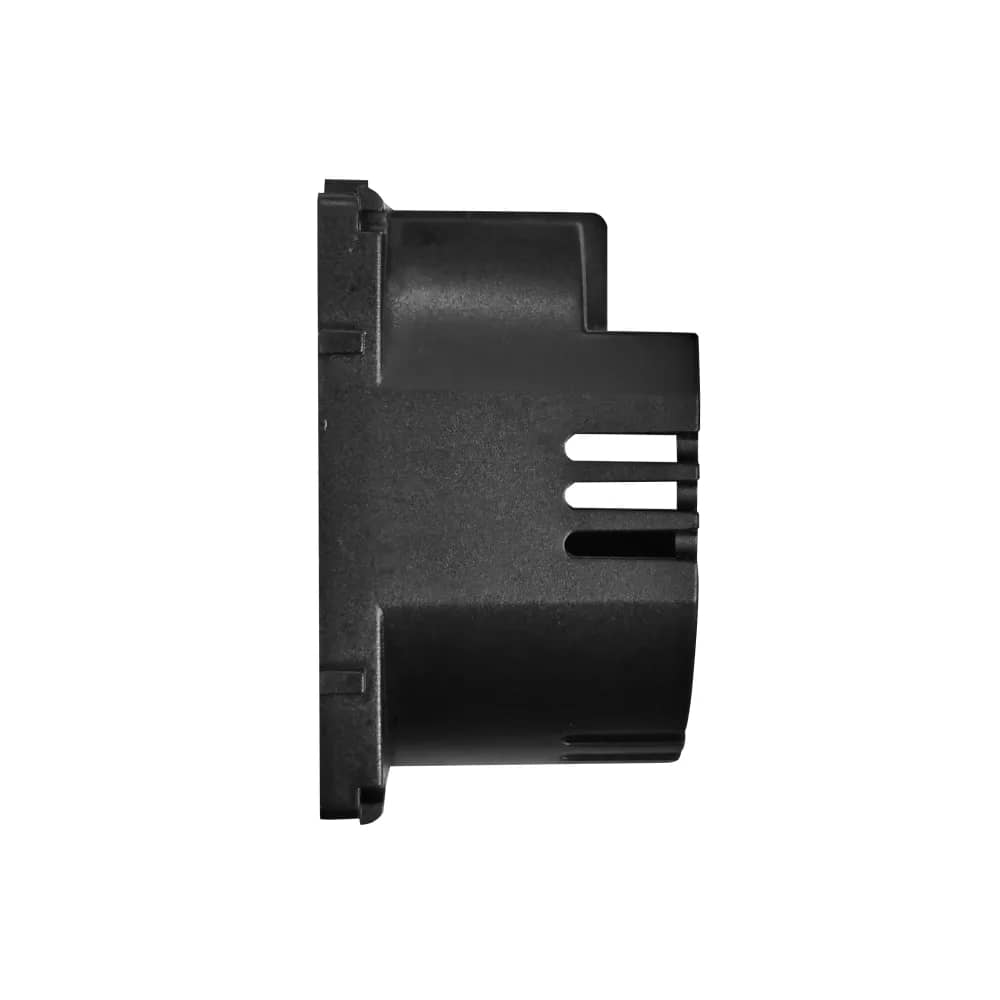

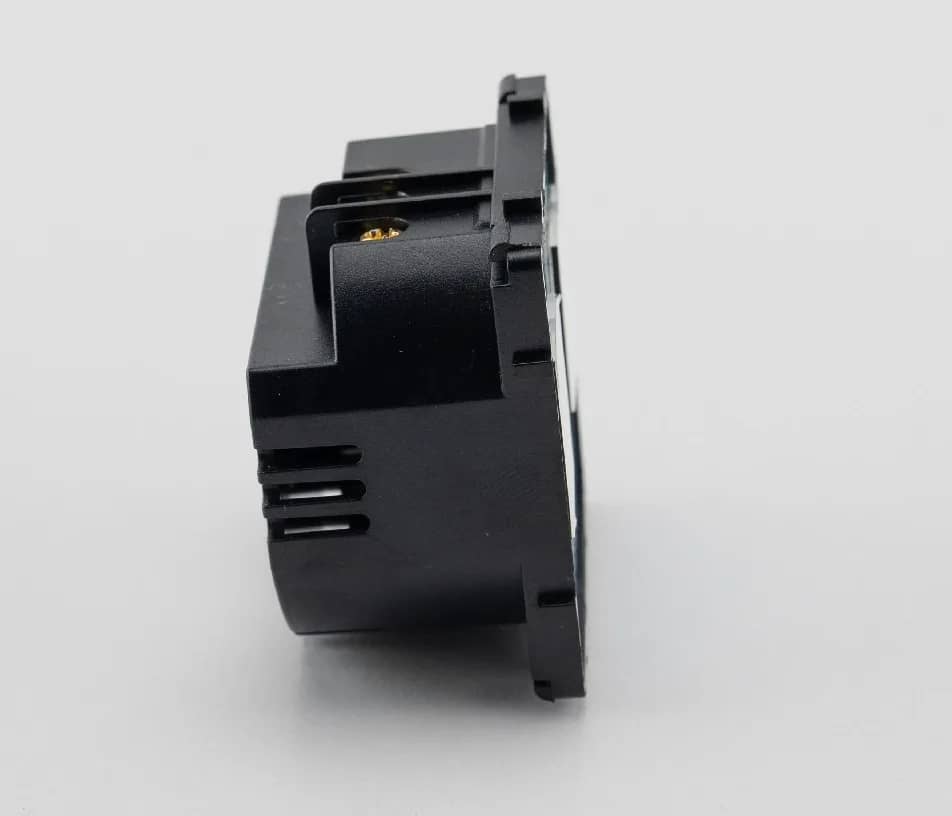

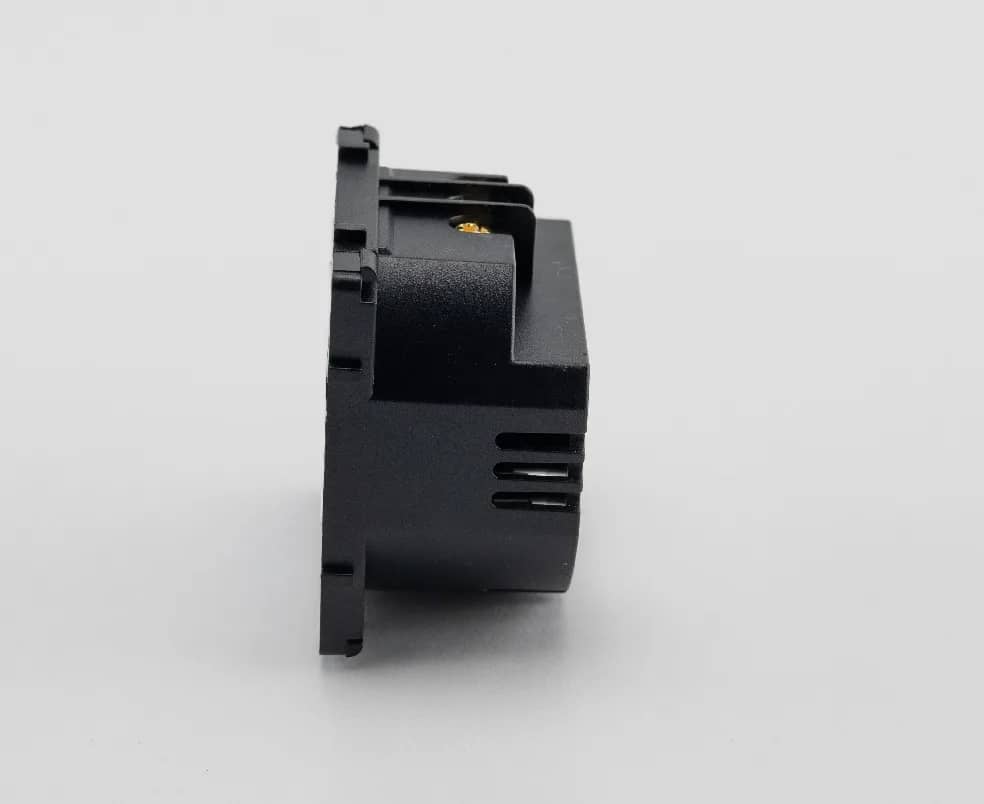

Dimensions
The module is secured with a screw fixing system.
- Front module: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Height of rear housing: 49 mm
- Screw fixing spacing: 60 mm
05
Not Included
The module is supplied without a front panel or frame.
- Glass panel (not included)
- Metal frame (not included)
