Luxion Silicone Touch Light Switch Module – 1 Gang (LX-ST-101)

LUXION Single Switch Module

Single touch light switch module from LUXION, designed to be fitted with a separate glass panel and metal frame.

• Model markings: ML-k101-2-V2, BG-ST101-1326
• Single touch switch with glass panel, 500W

Installation Instructions – Wiring Diagram

Connect the phase (L) to the L terminal and run the load (lamp) from the L1 terminal, with the lamp also connected to neutral (N). Disconnect the power supply before installation.

• Phase (L) → terminal L
• Lamp → terminal L1
• Neutral (N) → lamp

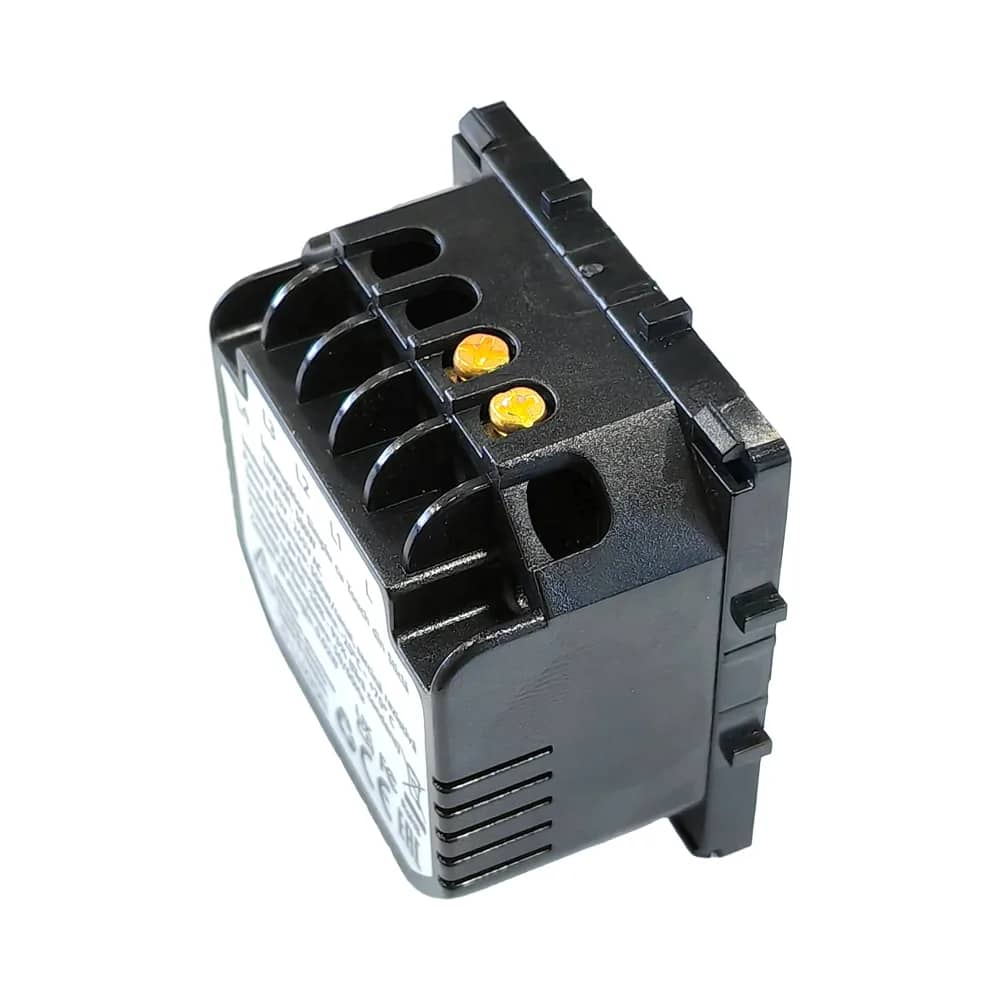

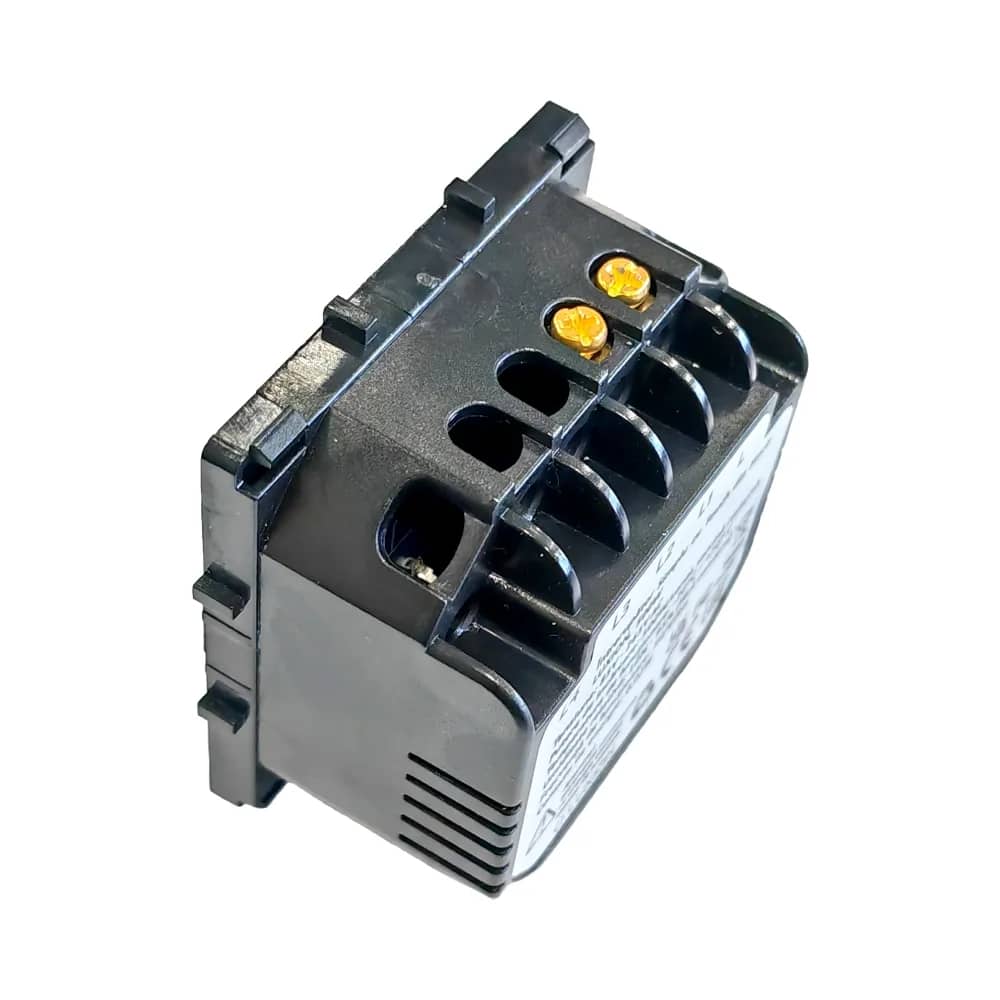

• Terminals on module: L3, L2, L1, L

Technical Data

• Voltage: 85V - 265V AC
• Load power: 500W/channel, resistive load
• Operating temperature: -20°C ~ +70°C
• Relative humidity: 10% - 93% (non-condensing)
• Operating frequency: 50/60Hz
• Power consumption: 0.02W
• Markings: UKCA, FC, RoHS, CE, EAC

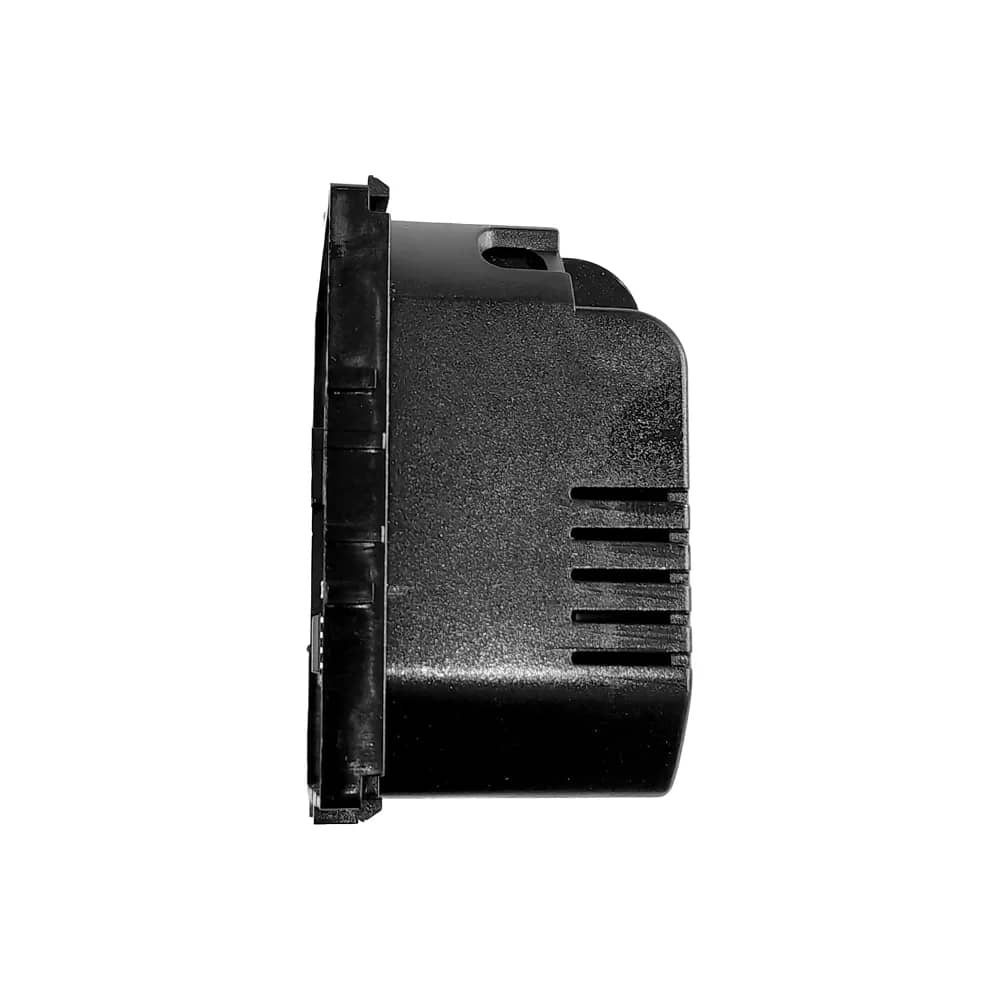

Dimensions

Screw fixing system with 60 mm mounting distance.

• Front module: 50 mm x 50 mm
• Depth: 5 mm + 26 mm
• Height of body: 49 mm
• Mounting distance: 60 mm

What's Not Included

The glass panel and metal frame are sold separately.

• Glass panel (not included)
• Metal frame (not included)
