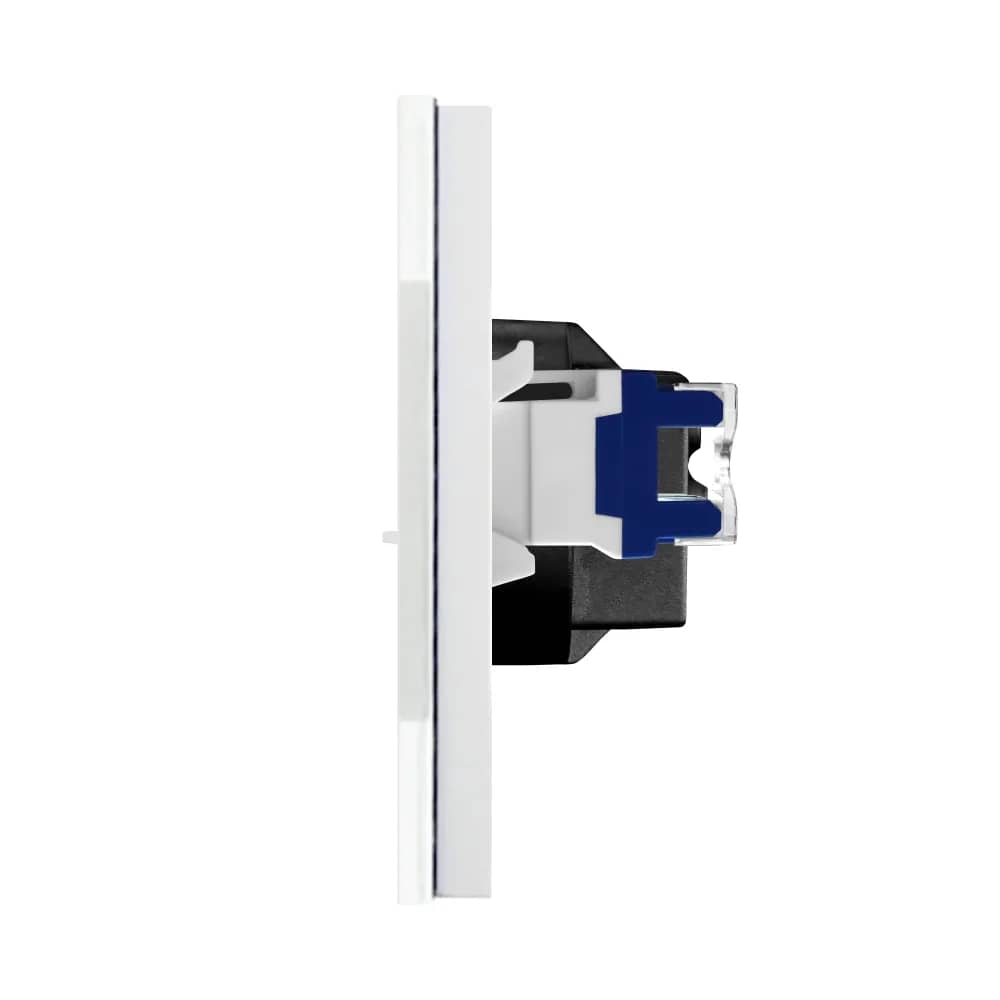

Luxion Schuko Socket + TV + Internet Media Socket with Glass Frame – White

1 / 4

Luxion

Luxion Schuko Socket + TV + Internet Media Socket with Glass Frame

SKU: LX-1MP010/26/25G-W

AED 69

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion combined Schuko, TV and internet socket with a tempered glass frame, child protection and a compact, minimalist design.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

The Luxion Schuko + TV + internet socket stands out for its compact, elegant and minimalist design. Luxion sockets are versatile and feature child protection, while the latest-generation technology helps save energy. The structure is durable and the sockets do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. This set combines a Schuko socket with a TV socket and an Internet socket, finished with a Luxion glass frame.

Schuko socket
TV socket
Internet socket
Glass frame
Shown in white, black, gold and grey frame finishes

Wiring Diagram

Connect the supply wires to the Schuko socket terminals as shown in the wiring diagram.

Live (L)
Neutral (N)
Earth

Structure

The set is made up of the following components:

Glass frame
Schuko socket + TV + Internet socket module
Plastic support
Metal frame

Dimensions

Width: 157 mm
Height: 86 mm
Front depth: 9 mm
Rear depth: 30 mm
Rear module height: 47 mm
Screw fixing system spacing: 60 mm

Installation Steps

1. Fix the media sockets onto the plastic support.
2. Position the sockets at the top.
3. Secure the sockets at the bottom.
4. Place the sockets onto the metal frame.
5. Position the sockets at the top.
6. Secure the sockets at the bottom.
7. Use the 2 screws to fix the frame.
8. Fit the glass frame – it clicks into place.
