Luxion Glass Frame Quadruple Socket – Schuko + TV + Internet – White

1 / 4

Luxion

Luxion Glass Frame Quadruple Socket – Schuko + TV + Internet

SKU: LX-4MP010/26/25G-W

AED 151

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion quadruple socket combining Schuko, TV and internet outlets in an elegant tempered-glass frame, with child protection.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

The Luxion quadruple Schuko + TV + internet socket stands out for its compact, elegant and minimalist design. Luxion sockets are versatile and feature child protection, while the latest-generation technology helps save energy. The structure is durable and the sockets do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

A Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. This quadruple Schuko socket with TV and Internet sockets comes with a Luxion glass frame.

4 Schuko sockets
TV socket
Internet socket
Glass frame

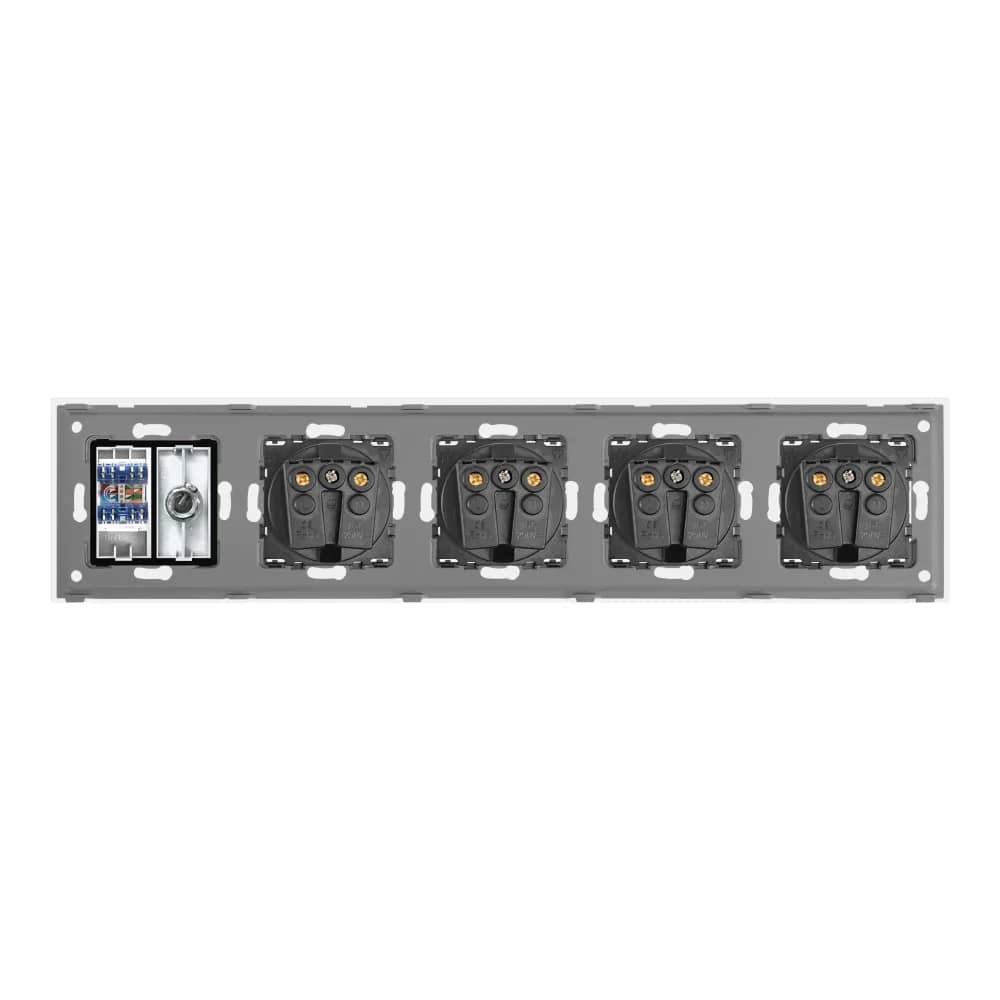

Structure

The unit is built from several layers that fit together for a neat finish.

Glass frame
Schuko socket modules + TV + Internet socket module
Plastic support
Metal frame
Screw fixing system with 60 mm spacing

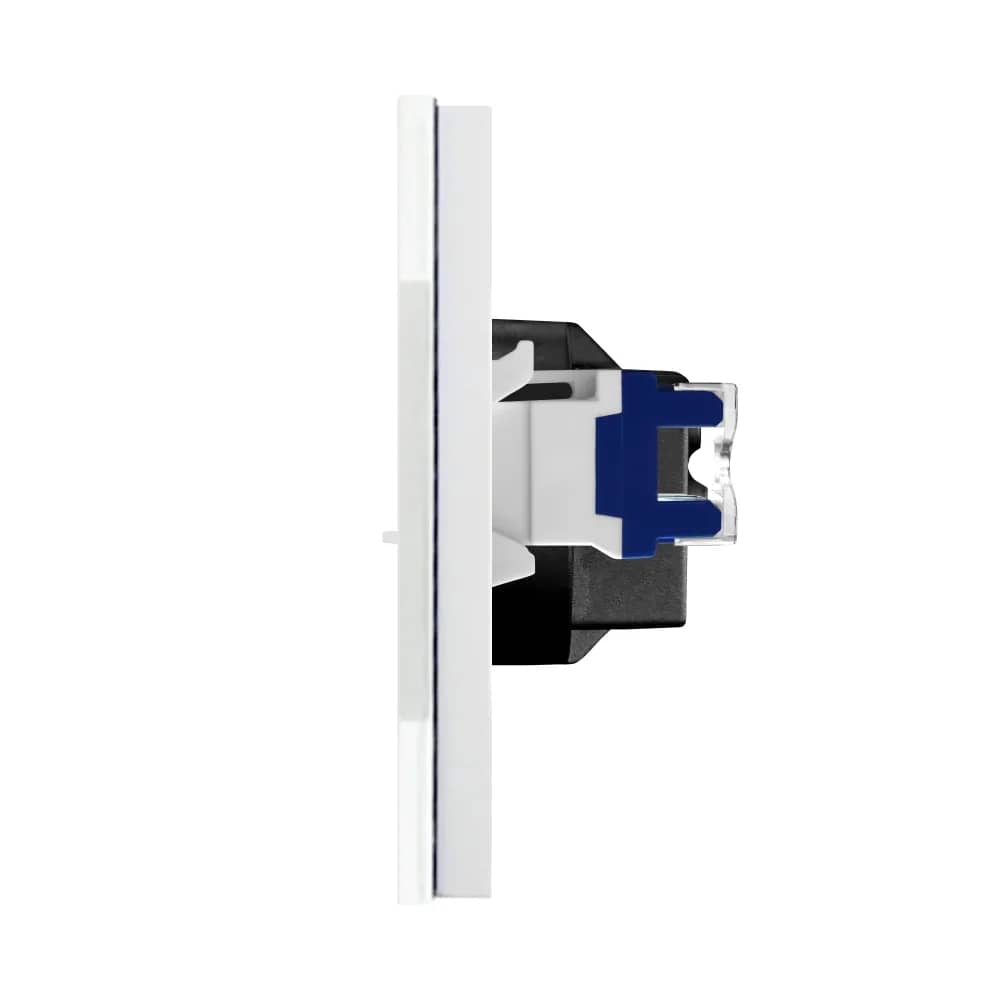

Dimensions

Length: 370 mm
Height: 86 mm
Front depth: 9 mm
Rear depth: 30 mm
Module height (rear): 47 mm
Fixing screw spacing: 60 mm

Wiring Diagram

Each of the four Schuko sockets connects to the phase, neutral and earth lines.

Phase (L)
Neutral (N)
Earth line

Installation Steps

1. Fit the media sockets onto the plastic support.
2. Position the sockets at the top.
3. Secure the sockets at the bottom.
4. Place the sockets onto the metal frame.
5. Position the sockets at the top.
6. Secure the sockets at the bottom.
7. Use the 2 screws to fix the frame.
8. Fit the glass frame – it clicks into place.
