LUXION RF433 Single Switch Module
A 1-gang (single) switch module from LUXION, working on RF433 remote control frequency.
- Type: 1Way Remote Switch
- Working frequency: 433.92 MHz
Luxion
Luxion RF433 Touch Light Switch Module – 1 Gang (LX-MT-R101)
SKU: LX-MT-R101
AED 83
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 1 gang RF433 touch light switch module for Luxion glass panels and frames, controllable by Luxion RF remote controls.
Product details
The Luxion 1 gang RF433 light switch module can be mounted on its own on a Luxion panel, or together with other Luxion sockets and light switches on a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
It can be controlled with the Luxion RF remote control or the RF switch-style remote control.
Please note: remote controls are sold separately!
Highlights
02

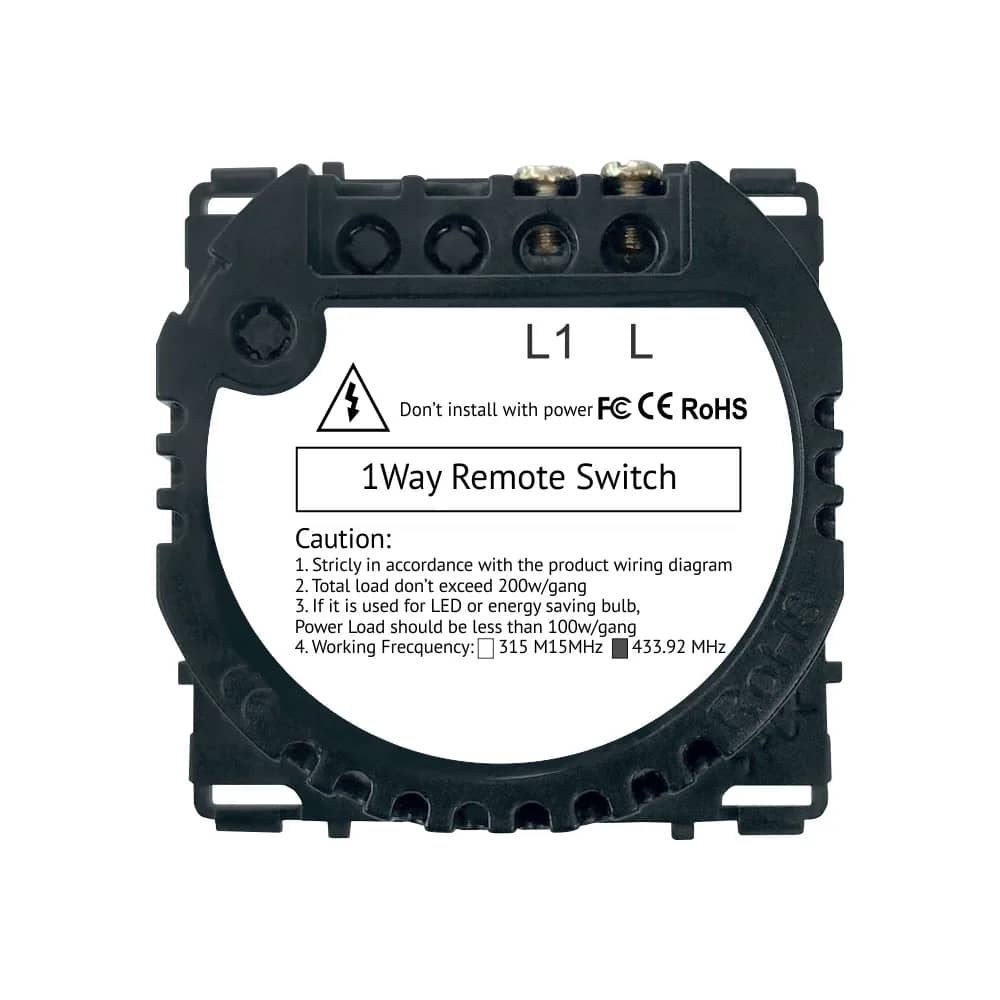

Installation Instructions
Wire the module according to the wiring diagram: the live wire (L) connects to the L terminal, and the L1 terminal goes to the light, which is then connected to neutral (N).
- L: Live input
- L1: Output to the light
- N: Neutral connects to the light, not to the module
- Do not install with power on
- Install strictly in accordance with the product wiring diagram
- Total load must not exceed 200 W per gang
- For LED or energy-saving bulbs, load should be less than 100 W per gang
03

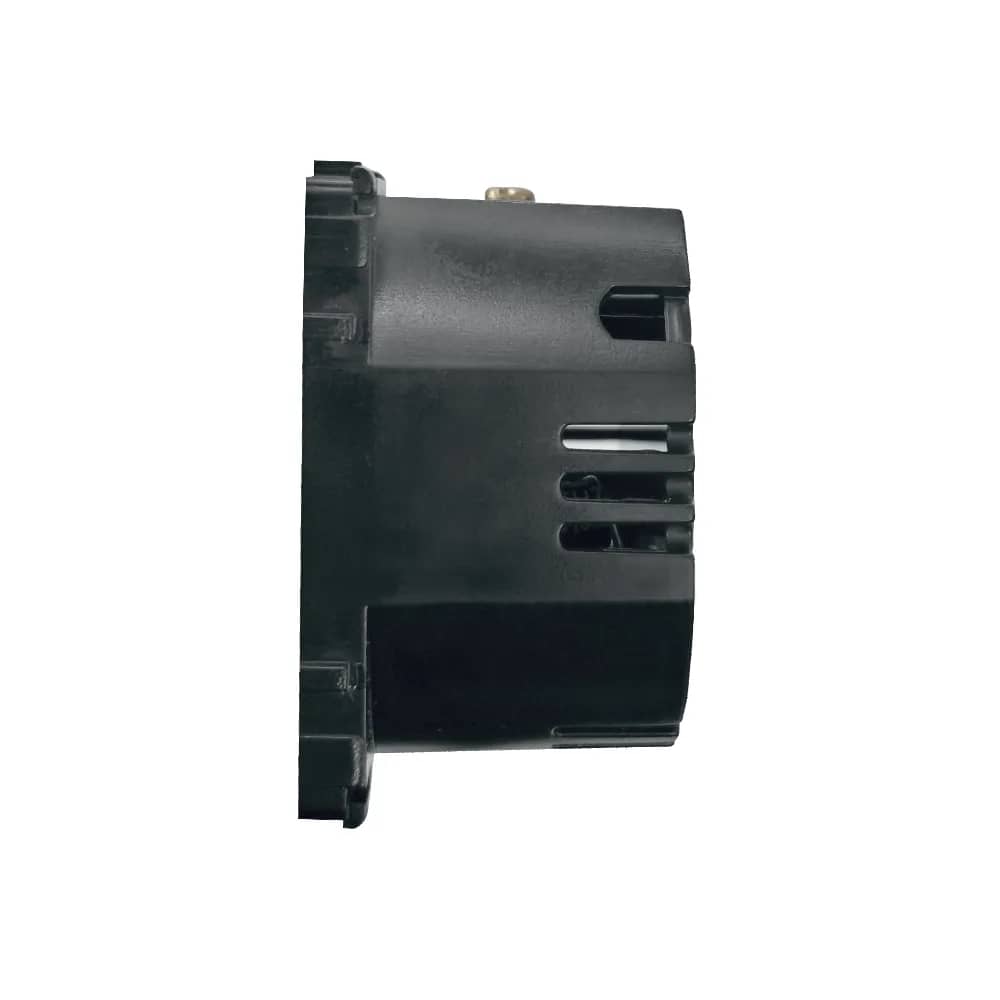

Dimensions
The module is fixed with a screw mounting system at 60 mm centres.
- Front: 50 mm x 50 mm
- Depth: 26 mm (plus 5 mm front)
- Height of body: 49 mm
- Screw fixing spacing: 60 mm
04
Not Included
The glass panel and the metal frame are not included with this module.
- Glass panel (not included)
- Metal frame (not included)
