Luxion PIR Motion Sensor Module
A PIR (passive infrared) body sensor switch module from the Luxion range, shown in white, black, gold and grey finishes.
Luxion
Luxion PIR Motion Sensor Module
SKU: LX-MP-SR01W
AED 34
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion PIR motion sensor module that wires like a light switch and turns the light on automatically when it detects movement in the dark.
Product details
The Luxion PIR motion sensor module is installed like a light switch, using the live wire and the wire to the light bulb. The light is activated by the sensor. The sensor only works when its surrounding area is dark. Luxion products stand out for their compact, elegant and minimalist design. They are practical, made from quality materials that last over time, and bring functionality and comfort to your home.
Highlights
02

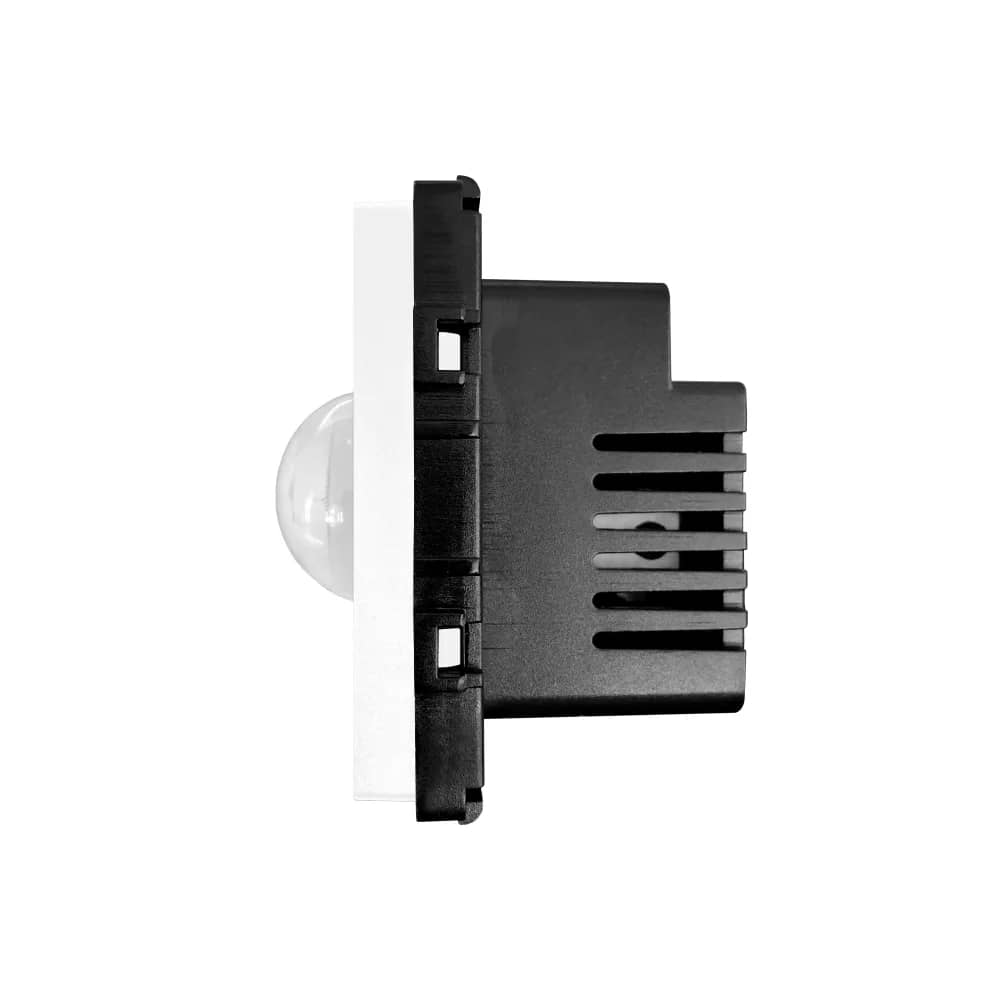

Installation and Wiring
Connect the live wire (L) to the L terminal and the lamp to the L1 terminal; the lamp's other lead goes to the neutral (N). Switch off the power before installation and removal.
- Live (L): to terminal L
- Load/lamp: to terminal L1
- Neutral (N): to the lamp
- Screw-fixing system with 60 mm fixing centres
03

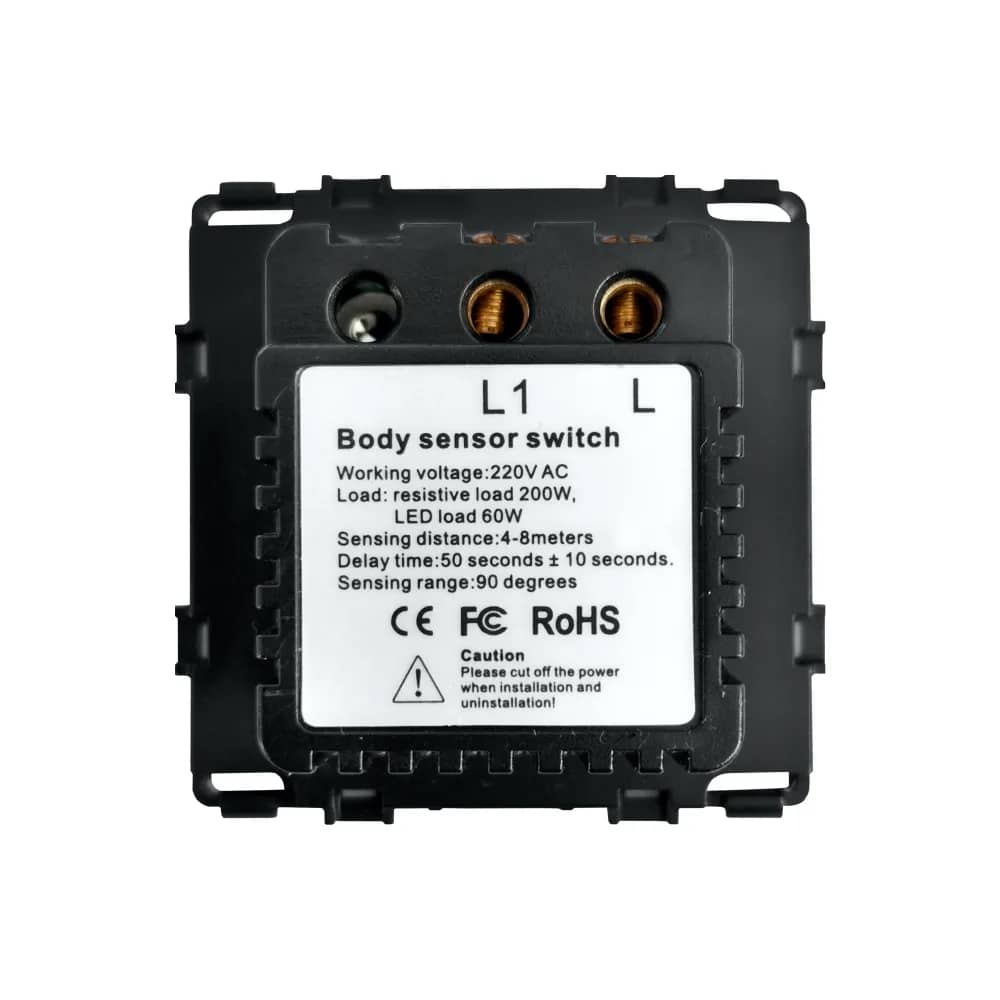

Technical Data
- Working voltage: 220V AC
- Load: resistive load 200W, LED load 60W
- Sensing distance: 4-8 metres
- Delay time: 50 seconds ± 10 seconds
- Sensing range: 90 degrees
- Markings: CE, FC, RoHS
04
Dimensions
- Front: 50 mm x 50 mm
- Depth: 18 mm + 20 mm
- Rear body height: 40 mm
- Fixing screw spacing: 60 mm
05
What's Not Included
The frames are sold separately.
- Glass frame (not included)
- Metal frame (not included)
