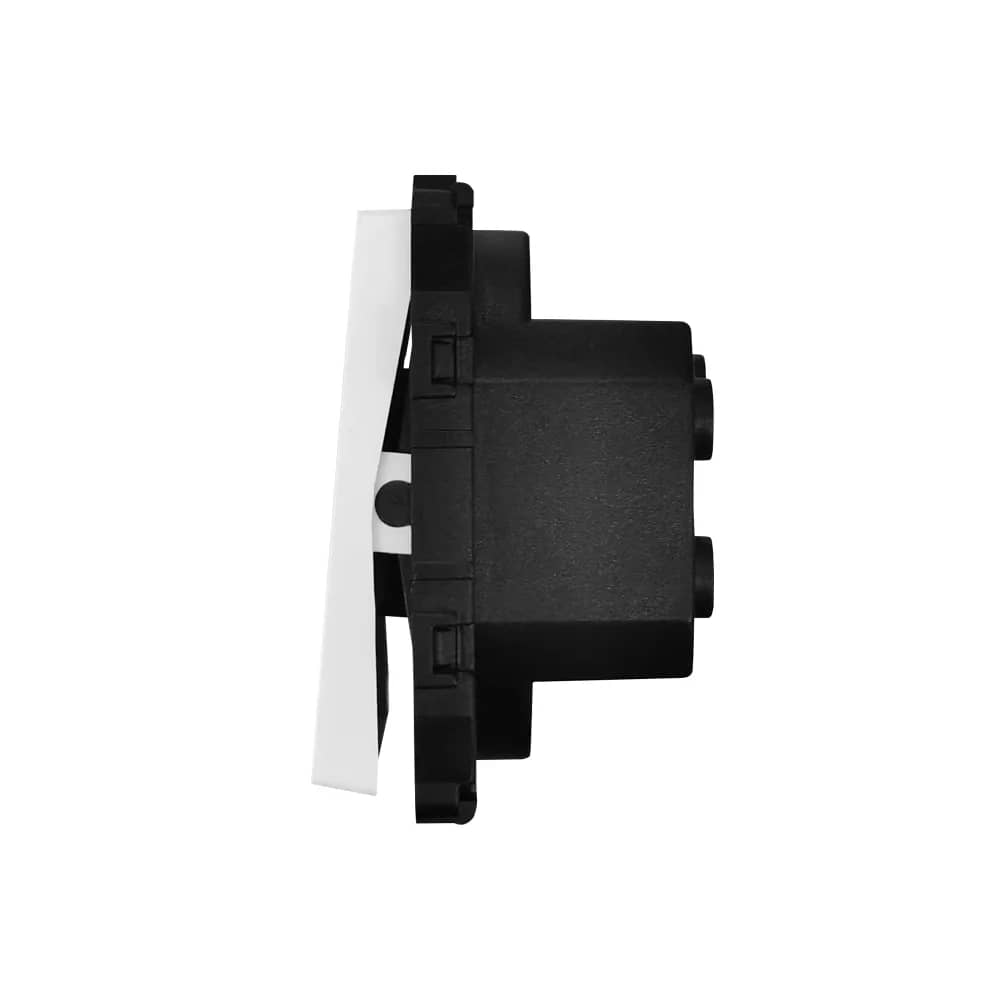

Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module – White — image 3

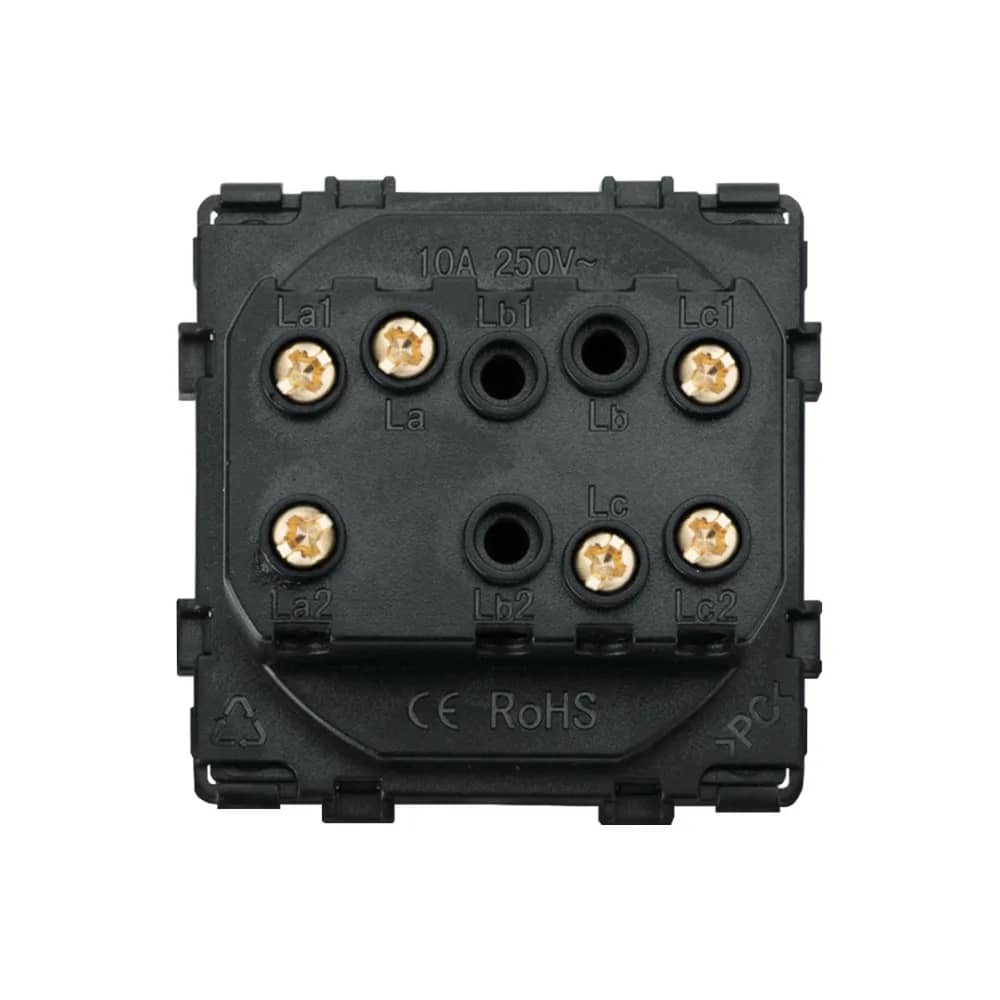

Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module – White — image 4
1/4
Luxion

Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module

SKU: LX-MP003W

AED 8

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion mechanical 1 gang intermediate (cross) switch module, for use with Luxion glass frames only.

Product details

The Luxion mechanical 1 gang intermediate (cross) light switch module features a compact, elegant and minimalist design. Its structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials.
It works together with Luxion mechanical 2-way (staircase) light switches.

Compatible only with Luxion glass frames

Highlights

Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module – Luxion Mechanical Intermediate (Cross) Switch Module
01

Luxion Mechanical Intermediate (Cross) Switch Module

A single mechanical intermediate (cross) switch module from the LUXION range, available in white, gold, black and grey finishes.

  • Single-gang mechanical intermediate (cross) switch
  • Available in white, gold, black and grey
Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module – Installation and Wiring
02

Installation and Wiring

The intermediate switch is installed between two two-way (stair) switches, letting you control one light from three or more locations. One or more intermediate switches can be added in series.

  • Diagram 1: two-way switch + intermediate switch + two-way switch (3 control points)
  • Diagram 2: two-way switch + two intermediate switches + two-way switch (4 control points)
  • Live (L) connects to the first two-way switch; Neutral (N) goes directly to the light
  • Screw fixing system, 60 mm fixing distance
Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module – Dimensions
03

Dimensions

  • Module front: 50 mm x 50 mm
  • Depth: 15 mm (front) + 20 mm (rear body)
  • Rear body height: 49 mm
  • Screw fixing spacing: 60 mm
Luxion Mechanical Intermediate (Cross) 1 Gang Light Switch Module – What's Not Included
04

What's Not Included

The glass frame and the metal mounting frame are not included and must be purchased separately.

  • Glass frame (not included)
  • Metal frame (not included)
