Luxion

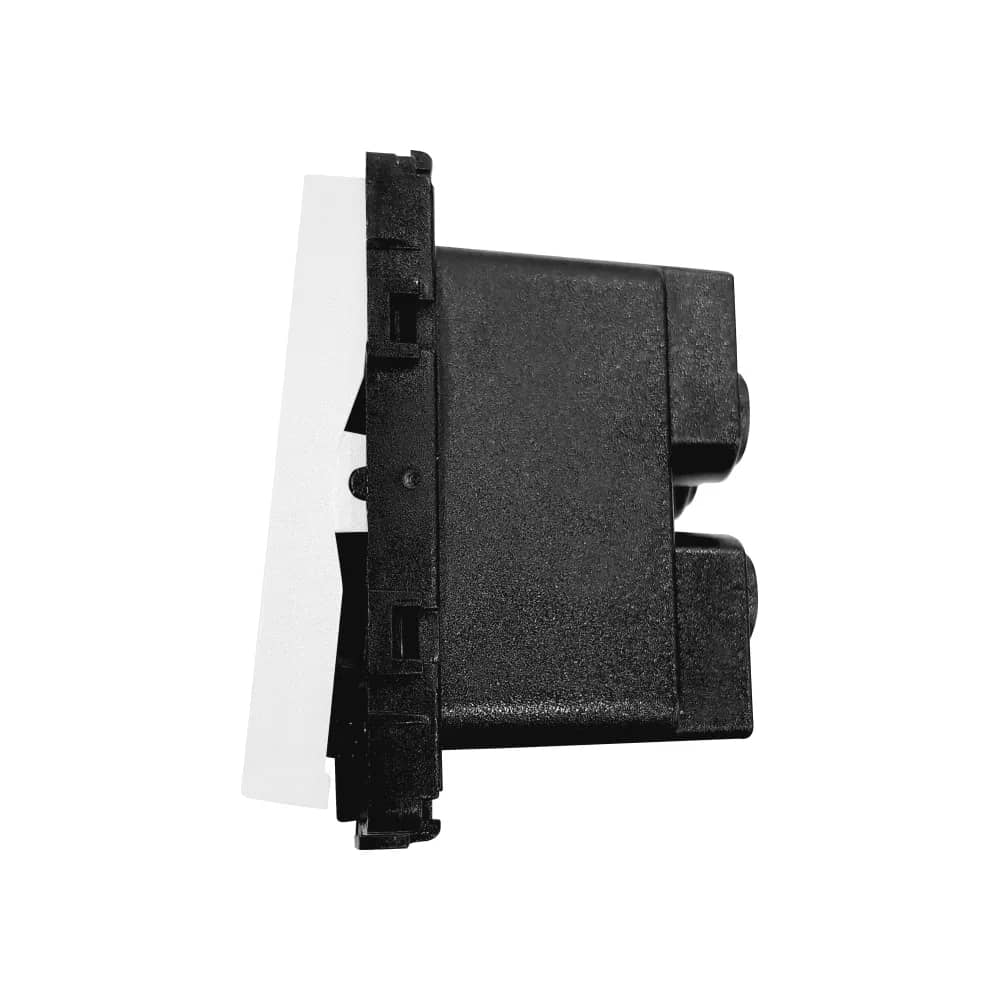

Luxion Mechanical Blinds Switch Module

SKU: LX-MP031W

AED 8

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, minimalist Luxion mechanical switch module for blinds, available in White, Gold, Grey and Black.

Product details

Luxion mechanical switch module for blinds. This product stands out for its compact, elegant and minimalist design. Luxion products are practical, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Mechanical Blinds Switch Module – Luxion Mechanical Blinds Switch Module
01

Luxion Mechanical Blinds Switch Module

A mechanical switch module for controlling blinds, with separate up and down keys.

  • Up (▲) and down (▼) keys
  • Available in white, black, gold and grey
Luxion Mechanical Blinds Switch Module – Dimensions
02

Dimensions

  • Module front: 50 mm x 50 mm
  • Depth: 15 mm + 25 mm
  • Rear body height: 40 mm
  • Screw fixing distance: 60 mm
Luxion Mechanical Blinds Switch Module – Installation
03

Installation

The module is secured with a screw fixing system. The glass frame and metal frame shown are not included.

  • Screw fixing system (60 mm spacing)
  • Glass frame not included
  • Metal frame not included
Luxion Mechanical Blinds Switch Module – Wiring
04

Wiring

Connect the live wire L (220V) to the L terminal, then connect the down (▼) and up (▲) outputs to their respective terminals, as shown in the wiring diagram.

  • L (220V): live input
  • ▼: down output
  • ▲: up output
