Luxion Mechanical 2-Way Light Switch Module – 1 Gang, 1M

SKU: LX-MP015W

AED 8

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Compact Luxion 1 gang 2-way (staircase) mechanical switch module, 1M size, available in White, Black, Grey and Gold.

Product details

Luxion products stand out for their compact, elegant and minimalist design. They are practical, made from quality materials, built to last, and bring functionality and comfort to your home.

Compatible only with Luxion glass frames

Highlights

Luxion 1M Mechanical 2-Way Switch Module

A single mechanical two-way (staircase) switch module in a 1M format, designed to control one light from two locations.

Available in white, black, gold and grey finishes

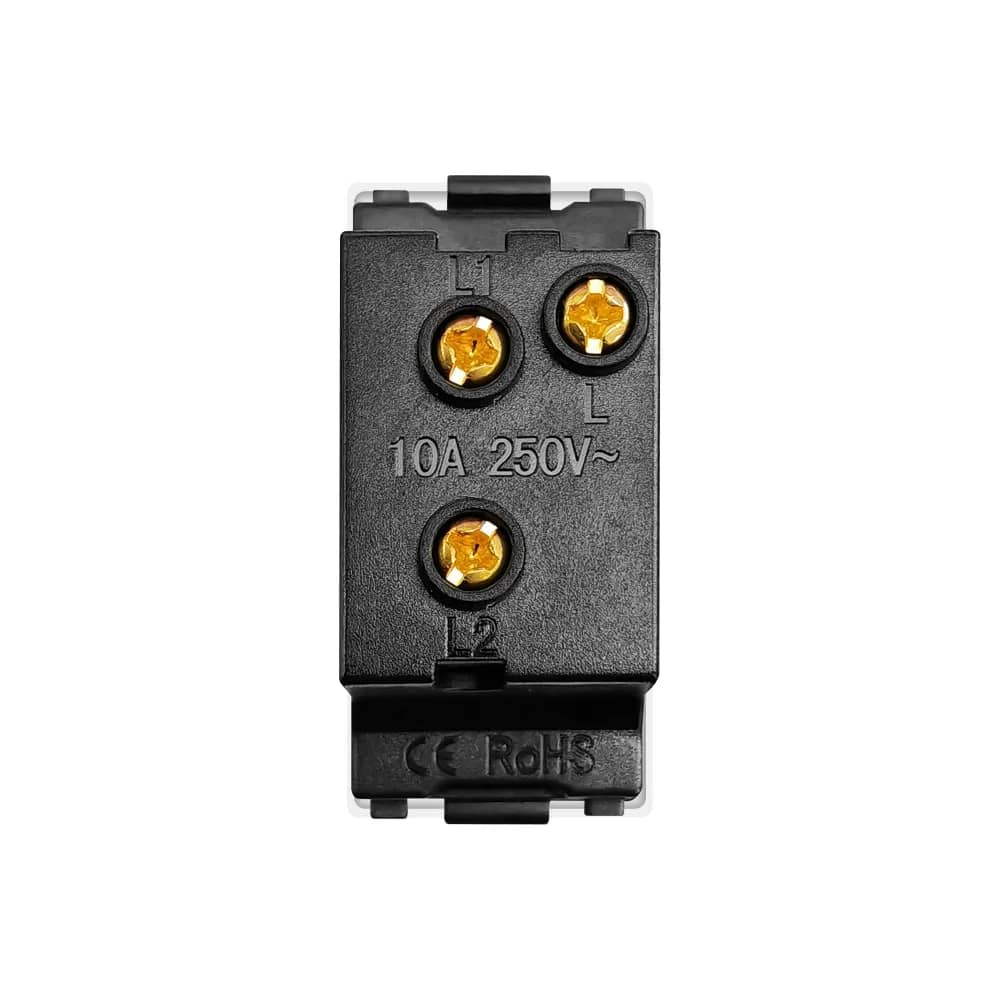

Rated 10A 250V~
CE and RoHS markings on the module

Installation: Wiring Diagram

Two-way (staircase) wiring: two modules are linked through their L1 and L2 terminals so the same light can be switched from either point.

Phase (L) connects to the L terminal of the first switch
L1 and L2 terminals of both switches are linked to each other
The L terminal of the second switch connects to the light
Neutral (N) connects directly to the light

Dimensions

Module front: 23.5 mm x 47 mm

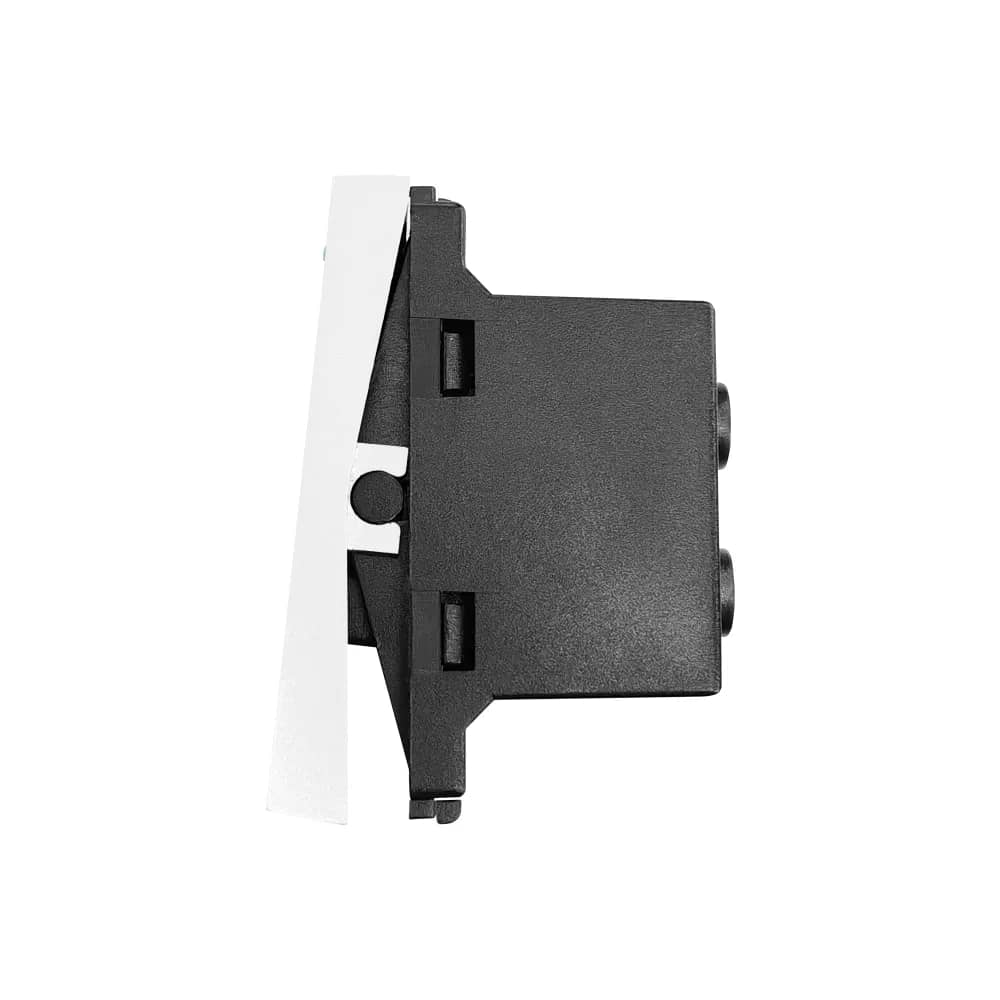

Depth: 15 mm (front) + 20 mm (body)
Height: 47 mm
Screw fixing system: 60 mm spacing

What's Not Included

The glass frame and the metal frame shown in the dimension diagram are not included.

In detail

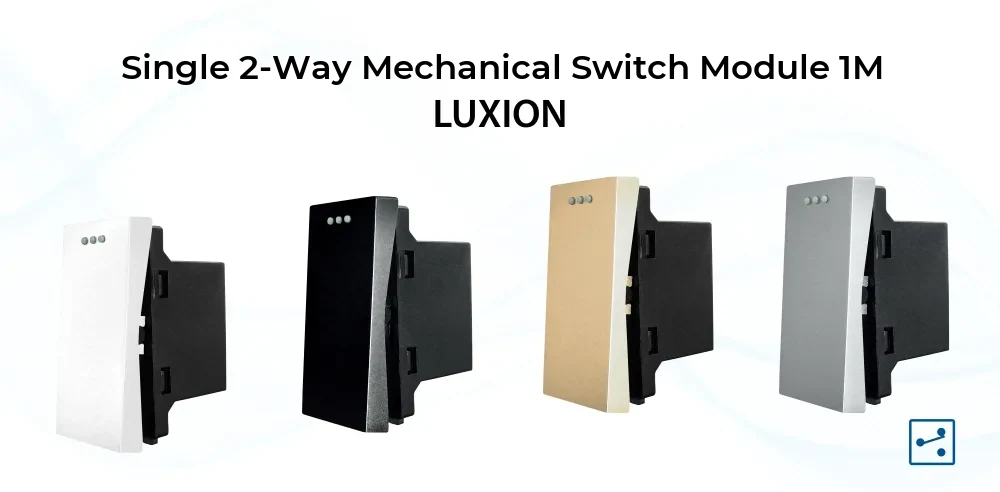

Luxion Mechanical 2-Way Light Switch Module – 1 Gang, 1M – detail 1
