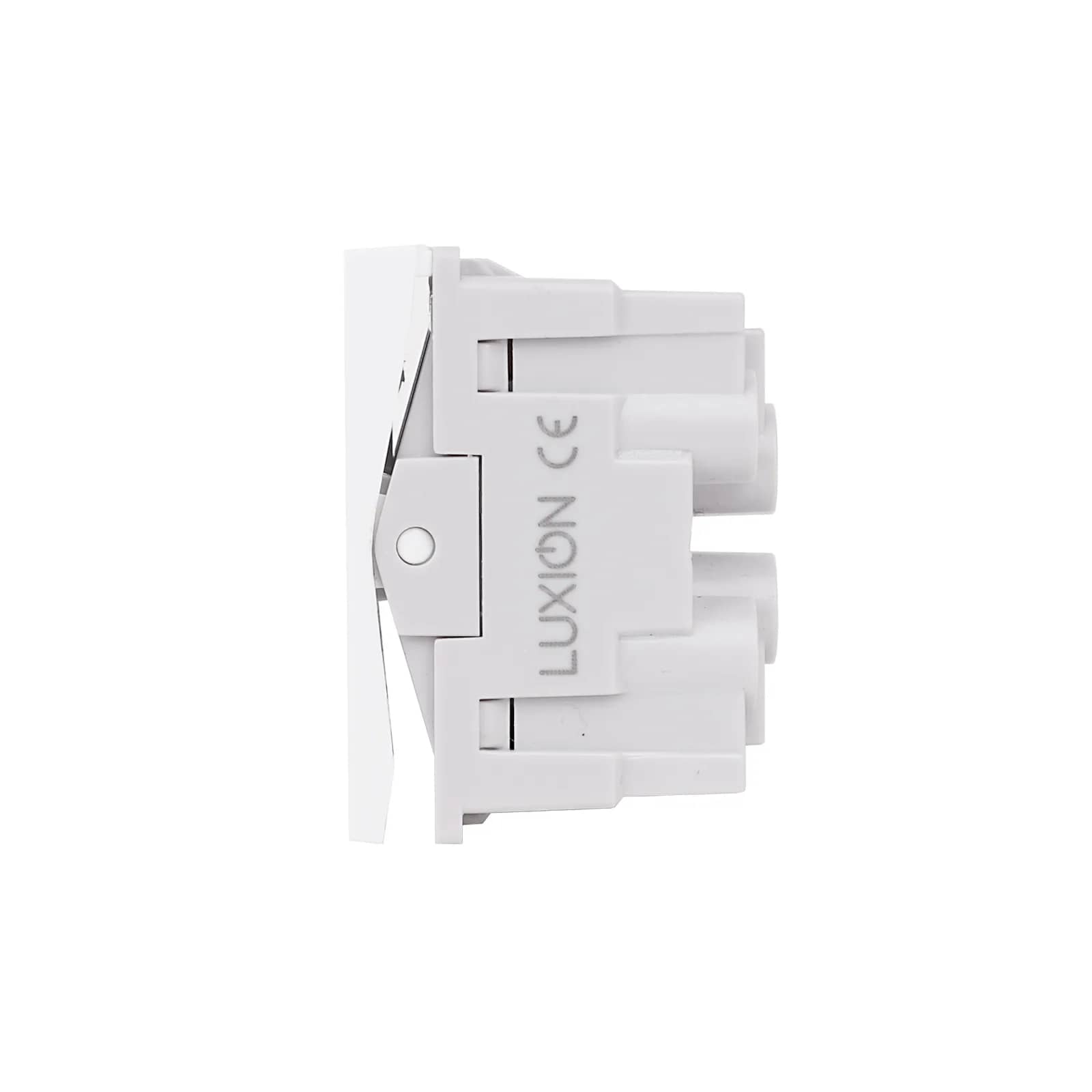

Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard – White — image 3

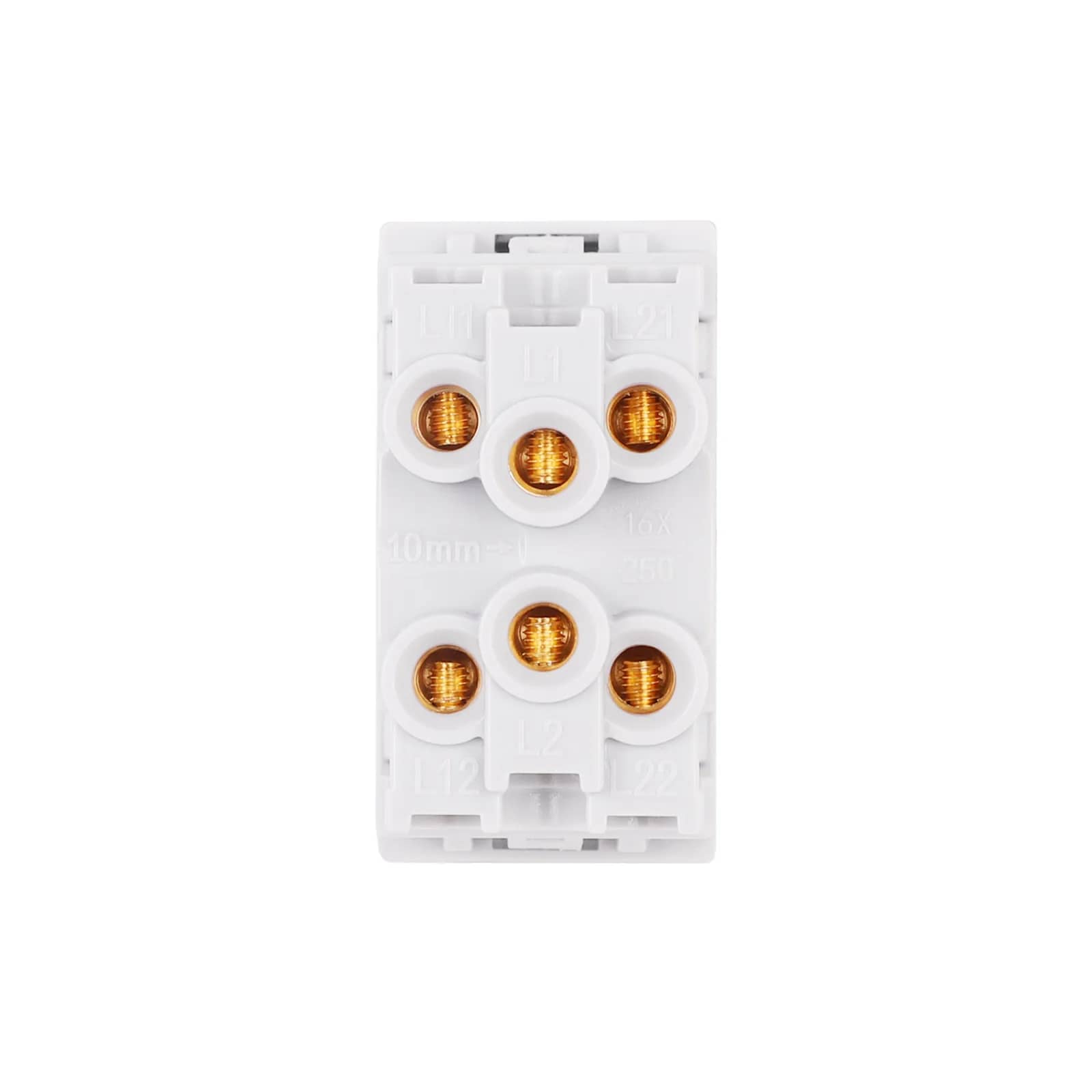

Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard – White — image 4
1/4
Luxion

Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard

SKU: LXI-012W

AED 14

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 2 gang 2-way mechanical switch module, 2M / 1M, Italian standard – for Luxion glass frames of 3, 4 or 6 modules.

Product details

Luxion mechanical 2-way (staircase) 2 gang light switch module, 2M / 1M, Italian standard, designed especially for modern interiors. This module combines sophisticated design with durable construction, making it the ideal solution for a well-organised, beautiful space. Whether installed on its own or alongside other Luxion modules, it adds extra style and practicality to your home. Elegance and functionality in a single product.

Compatible only with Luxion glass frames, Italian standard, of 3 / 4 / 6 modules.

Compatible back boxes are available in our range.

Highlights

Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard – Luxion Double 2-Way Switch Module LXI-012
01

Luxion Double 2-Way Switch Module LXI-012

Mechanical double 2-way (staircase) switch module, 2M / 1M, from LUXION, model LXI-012. Designed for flush mounting in a modular back box.

  • Function: double 2-way (staircase) switch
  • Format: module
  • Child protection/earthing: yes
  • Colours: white, black, grey, gold
Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard – General Characteristics
02

General Characteristics

  • Product type: Electric
  • Function: Double 2-way (staircase) switch
  • Format: Module
  • Child protection/earthing: Yes
  • Panel/Frame: Tempered glass
  • Marking: No
  • Colours: White/Black/Grey/Gold
Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard – Technical Data
03

Technical Data

  • Mounting: Flush / modular back box
  • Voltage: 100-250V
  • Max. power: 3500W
  • Rated current: 16A
  • Terminal connections: Screw terminals
  • Conductors: 2 x 1.5mm (Fy, MyF)
  • Conductor stripping length: 11mm
  • Material: Flame-retardant PVC + copper
  • Width: 23.5mm
  • Height: 47mm
  • Depth: 34mm
  • Protection: IP44
  • Certification: RoHS, CE
  • Warranty: 36 months
Luxion Mechanical 2-Way (Staircase) 2 Gang Light Switch Module 2M / 1M – Italian Standard – Wiring
04

Wiring

The banner includes a wiring diagram showing two switch modules connected in a 2-way (staircase) configuration on a 220V supply.
