Luxion Mechanical 2 Gang Light Switch Module – White

1 / 4

Luxion

Luxion Mechanical 2 Gang Light Switch Module

SKU: LX-MP004W

AED 7

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion mechanical 2 gang light switch module in White, Gold, Grey or Black – for Luxion glass frames only.

Product details

Luxion mechanical 2 gang light switch module with a compact, elegant and minimalist design. The structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials.

Compatible only with Luxion glass frames

Highlights

LUXION Double Mechanical Switch Module

A two-gang mechanical light switch module from the LUXION range, shown in white, black, gold and grey finishes.

Two independent rocker switches
Available colours: white, black, gold, grey

Installation Instructions

The wiring diagram shows the phase (L) connected to the module and each switch controlling a separate light, with the neutral (N) running directly to both lights.

Neutral (N): connects directly to the lights
Phase (L): connects to the switch module
Each gang switches one light circuit

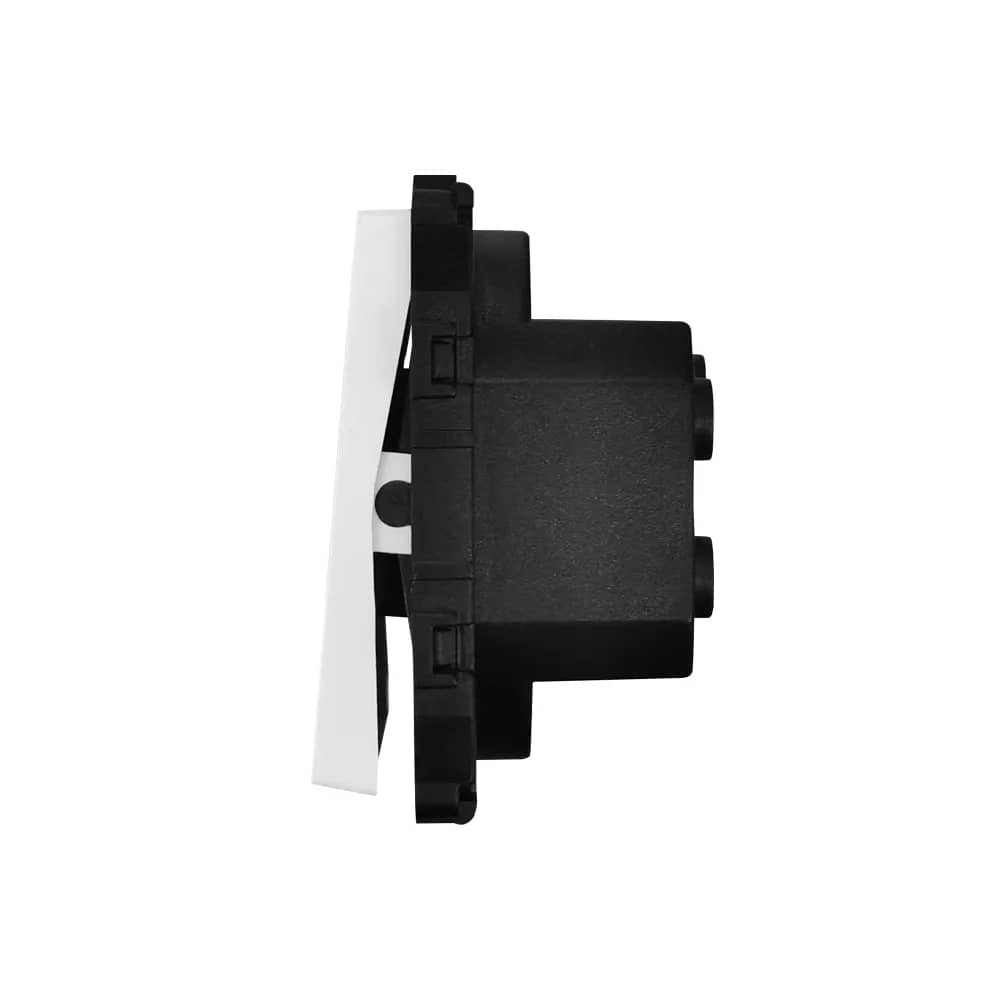

Dimensions

The module is fixed with a screw mounting system. The glass frame and metal frame are not included.

Module front: 50 mm x 50 mm
Depth: 15 mm + 20 mm
Rear body height: 49 mm
Screw mounting spacing: 60 mm
Rating marked on module: 10A 250V~

Not Included

Glass frame
Metal frame
