LUXION Single Mechanical Switch Module
A single mechanical switch module from the LUXION range, shown in white, gold, black and grey finishes.
- Colour options shown: white, gold, black, grey
Luxion
Luxion Mechanical 1 Gang Push Button Switch Module with Reset / Return
SKU: LX-MP008NW
AED 7
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact Luxion mechanical 1 gang switch module with reset/return action, durable and fade-resistant, for Luxion glass frames.
Product details
The Luxion mechanical 1 gang switch module with reset / return function features a compact, elegant and minimalist design. Its structure is durable and the products do not fade over time. It is a practical product, made from quality materials built to last.
Compatible only with Luxion glass frames
Highlights
02

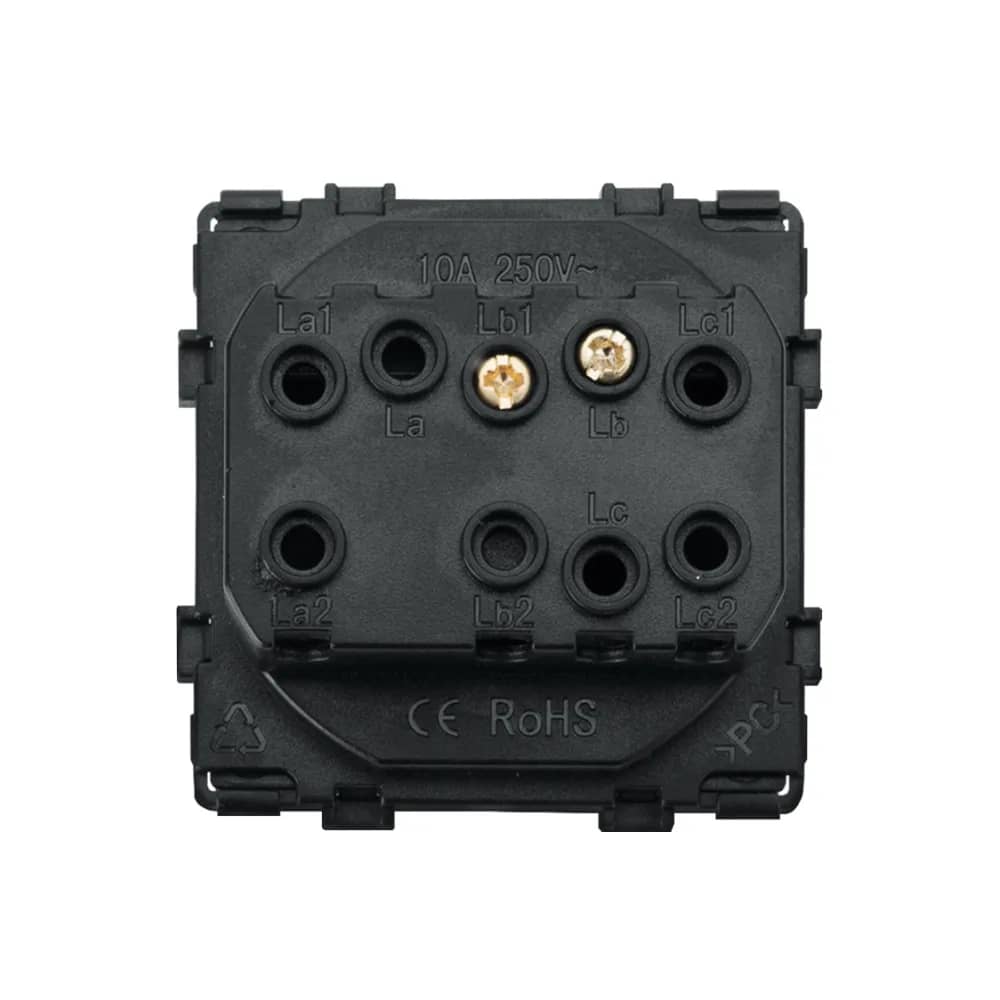

Installation Instructions – Wiring Diagram
Connect the live (L) wire to the switch module; the switched output runs from the module to the light fitting. The neutral (N) wire goes directly to the light fitting.
- Neutral (N): connected directly to the light
- Live (L): connected to the switch module
- Switched output: from the module to the light
03
Dimensions
The module is secured with a screw fixing system with 60 mm between the fixing points.
- Module front: 50 mm x 50 mm
- Depth: 15 mm (front) + 20 mm (rear)
- Rear housing height: 49 mm
- Screw fixing spacing: 60 mm
04
Not Included
Frames are sold separately.
- Glass frame (not included)
- Metal frame (not included)
