01
Compact, Elegant and Minimalist Design
The Luxion HDMI socket with glass frame brings a compact, elegant and minimalist look to your walls. Enjoy the versatility of the new Luxion products.
Luxion
Luxion HDMI Socket with Glass Frame
SKU: LX-MP022G-W
AED 55
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, elegant Luxion HDMI media socket with a glass frame, child protection and a durable, fade-resistant finish in four colours.
Product details
Luxion sockets stand out for their compact, elegant and minimalist design. They are versatile, feature child protection, and their latest-generation technology supports energy saving. The structure is durable, and the sockets do not discolour over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02

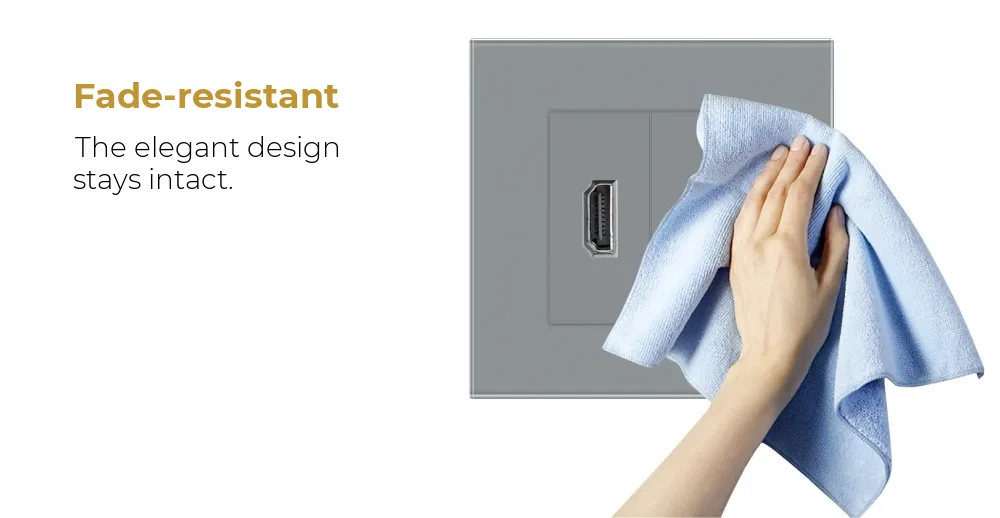

Fade-Resistant Finish
The glass frame does not discolour, so its elegant design stays intact.
03

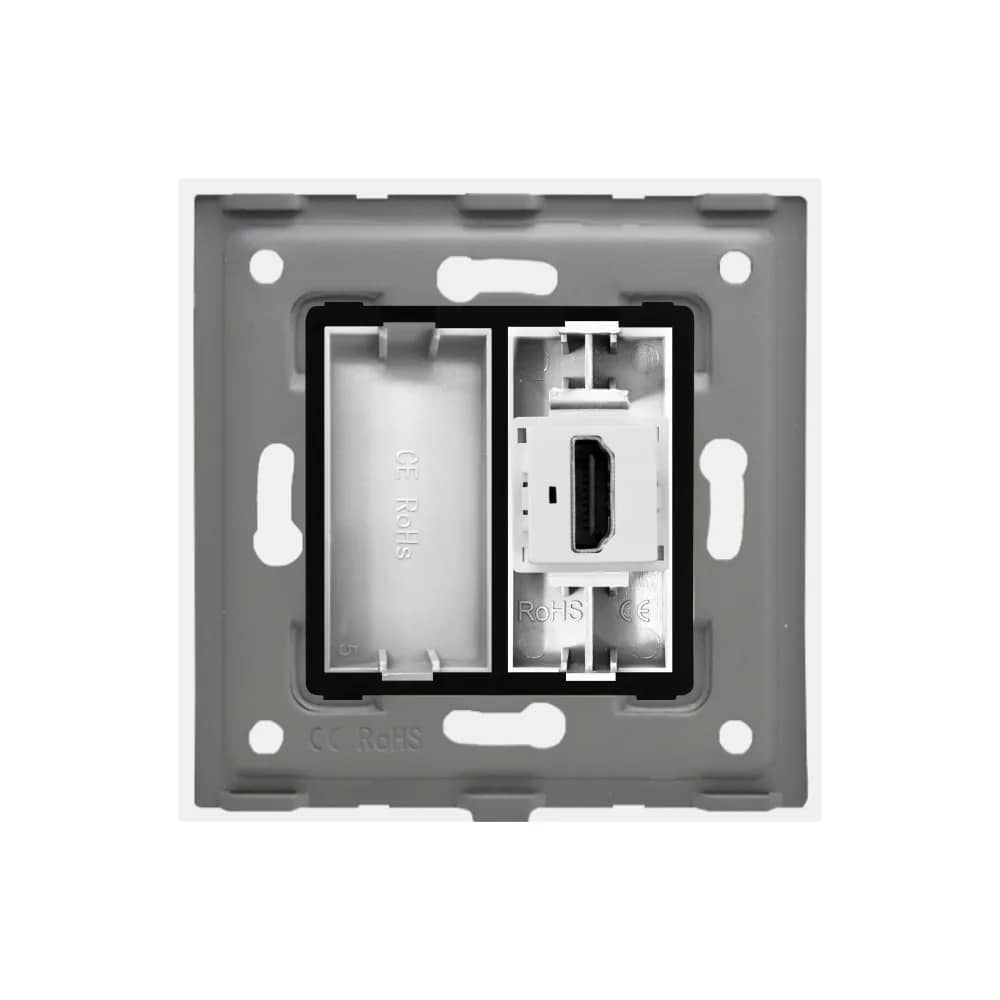

Structure
The socket is made up of the following components:
- Glass frame
- HDMI socket module + blank
- Plastic support
- Metal frame
04

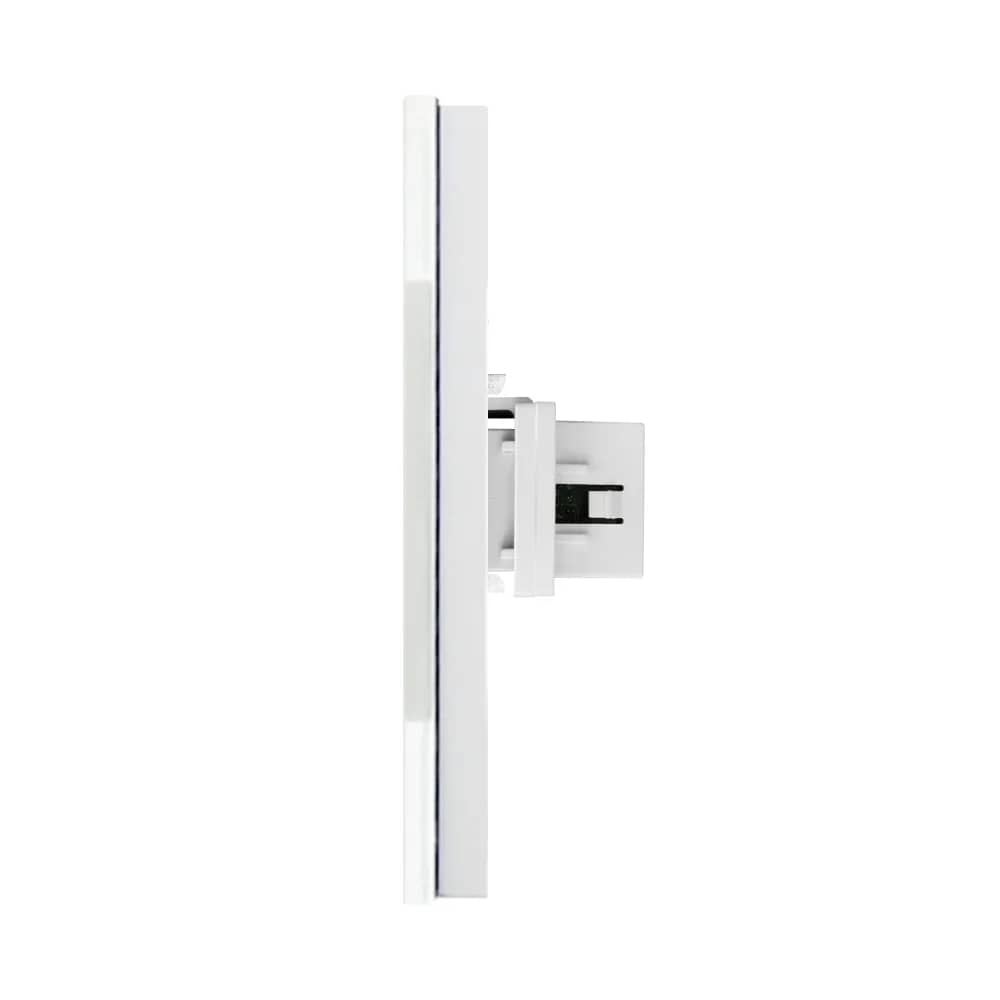

Dimensions
- Frame size: 86 mm x 86 mm
- Screw fixing system spacing: 60 mm
- Depth measurements: 9 mm, 15 mm, 4 mm
05
Installation Diagram
Follow these steps to install the socket:
- 1. Fix the media sockets onto the plastic support.
- 2. Position the sockets at the top.
- 3. Secure the sockets at the bottom.
- 4. Place the sockets on the metal frame.
- 5. Position the sockets at the top.
- 6. Secure the sockets at the bottom.
- 7. Use the 2 screws to fix the frame.
- 8. Fit the front panel (it clicks into place).
