LUXION Double Switch Module RF433
Double (2-gang) light switch module from LUXION with RF433 remote control capability.
Luxion
Luxion 2 Gang Touch Light Switch Module with RF433 – LX-MT-R201
SKU: LX-MT-R201
AED 94
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang touch light switch module with RF433 control, for Luxion glass panels and frames. Remote controls sold separately.
Product details
The Luxion 2 gang RF433 light switch module can be fitted on its own in a Luxion panel, or together with other Luxion sockets and light switches in a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
It can be controlled from the Luxion RF remote control or the RF switch-type remote control.
Please note: remote controls are sold separately!
Highlights
02
Installation – Wiring Diagram
Connect the live (L) wire to terminal L and each light to terminals L1 and L2; the lights' neutral (N) returns directly to the neutral line.
- L: Live (phase) input
- L1: Output to light 1
- L2: Output to light 2
- N: Neutral connected to the lights
- Do not install with power on
- Install strictly in accordance with the product wiring diagram
- Total load must not exceed 200 W/gang
- For LED or energy-saving bulbs, load should be less than 100 W/gang
- Working frequency: 433.92 MHz
03

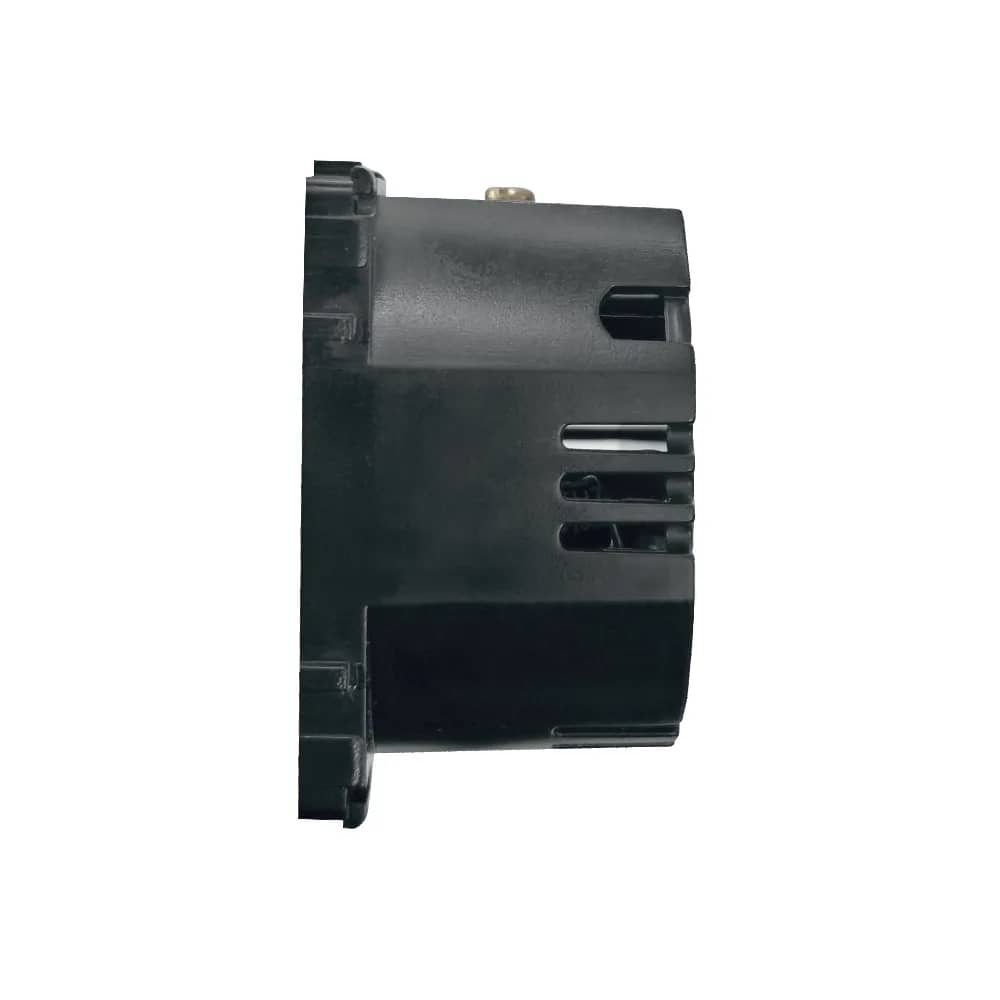

Dimensions
The module is secured with a screw fixing system. The glass panel and metal frame are not included.
- Front: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Rear housing height: 49 mm
- Screw fixing spacing: 60 mm
- Glass panel: not included
- Metal frame: not included
