SKU: LX-MT-R202
In stock
Luxion 2 gang 2-way touch switch module with RF433 control, for mounting on Luxion glass panels or multi-module frames.
The Luxion 2 gang 2-way (staircase) light switch module with RF433. The module can be mounted on its own on a Luxion panel, or together with other Luxion sockets and light switches on a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
It can be controlled with the Luxion RF remote control or the RF switch-type remote control.
Please note: remote controls are sold separately!
A maximum of 3 switches can be connected in the circuit (intermediate/cross switching).
A double (2-gang) 2-way switch module from LUXION with RF433 connectivity, designed for controlling lights from two locations, such as at the top and bottom of a staircase.
Wiring diagram: connect the live (L) to the L(A) terminal of both modules, connect the lamps between L1/L2 of the first module and neutral (N), and link the two modules with the 2-way / intermediate connection wire.

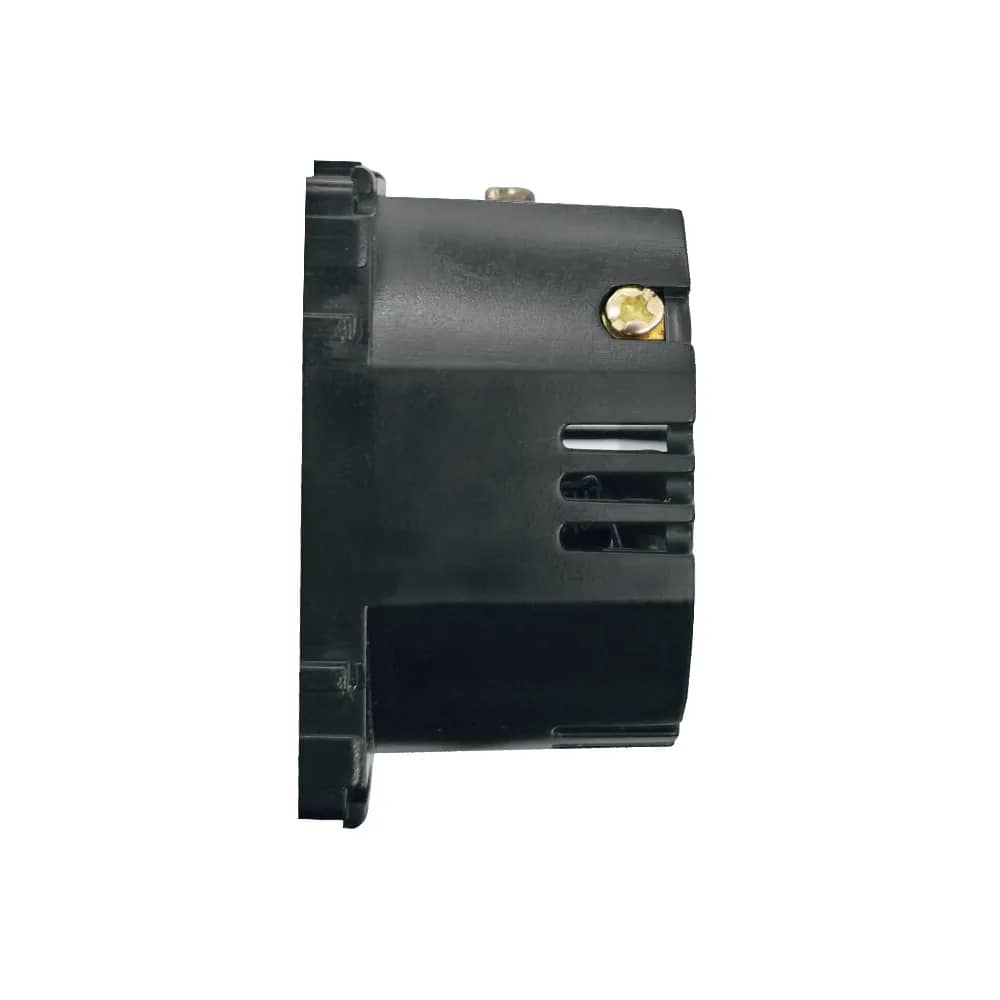

Fixed with a screw mounting system at 60 mm spacing.
This product is the switch module only.
