Luxion 1 Gang Touch Dimmer Switch Module with RF433 – LX-WT2-RD101

Name: Luxion 1 Gang Touch Dimmer Switch Module with RF433 – LX-WT2-RD101
Brand: Luxion
SKU: LX-WT2-RD101
Price: 80 AED
Availability: InStock

SKU: LX-WT2-RD101

AED 80

In stock

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion 1 gang touch dimmer switch module with RF433 – compact, minimalist design with a precise, smartphone-like touch sensor.

Product details

The Luxion range of light switches stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Please note: a neutral wire is required!

Highlights

Installation – Wiring Diagram

Connect the live wire (L) to the L terminal, run the load (light bulb) from the L1 terminal, and connect the neutral wire (N) to the N terminal.

L: Live
L1: Output to light
N: Neutral
Caution: please cut off the power when installing and uninstalling

Technical Data

Operating voltage: 100–240 V AC
Load power: 0–300W/gang
LED or energy-saving bulbs: power load should be less than 100W/gang
Connectivity: Wi-Fi, RF
Dimming function
Markings: CE, FC, RoHS

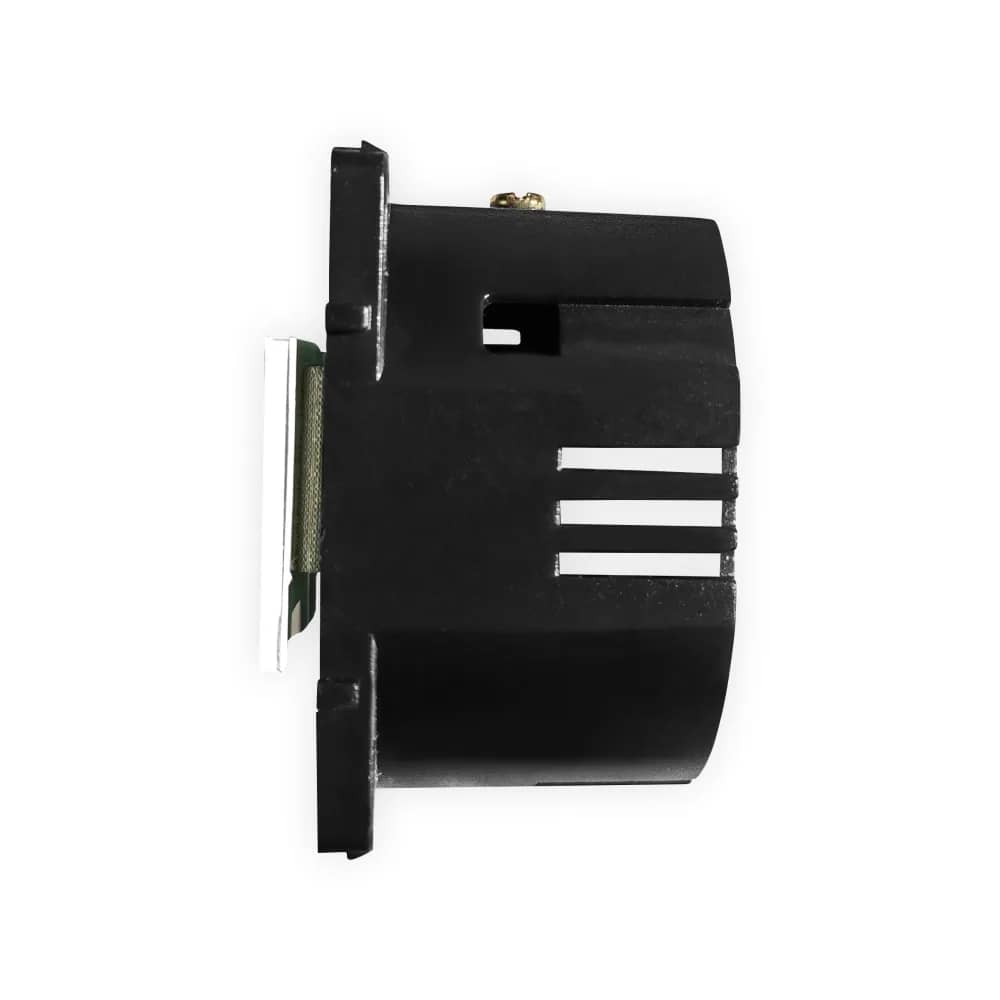

Dimensions

Module dimensions as shown on the banner.

Front: 50 mm x 50 mm
Depth: 5 mm + 26 mm
Height of rear housing: 49 mm
Screw fixing system: 60 mm spacing

Not Included

This item is the switch module only.

Glass panel not included
Metal frame not included
