Luxion 1 Gang Touch Dimmer Switch Module – 2-Way / Intermediate (LX-MT-D102)

Name: Luxion 1 Gang Touch Dimmer Switch Module – 2-Way / Intermediate (LX-MT-D102)
Brand: Luxion
SKU: LX-MT-D102
Price: 71 AED
Availability: InStock

SKU: LX-MT-D102

AED 71

In stock

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion 1 gang touch dimmer module with 2-way/intermediate control, for Luxion glass frames and panels – up to 3 switches per circuit.

Product details

The Luxion 1 gang touch dimmer switch module with 2-way (staircase) control. It can be mounted on its own on a Luxion panel, or together with other Luxion sockets and light switches in a Luxion glass frame.

Compatible only with Luxion glass frames and panels.

A maximum of 3 switches can be connected in the circuit (intermediate switching).

Highlights

Single Switch Module with Dimmer – 2-Way

LUXION single switch module with dimmer, designed for 2-way (two-location) lighting control.

Single-gang dimmer switch module
2-way (staircase) operation
Use with dimmable lamps
Total load must not exceed 500W

Installation Instructions

Wiring diagram: phase (L) and neutral (N) supply the lamp, and the two modules are linked for 2-way / intermediate operation. Do not install with the power on.

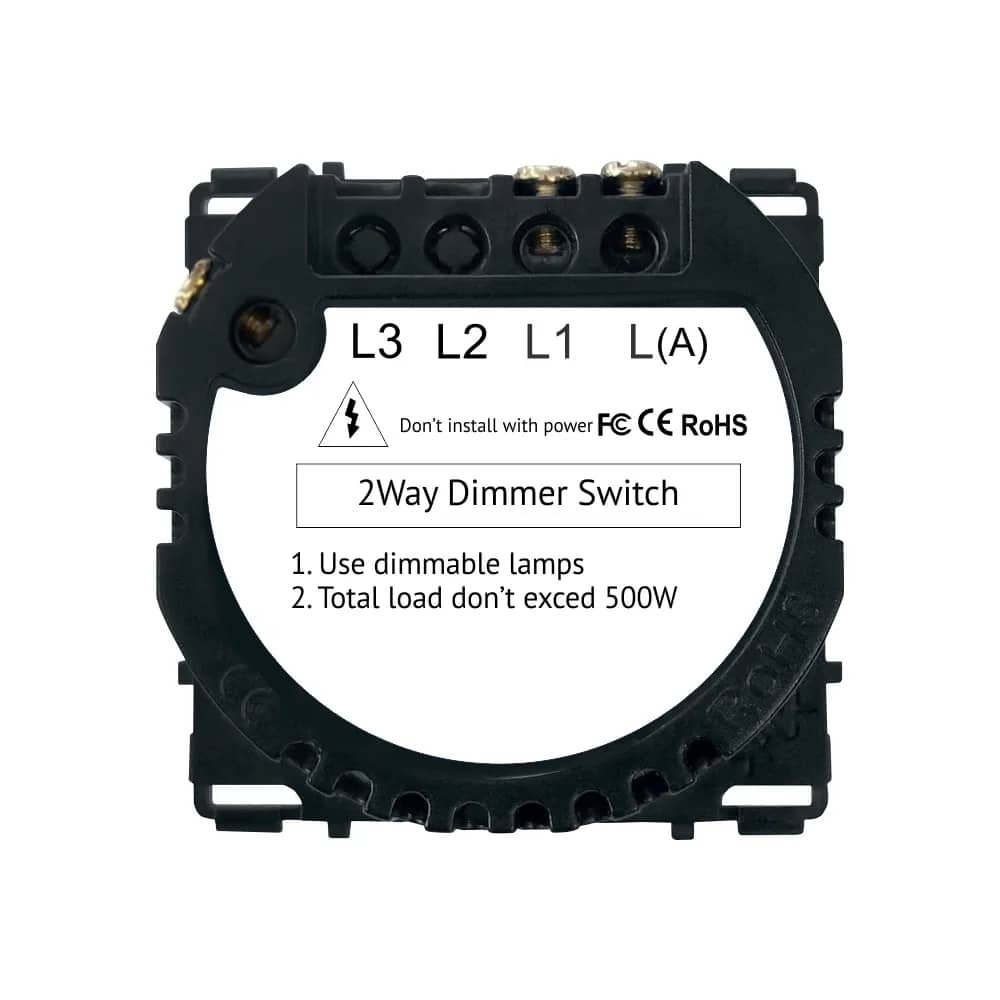

Terminals: L3, L2, L1, L(A)
Phase (L) and neutral (N) connection
Link wire between modules for 2-way / intermediate control
Use dimmable lamps only
Total load must not exceed 500W

Dimensions

Module front: 50 mm x 50 mm

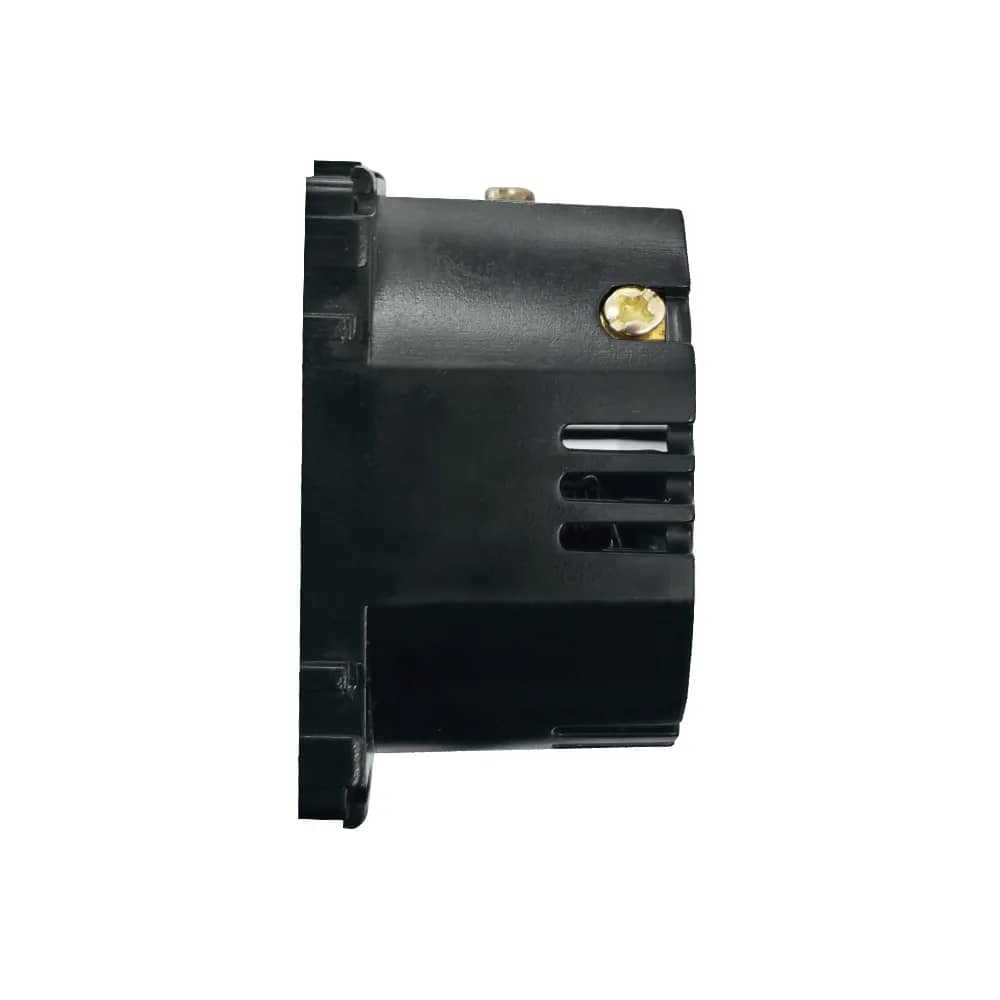

Depth: 26 mm + 5 mm
Height (rear housing): 49 mm
Screw fixing distance: 60 mm

Not Included

The module is supplied without the front panel and frame.

Glass panel (not included)
Metal frame (not included)
