Luxion Single Mechanical Switch Module 1M
A single (one-way) mechanical light switch module in 1M format from the Luxion range.
- Available in white, black, gold and grey finishes
Luxion
Luxion 1 Gang Mechanical Light Switch Module – 1M
SKU: LX-MP014W
AED 7
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, elegant Luxion 1M mechanical 1 gang light switch module, available in White, Gold, Grey and Black, for Luxion glass frames.
Product details
Luxion products stand out for their compact, elegant and minimalist design. They are practical, made from quality materials, durable over time, and bring functionality and comfort to your home.
Compatible only with Luxion glass frames
Highlights
02

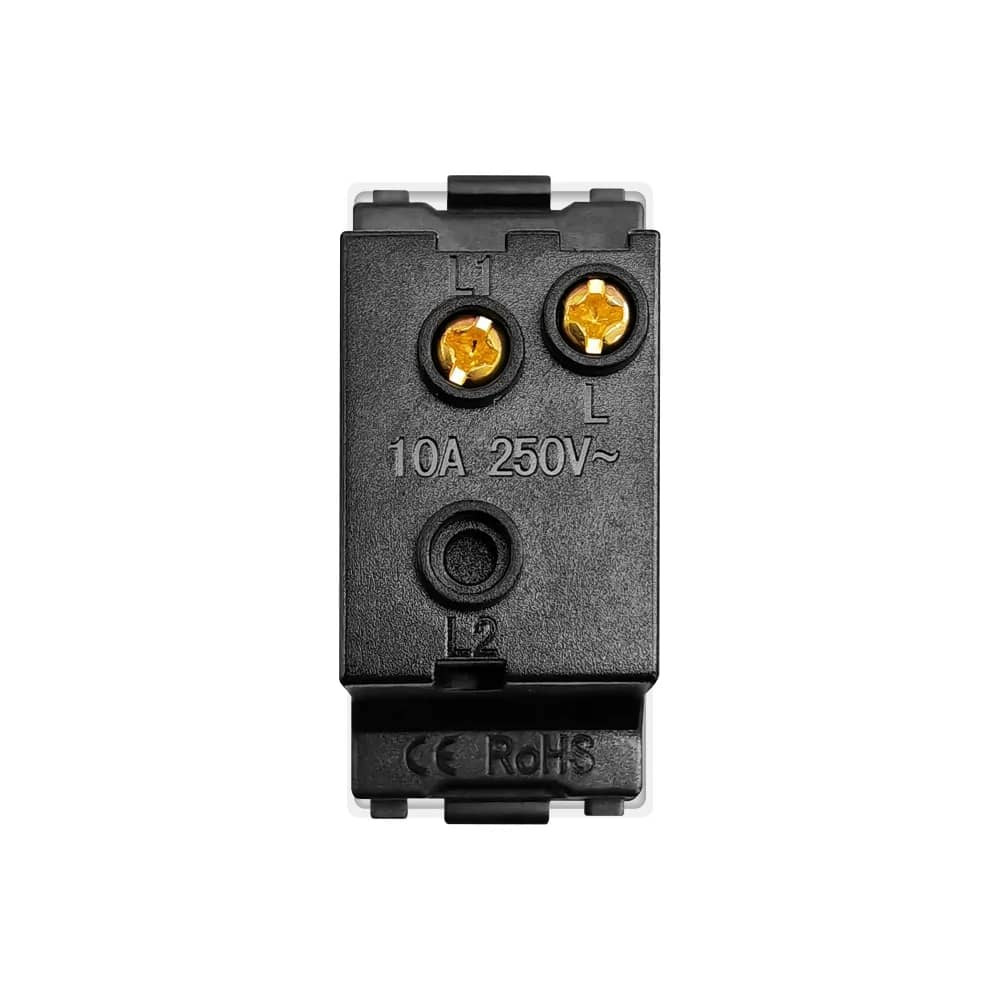

Installation – Wiring Diagram
Connect the live wire (L) to the L terminal of the module and run a wire from the L1 terminal to the light fitting. The neutral (N) connects directly to the light fitting.
- Live (L): to terminal L
- Terminal L1: to the light fitting
- Neutral (N): to the light fitting
- Module rating: 10A 250V~
03

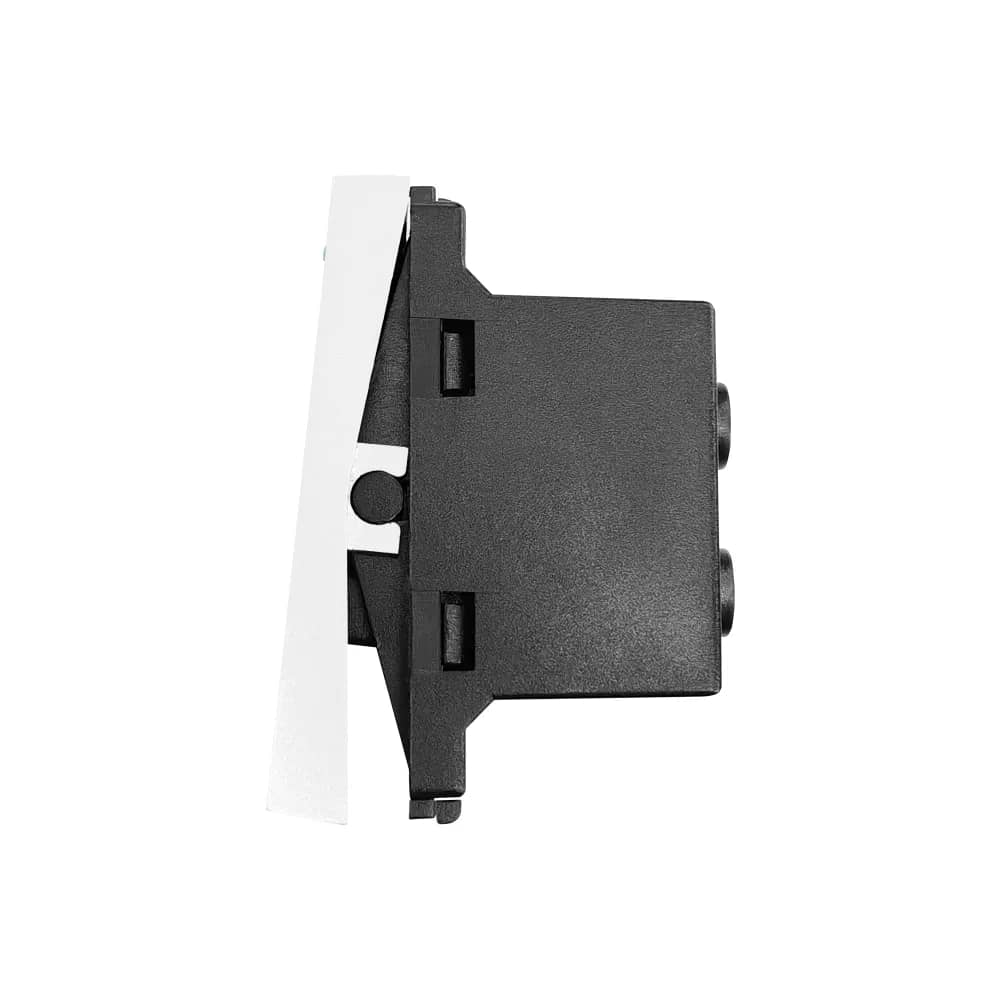

Dimensions
The module fits a mounting frame with a screw fixing system at 60 mm centres.
- Width: 23.5 mm
- Height: 47 mm
- Depth: 15 mm (front) + 20 mm (rear)
- Screw fixing distance: 60 mm
04
Not Included
- Glass frame (not included)
- Metal frame (not included)
