Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
Livolo
Livolo Zigbee EC Touch Light Switch with Glass Frame – 1 Gang 2-Way / Intermediate
SKU: VL-FC1SZ2-2W-11
AED 84
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang 2-way/intermediate touch light switch with glass frame, Zigbee EC protocol, app and voice control via the Livolo hub.
Product details
Livolo 1 gang 2-way/intermediate light switch, Zigbee EC protocol, resistant to moisture and dust. It brings extra refinement and comfort to your home.
It can be operated:
– Directly at the switch, on/off by touch;
– From your smartphone via the Livolo Zigbee EC Hub using the Livolo app (hub sold separately);
– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as the intermediary between the switch and Google Home or Amazon Alexa.
Highlights
02
Wiring Diagram
Installation instructions showing how to connect two switches for 2-way control of one light.
- Neutral (N) connects to the light
- Live (L) connects to the L terminal of each switch
- The COM terminals of the two switches are linked (2-way / intermediate connection)
- The light is connected to the L1 terminal of the second switch

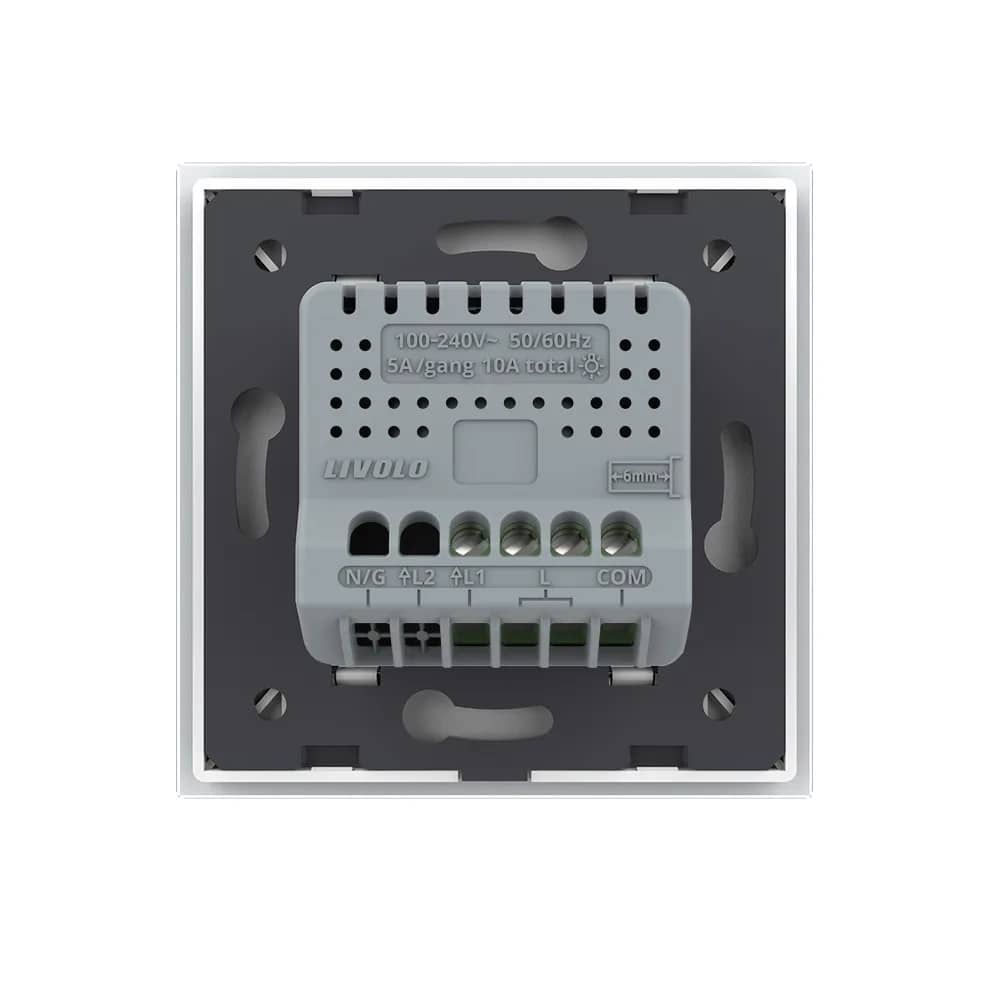

- Module rating printed on the back: 100-240V~ 50/60Hz, 5A/gang, 10A total
03
Structure
The switch consists of three parts and supports Zigbee connectivity.
- Glass frame
- Switch module
- Metal frame
- Screw fixing system with 60 mm spacing
04
Dimensions
- Front panel: 80 mm x 80 mm

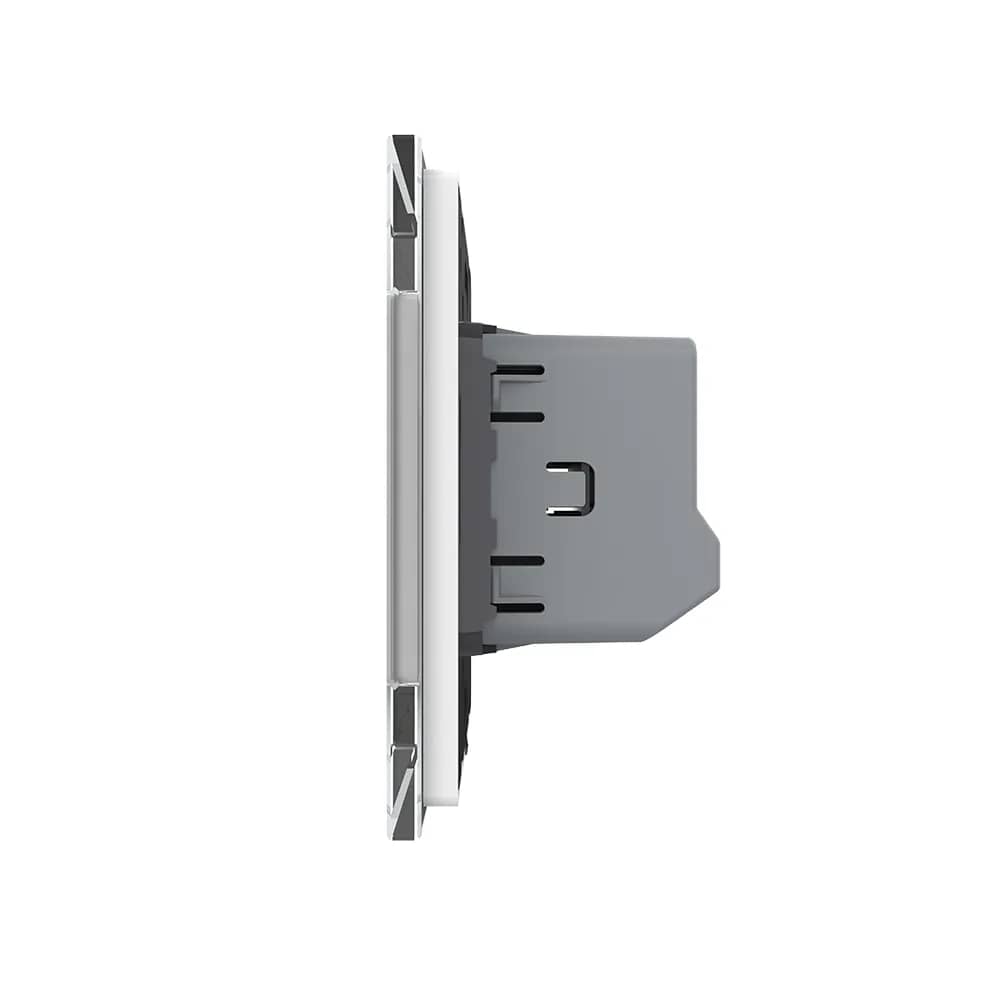

- Depth: 4 mm, 33 mm and 8 mm (as shown on the side profile)
- Screw fixing distance: 60 mm
05
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel – it clicks into place.
