01

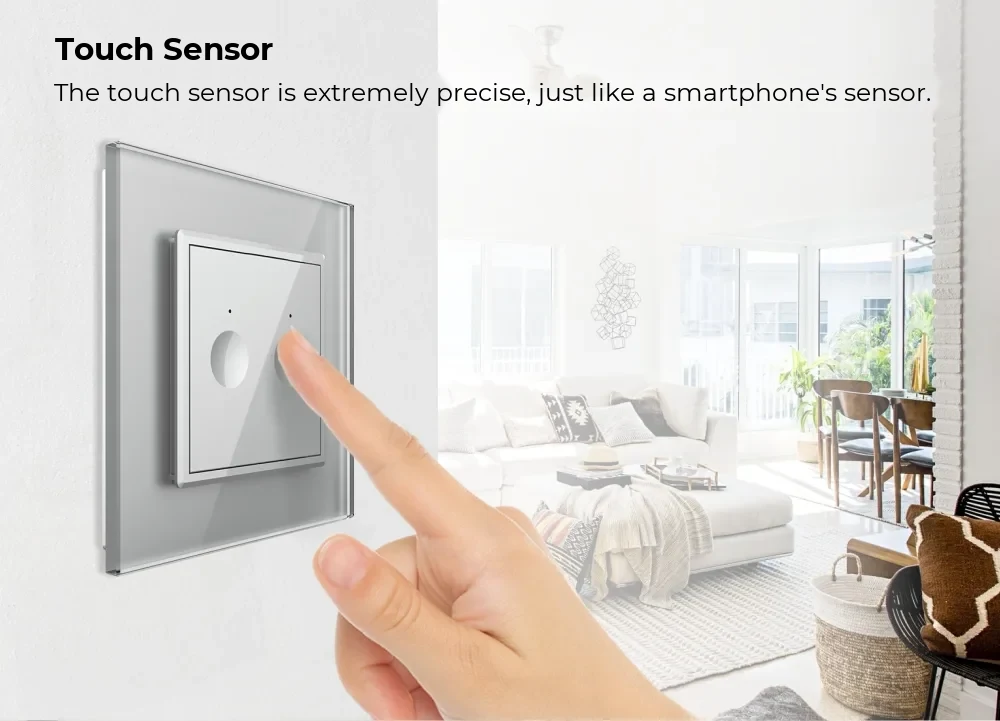

Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
Livolo
Livolo Zigbee EC 2 Gang Touch Light Switch with Glass Frame
SKU: VL-FC2Z2-2W-11
AED 84
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang touch light switch with glass frame and Zigbee EC protocol – control by touch, smartphone app or voice via the Livolo hub.
Product details
The Livolo 2 gang touch light switch with Zigbee EC protocol is an improved, innovative product from the new series, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
It can be operated:
– Directly from the switch, on/off by touch;
– From your smartphone via the Livolo Zigbee EC Hub using the Livolo app (hub sold separately);
– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as the intermediary between the switch and Google Home or Amazon Alexa.
Highlights
02
Does Not Discolour
The elegant design stays intact.
03
App Control
Change the atmosphere of your home at the touch of a button! Open the Livolo app to customise the lighting in your home just the way you like.
- Important: Livolo switches with the ZigBee protocol work only with the Livolo ZigBee hub.
04
Compatible with Amazon Alexa
With a simple voice command you can control the Livolo ZigBee switch to turn your lights on or off.
- Example: "Alexa, turn on the light!"
05
Structure
- Glass frame
- Switch module
- Metal frame
- Screw fixing system: 60 mm
06
Dimensions
- Width: 80 mm
- Height: 80 mm
- Front depth: 4 mm / 8 mm
- Rear module depth: 33 mm
07

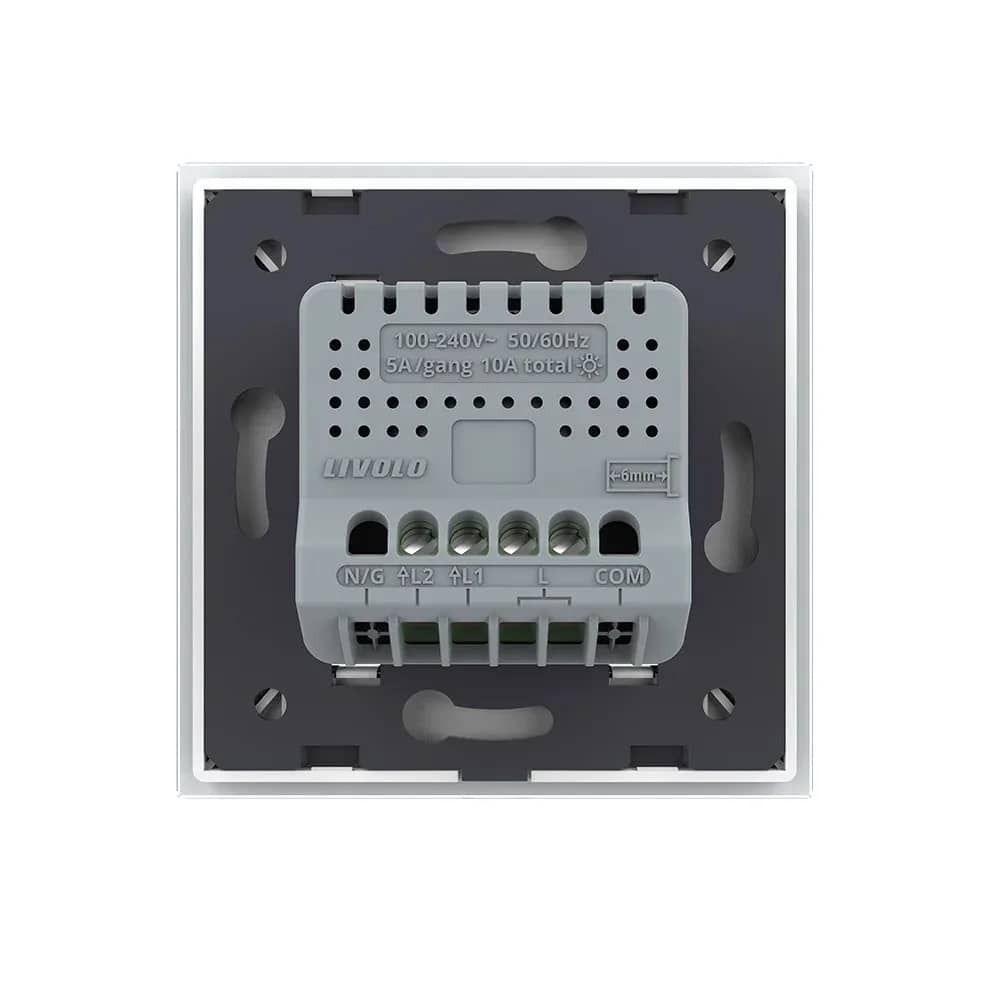

Electrical Data (printed on module)
- Voltage: 100-240V~
- Frequency: 50/60Hz
- Load: 5A/gang, 10A total
- Terminals: N/G, L2, L1, L, COM
08
Wiring Diagram
Connect the live wire (L) to the L terminal and each light to the L1 and L2 outputs; the lights are connected to neutral (N).
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
In detail
