01
A Variety of Products
Simple design, extraordinary mechanism. Available in several glass panel colours.
Livolo
Livolo Wireless Touch Light Switch with Glass Frame – 4 Gang 2-Way / Intermediate, Italian Standard – New Series
SKU: VL-FC4SR-3WP-11
AED 91
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 4 gang 2-way/intermediate wireless touch switch with crystal-texture glass frame, light indicator and remote-control support.
Product details
Livolo 4 gang 2-way / intermediate wireless touch light switch with glass frame, Italian standard, with a crystal texture, light indicator, resistant to moisture and scratches – refinement at its finest.
A maximum of 3 switches can be connected in the circuit (intermediate)
It can be operated:
– Directly from the switch, on/off by touch;
– From a Livolo remote control, one of 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO Hub + Livolo Remote Control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. As an intermediary between the switch and Google Home or Amazon Alexa you need the BroadLink RM4 PRO hub.
Highlights
02
Important: 2-Way Compatibility
2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do NOT work with other brands.
03

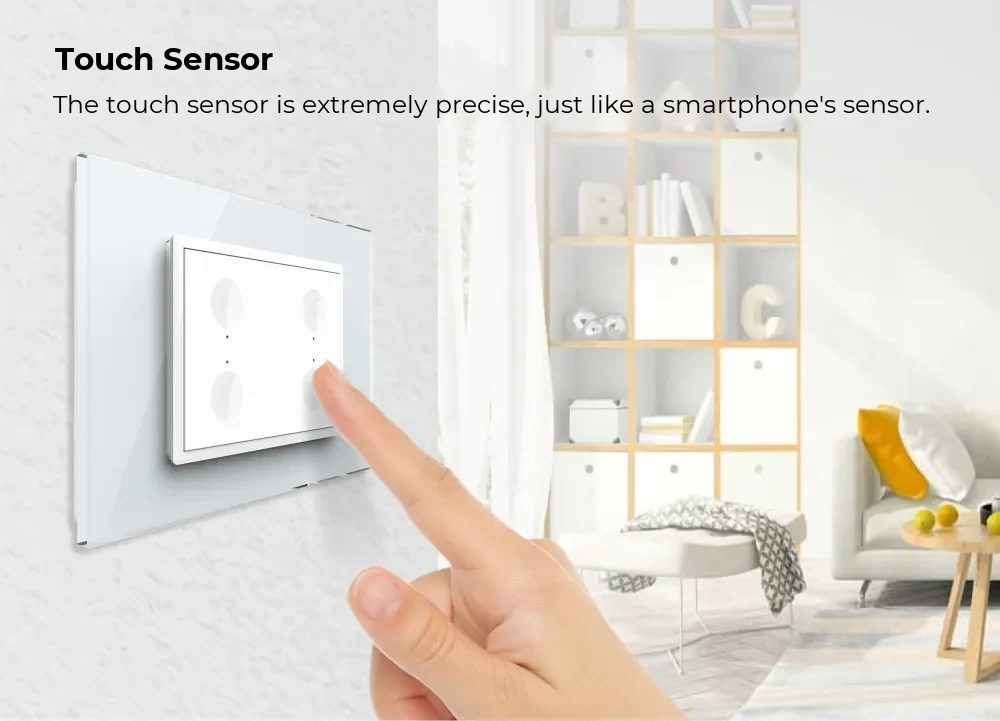

Touch Sensor
The touch sensor is extremely precise, identical to the sensor of a smartphone.
04
No Unnecessary Cables
The new Livolo switches ensure quick and easy installation, using Live (L) and Neutral (N) connections.
- Rating: 100-240V~ 50/60Hz
- 5A/gang, 10A total
05

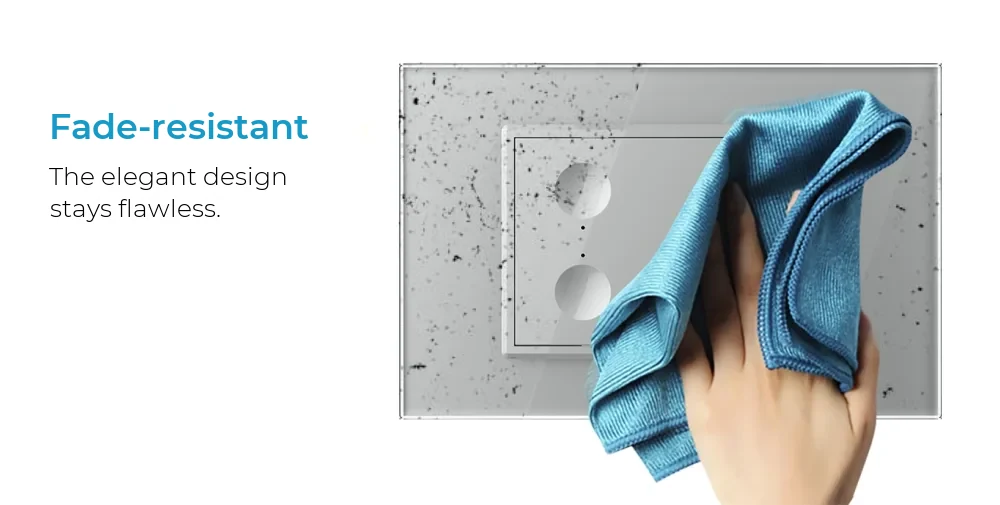

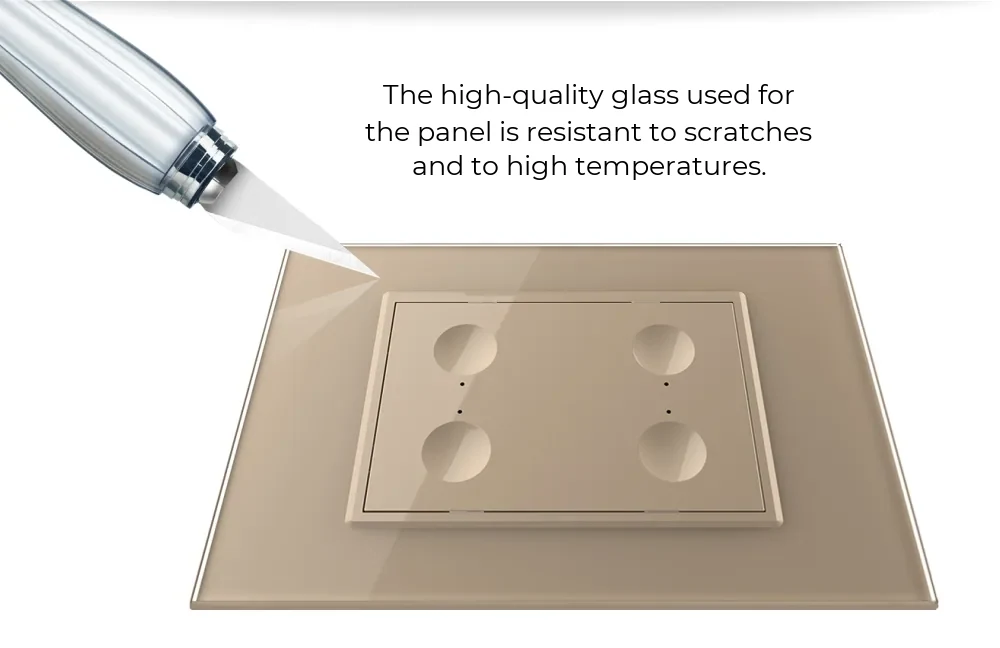

Durable Glass Panel
The panel does not discolour, so the elegant design stays intact. It is made from high-quality glass that resists scratches and high temperatures.
06
Structure
The switch consists of three main parts and is secured with a screw fixing system.
- Elegant crystal glass panel
- Switch module
- Metal frame
07
Dimensions
- Width: 119 mm
- Height: 78 mm
- Screw fixing distance: 85 mm
- Depth behind panel: 34 mm
- Panel thickness: 4 mm
- Frame depth: 8 mm
08
Wiring Diagram
Wiring diagram for a 4-gang switch in a 2-way configuration: Neutral connects to the four lights, while the Live (L) and 2-way link wires connect the two switches.
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
10
Wireless Control
Wireless switches can be operated from any room. The switch can be controlled with the Livolo VL-RMT-02 key fob remote and with the VL-RMT-04 remote.
- Remote controls are not included in the package and must be purchased separately.
In detail
