A Variety of Products
Simple design, extraordinary mechanism. Available in a range of glass panel colours.
Livolo
Livolo Wireless Glass Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series
SKU: VL-FC2SR-3WP-11
AED 78
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang wireless touch switch with tempered glass frame, Italian standard, for 2-way/intermediate circuits of up to 3 switches.
Product details
Livolo 2 gang 2-way / intermediate wireless touch light switch with glass frame, Italian standard, featuring a crystal texture, light indicator, moisture and scratch resistance, and refinement at its finest.
A maximum of 3 switches can be connected in the circuit (intermediate)
It can be operated:
– Directly from the switch, on/off by touch;
– With a Livolo remote control, one of the 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO hub + Livolo remote control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. To link the switch with Google Home or Amazon Alexa, you need the BroadLink RM4 PRO hub as an intermediary.
Highlights
02
Important: 2-Way Compatibility
2-way (staircase) switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do NOT work with other brands.
03

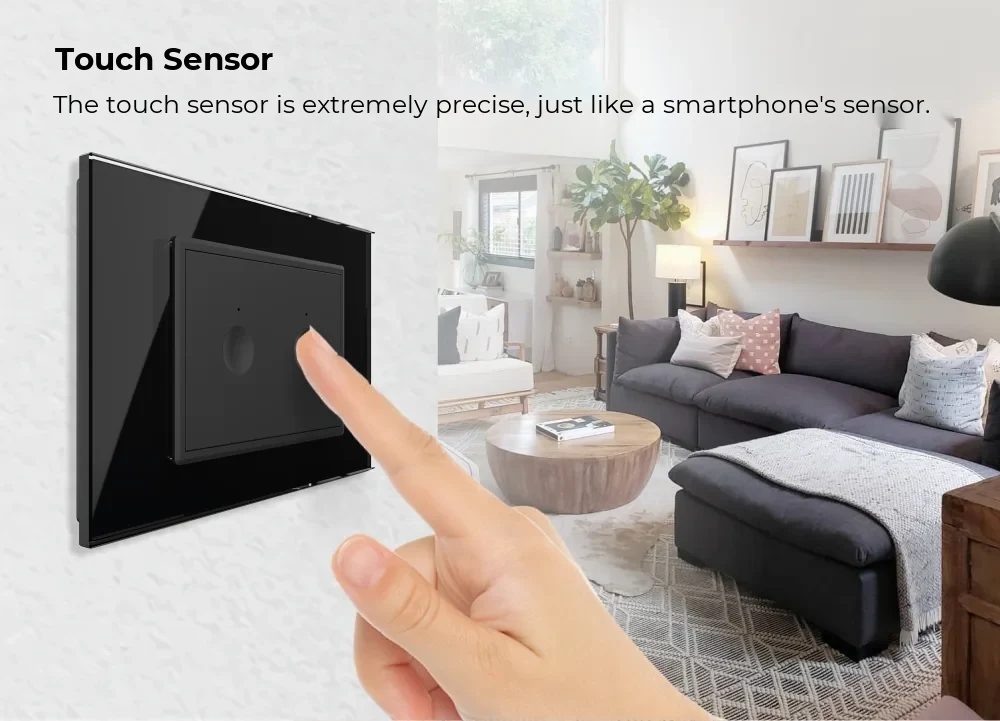

Touch Sensor
The touch sensor is extremely precise, identical to the sensor in a smartphone.
04
No Unnecessary Wiring

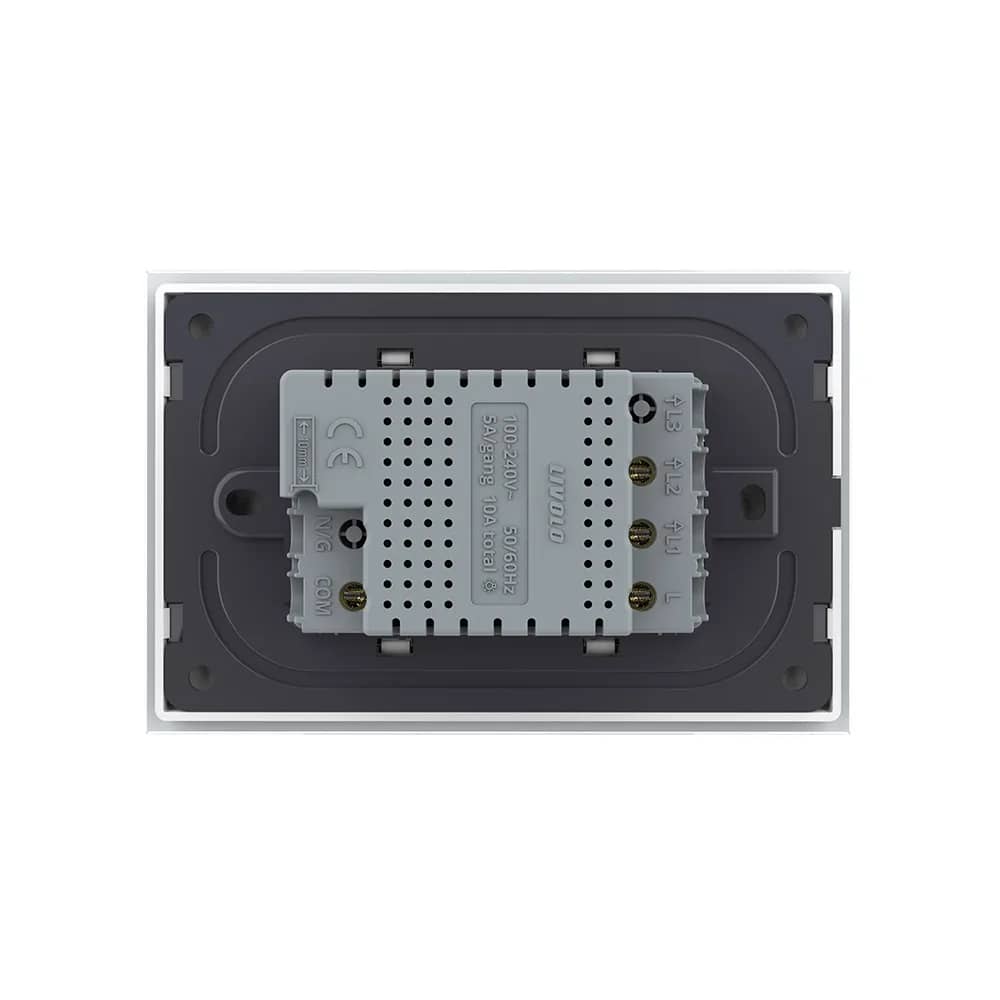

The new Livolo switches ensure quick and easy installation, using a Live (L) and Neutral (N) connection.
- Live (L)
- Neutral (N)
- Rated 100-240V~ 50/60Hz
- 5A/gang, 10A total
05

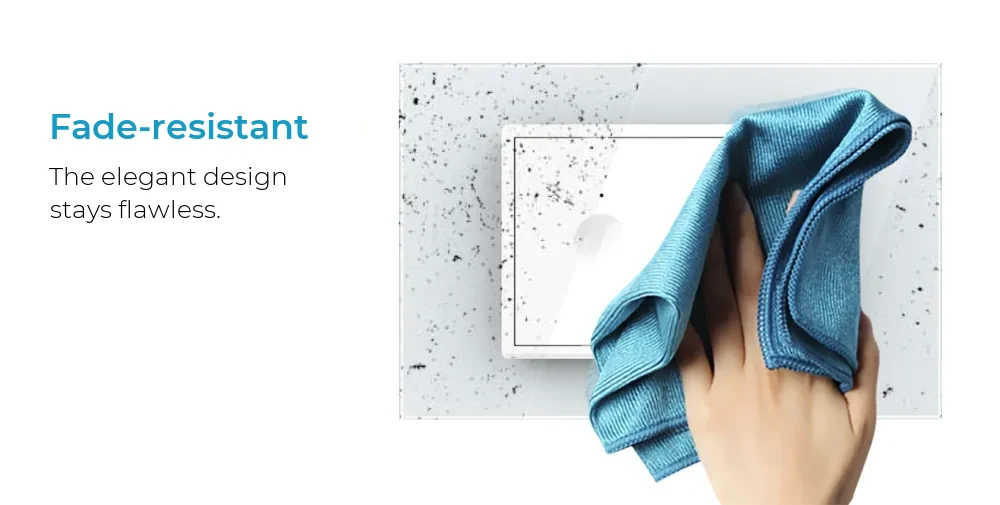

Design and Materials

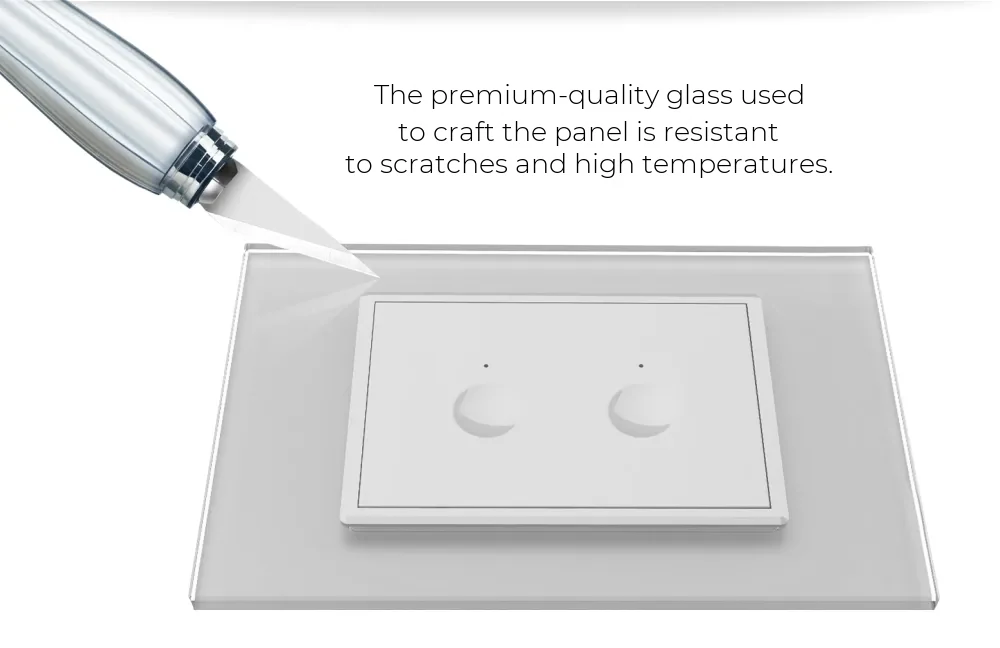

The elegant design remains intact and does not fade. The panel is made of high-quality glass that resists scratches and high temperatures.
- Does not discolour
- Scratch-resistant glass
- Resistant to high temperatures
06

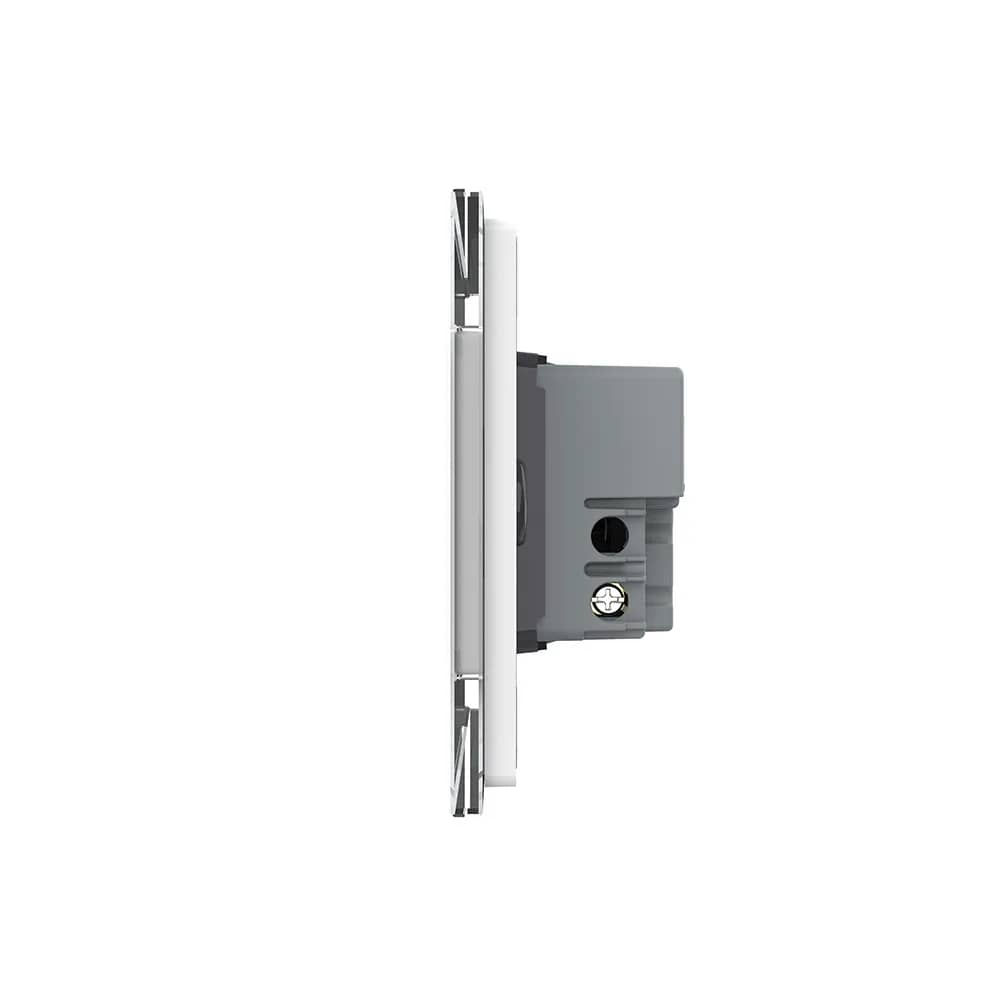

Structure
The switch consists of three main parts and is fixed with a screw mounting system.
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing distance: 85 mm
07
Dimensions
- Width: 119 mm
- Height: 78 mm
- Panel thickness: 8 mm
- Front profile: 4 mm
- Module depth: 24 mm
08
Wiring Diagram
Double (2-gang) switch in a 2-way configuration: the Live (L) connects to one switch, the two lamps connect to the L1 and L2 outputs of the other switch, and the two switches are linked via the COM (2-way) terminal, with Neutral (N) going to the lamps.
09
Wireless Remote Control
The switch can be controlled with the Livolo VL-RMT-02 key fob remote. Wireless switches can also be operated from any room using the VL-RMT-04 remote.
- Compatible remotes: VL-RMT-02, VL-RMT-04
- Remote not included – must be purchased separately
10
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
In detail
