A Variety of Products
Simple design, extraordinary mechanism. Available in a range of panel colours, including white, black, grey and gold.
Livolo

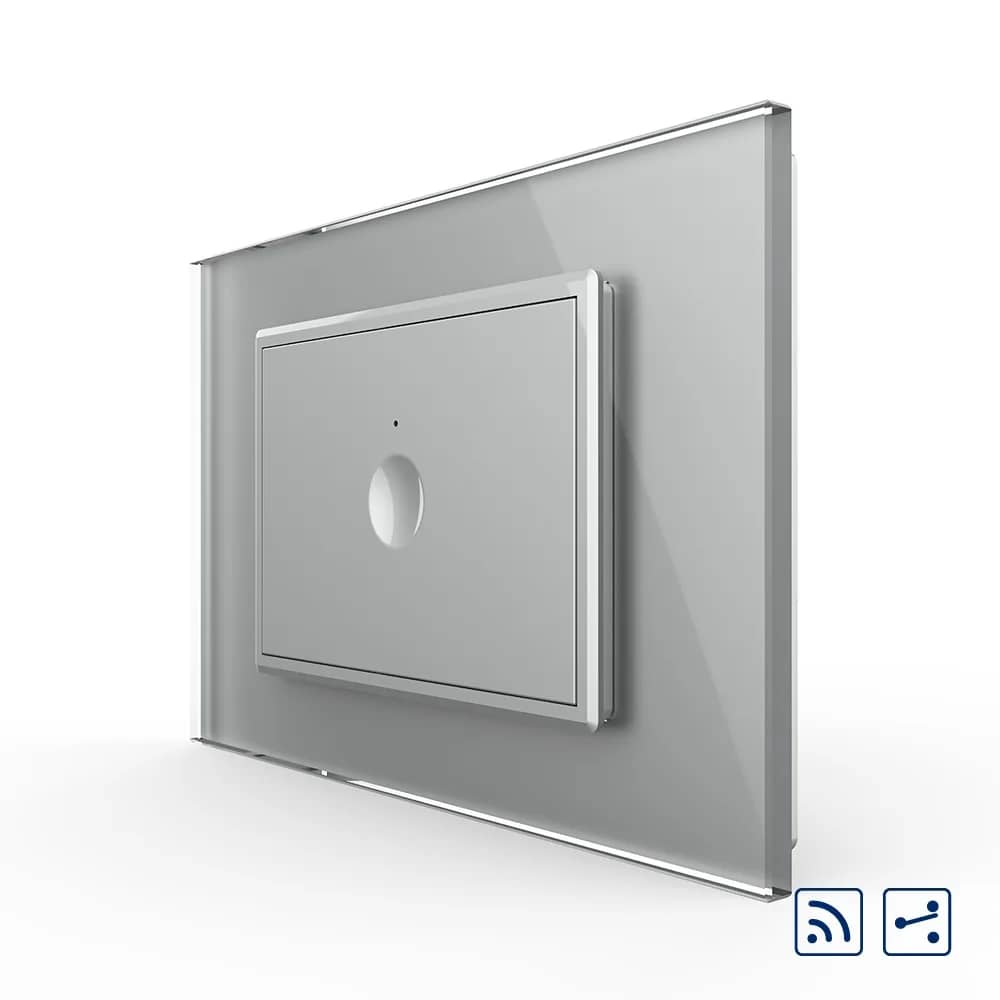

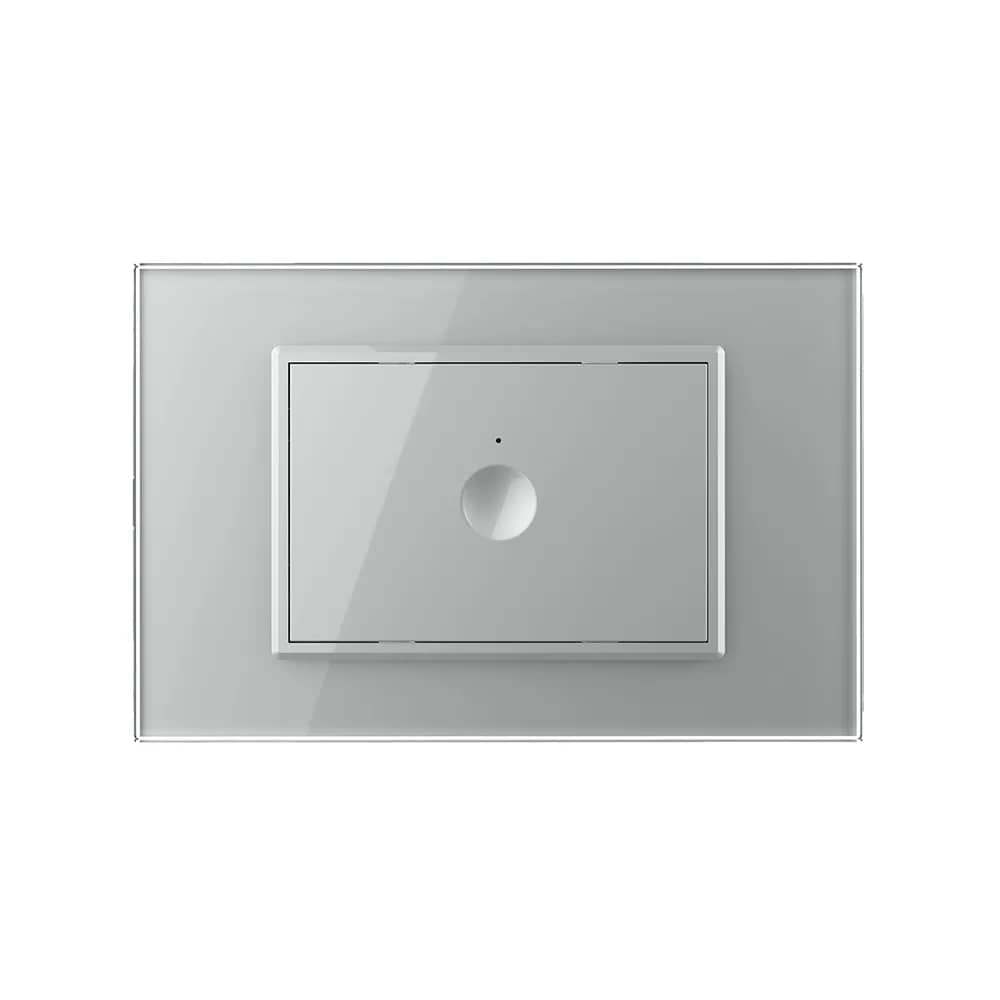

Livolo Wireless Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, Italian Standard – New Series
SKU: VL-FC1SR-3IP-15
AED 118
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang 2-way/intermediate wireless touch switch with crystal-textured glass frame, Italian standard, remote and voice control ready.
Product details
Livolo wireless 1 gang 2-way (staircase) / intermediate touch light switch with a glass frame, Italian standard, featuring a crystal texture, light indicator, moisture and scratch resistance, and refinement at its finest.
A maximum of 3 switches can be connected in the circuit (intermediate)
It can be operated:
– Directly from the switch, on/off by touch;
– From a Livolo remote control, one of the 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO Hub + Livolo Remote Control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. As an intermediary between the switch and Google Home or Amazon Alexa, you need the BroadLink RM4 PRO hub.
Highlights
02
Important Compatibility Notice
2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products DO NOT WORK with other brands.
03
Touch Sensor
The touch sensor is extremely precise, identical to the sensor in a smartphone.
04
No Unnecessary Wiring
The new Livolo switches ensure quick and easy installation.
- Phase (L)
- Neutral (N)
- Rated 100-240V~ 50/60Hz
- 5A/gang, 10A total
05
Durable Glass Panel
The panel is made from high-quality glass that resists scratches and high temperatures. It does not discolour, so the elegant design stays intact.
06

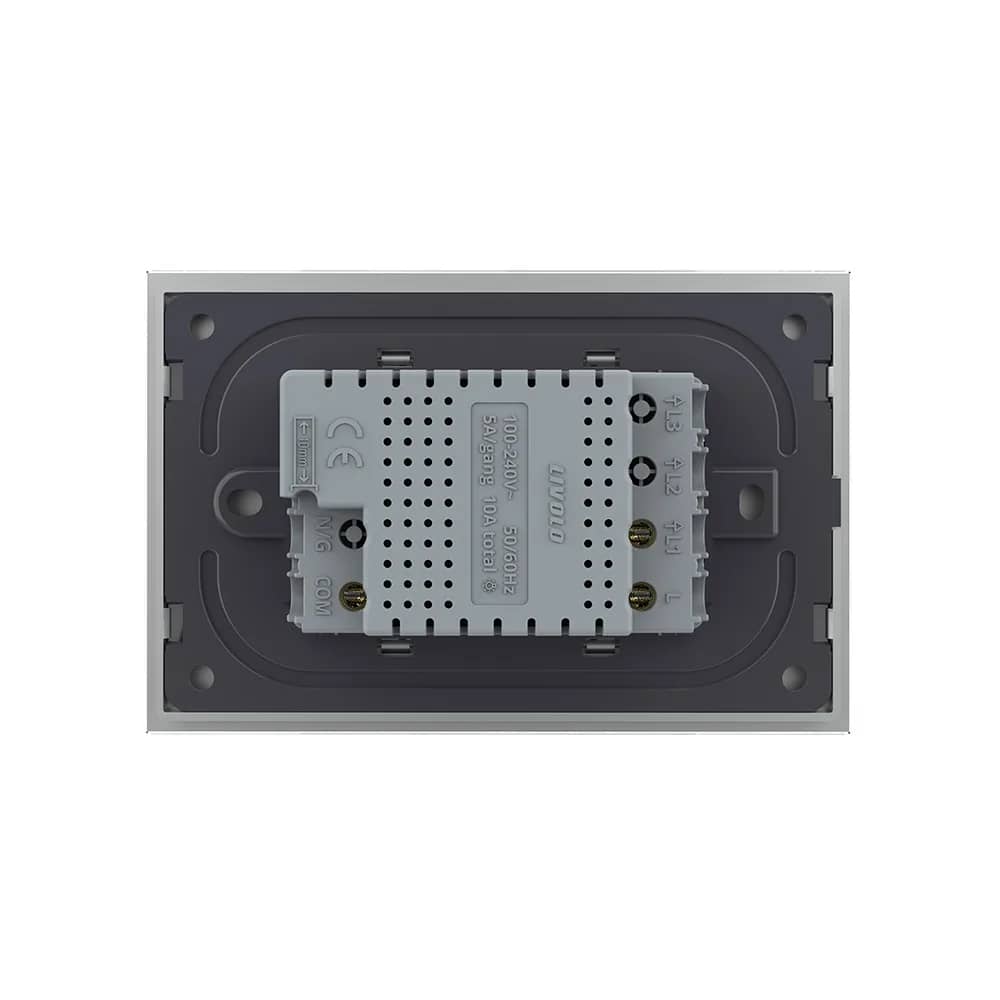

Structure
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing system
07

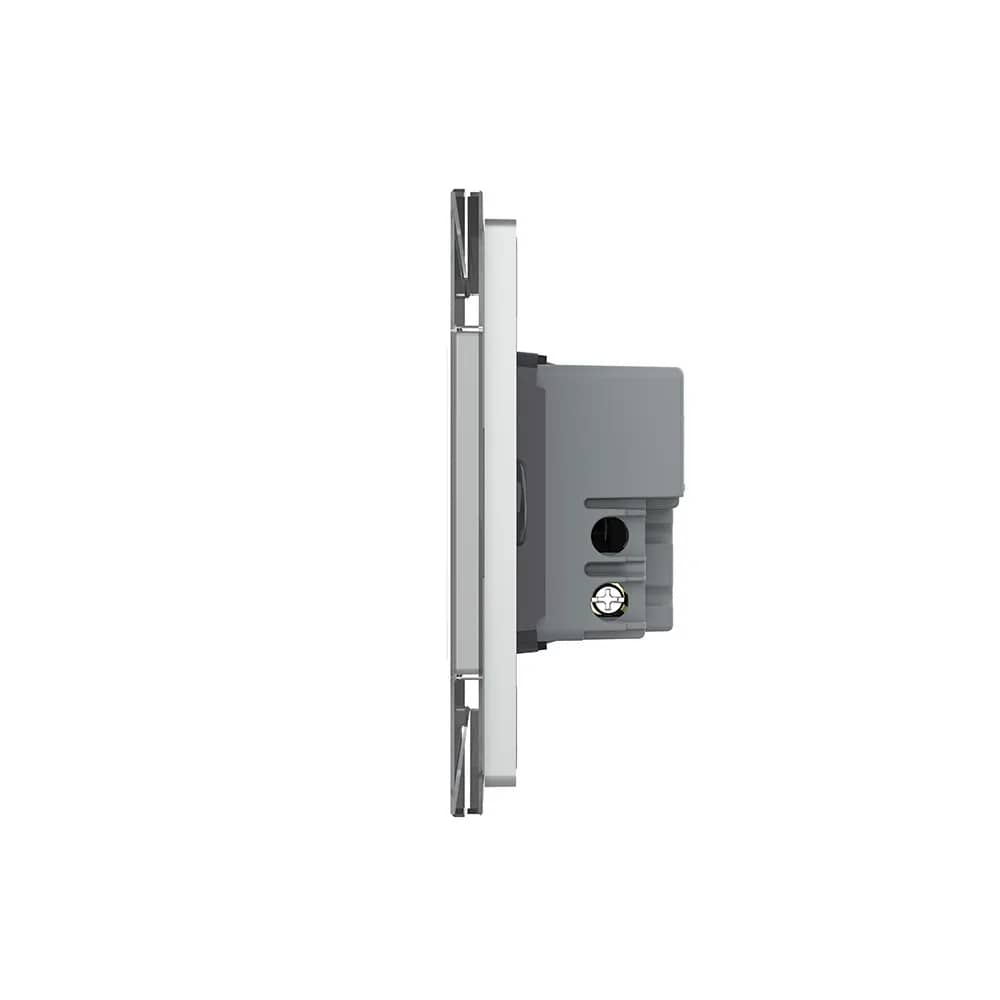

Dimensions
- Panel: 119 mm × 78 mm
- Screw fixing spacing: 85 mm
- Panel thickness: 4 mm
- Module depth: 24 mm
- Frame depth: 8 mm
08
Wiring Diagram
Two switches are connected via the 2-way (COM) terminals: phase (L) goes to one switch, the second switch feeds the light, and neutral (N) connects to the light.
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
10
Wireless Remote Control
The switch can be controlled with the Livolo VL-RMT-02 key-fob remote, and wireless switches can be operated from any room using the VL-RMT-04 remote. Remotes are not included and must be purchased separately.
