Livolo
Livolo Wireless Glass Touch Light Switch – 4 Gang, Italian Standard (New Series)
SKU: VL-FC4R-3WP-11
AED 82
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 4 gang wireless touch light switch with tempered glass frame, Italian standard, light indicator and remote, app and voice control options.
Product details

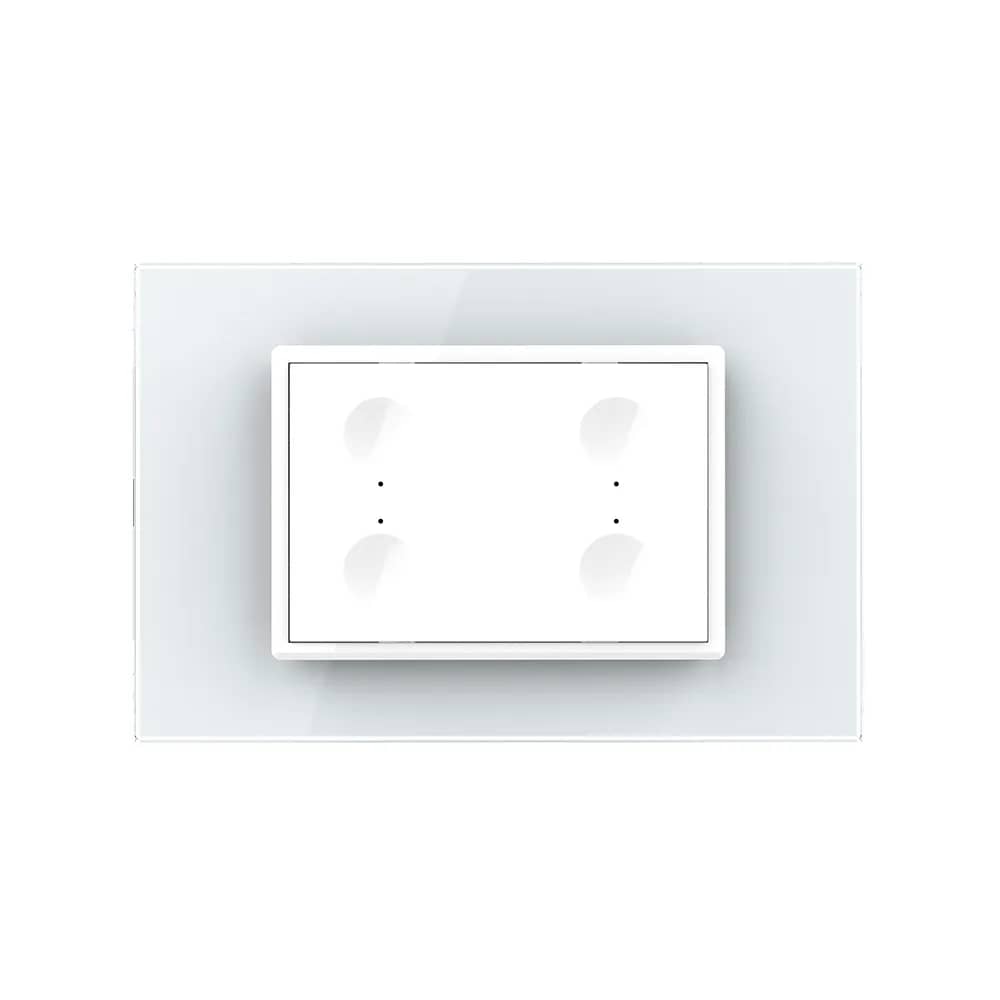

Livolo 4 gang wireless touch light switch with glass frame, Italian standard, featuring a crystal texture and light indicator. Moisture- and scratch-resistant, offering refinement at its finest.
It can be operated:
– Directly from the switch, on/off by touch;
– With a Livolo remote control, one of the 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO Hub + Livolo Remote Control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the BroadLink RM4 PRO hub as an intermediary.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, identical to the sensor of a smartphone.
03
Wireless Switch
Wireless switches can be operated from any room with the help of the VL-RMT-04 remote control.
- Remote control VL-RMT-04 is not included in the package and must be purchased separately
04
No Unnecessary Wiring
The new Livolo switches ensure quick and easy installation, with connections for live (L) and neutral (N).
05
Design and Materials

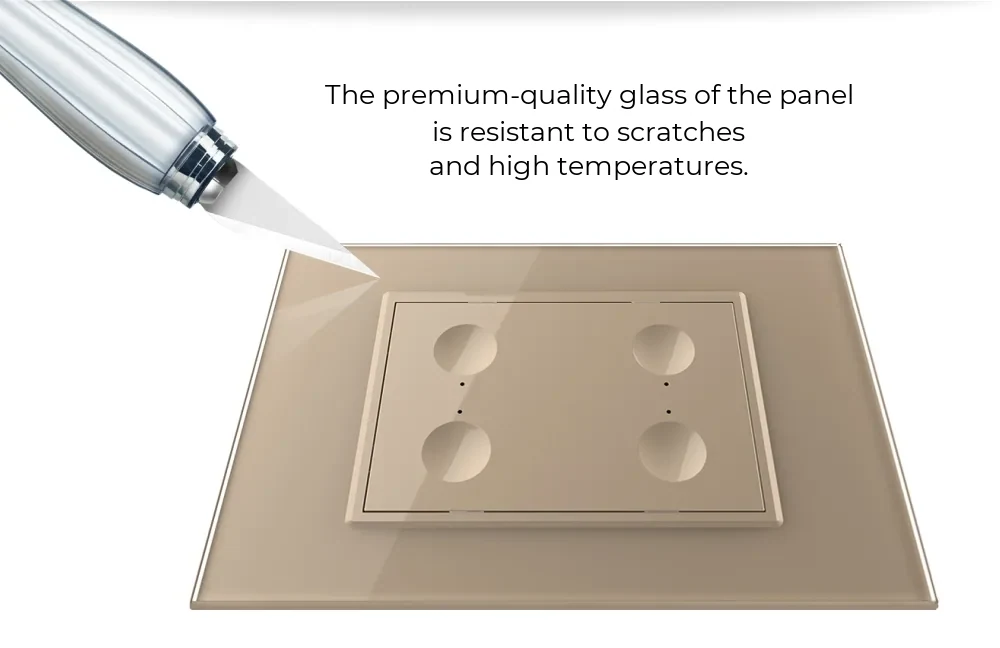

The panel is made of high-quality glass that resists scratches and high temperatures. It does not discolour, so the elegant design remains intact.
06
Structure
The switch consists of three main parts and is fixed with a screw mounting system.
- Elegant crystal glass panel
- Switch module
- Metal frame
07
Dimensions
- Width: 119 mm
- Height: 78 mm
- Screw mounting distance: 85 mm
- Depth: 4 mm / 34 mm / 8 mm
08
Technical Data
- Voltage: 100-240V~
- Frequency: 50/60Hz
- Load: 5A/gang, 10A total

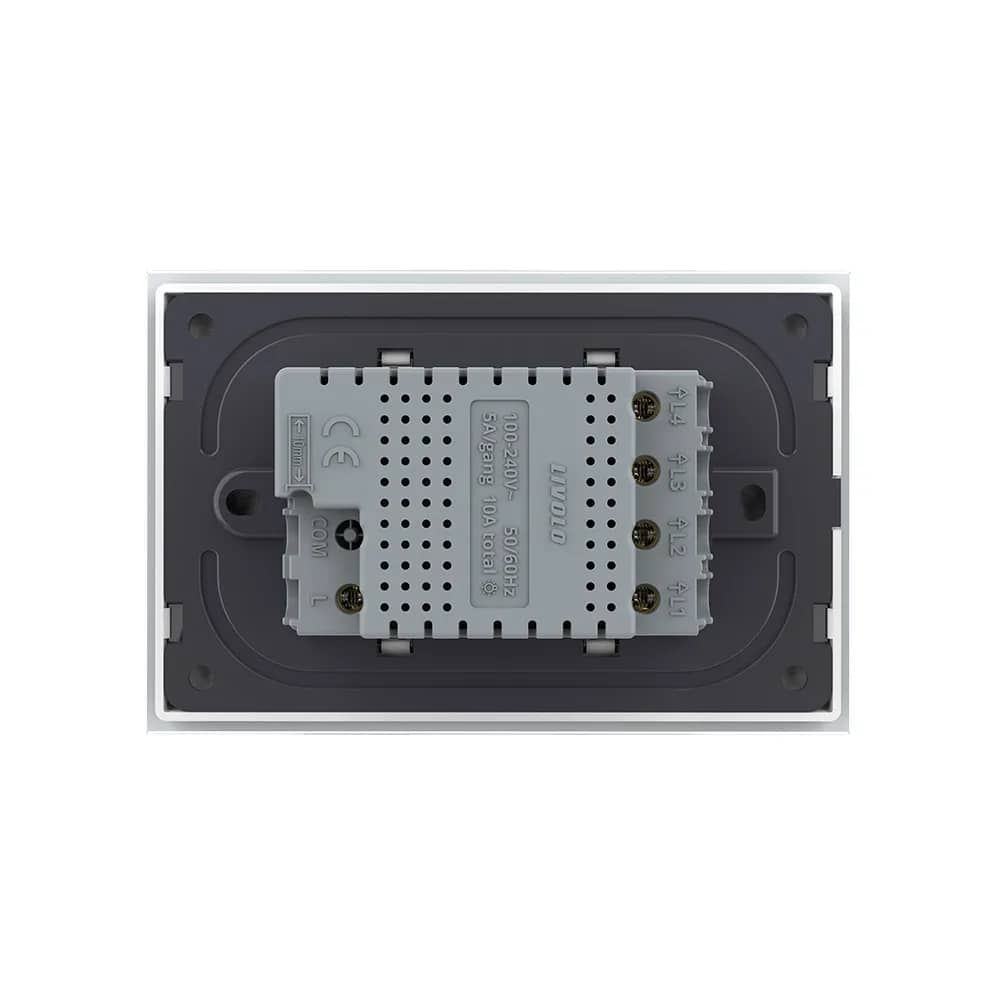

- Terminals: COM, L1, L2, L3, L4
09
Installation Instructions
Wiring diagram for the quadruple (4-gang) switch: live connects to the COM terminal, and each of the four lights connects to L1–L4, with neutral going directly to the lights.
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel until it clicks into place.
