A Variety of Finishes
Simple design, extraordinary mechanism. The switch is shown in white, black, grey and gold glass finishes.
Livolo
Livolo Wireless Glass Touch Light Switch – 3 Gang, Italian Standard – New Series
SKU: VL-FC3R-3WP-11
AED 90
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.

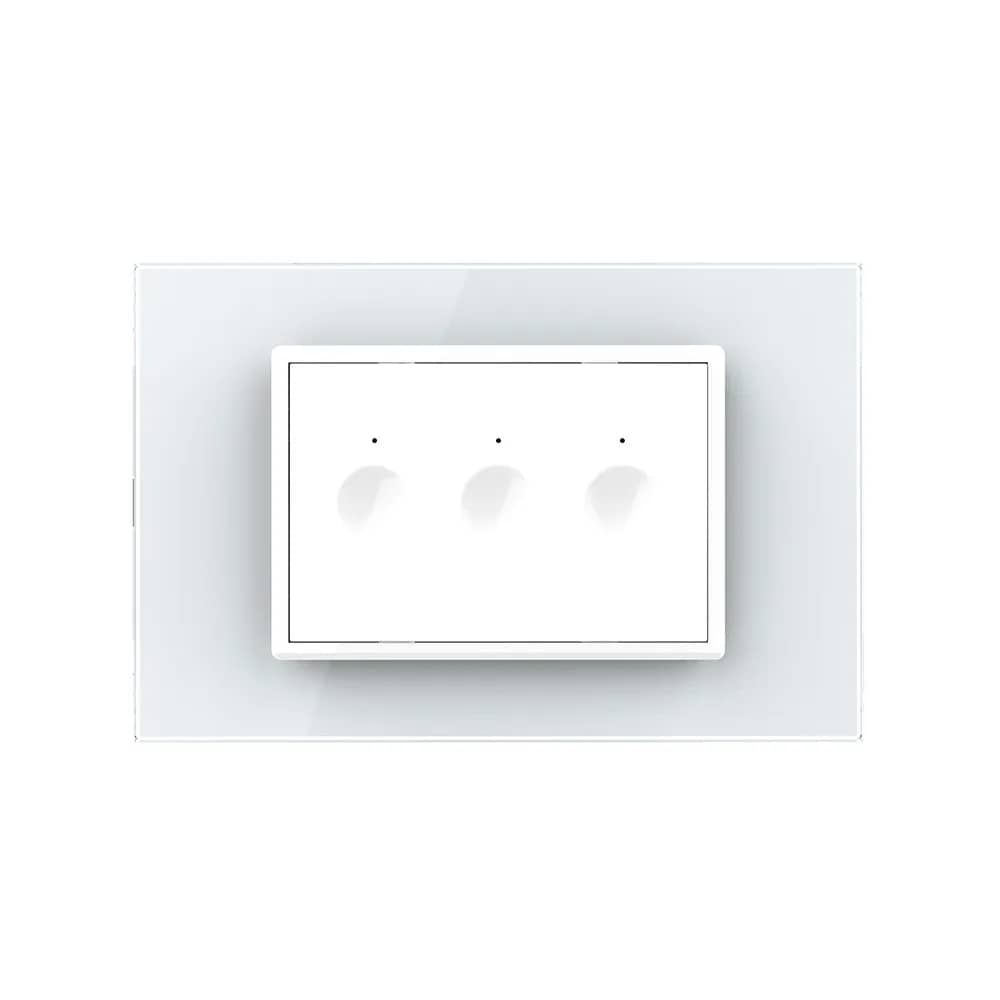

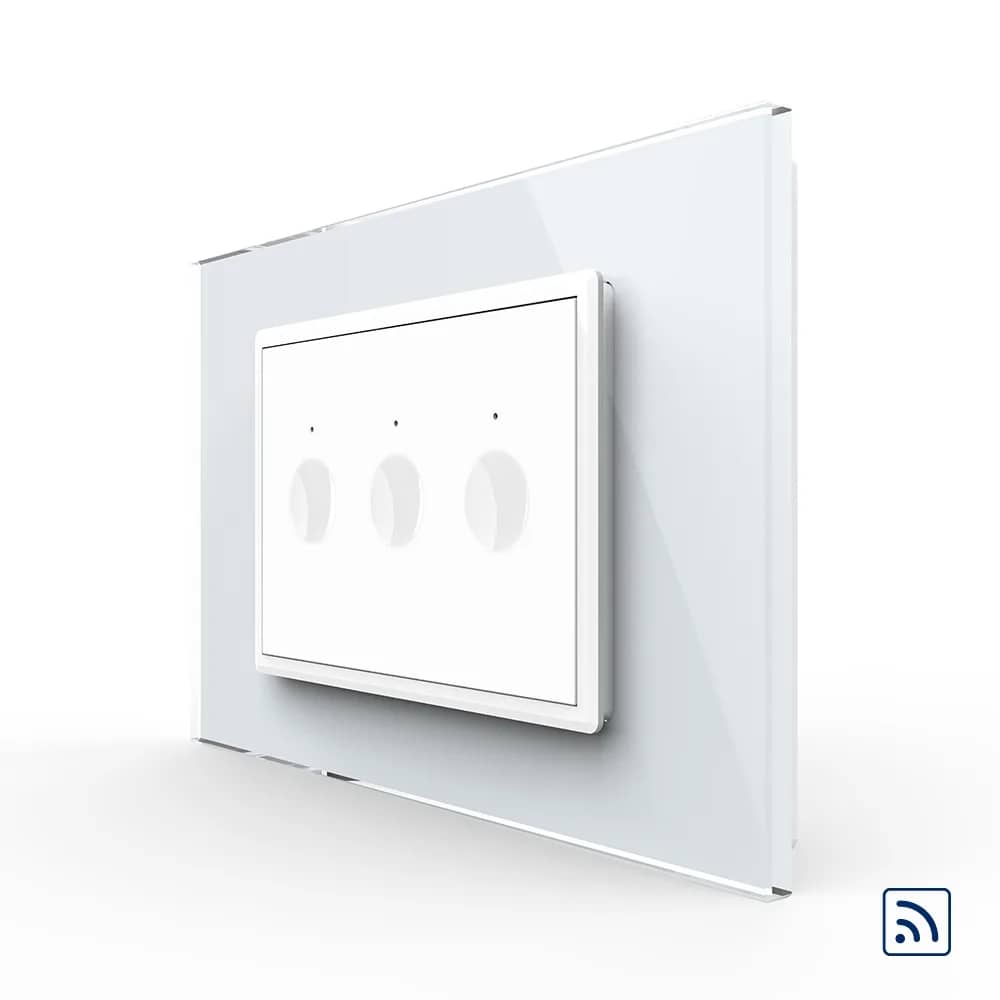

Livolo 3 gang wireless touch light switch with crystal-texture tempered glass frame, Italian standard, LED indicator and remote-control ready.
Product details
Livolo 3 gang wireless touch light switch with a glass frame, Italian standard, featuring a crystal texture, light indicator, moisture and scratch resistance, and refinement at its finest.
It can be operated:
– Directly from the switch, on/off by touch;
– With a Livolo remote control, one of 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO Hub + Livolo Remote Control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the BroadLink RM4 PRO hub as an intermediary.
Highlights
02
Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor of a smartphone.
03
Wireless Control
Wireless switches can be operated from any room, including with the VL-RMT-04 remote control. The switch can also be controlled with the Livolo VL-RMT-02 key-fob remote.
- Compatible remotes: VL-RMT-02 (key fob), VL-RMT-04
- Remote control not included – must be purchased separately
04

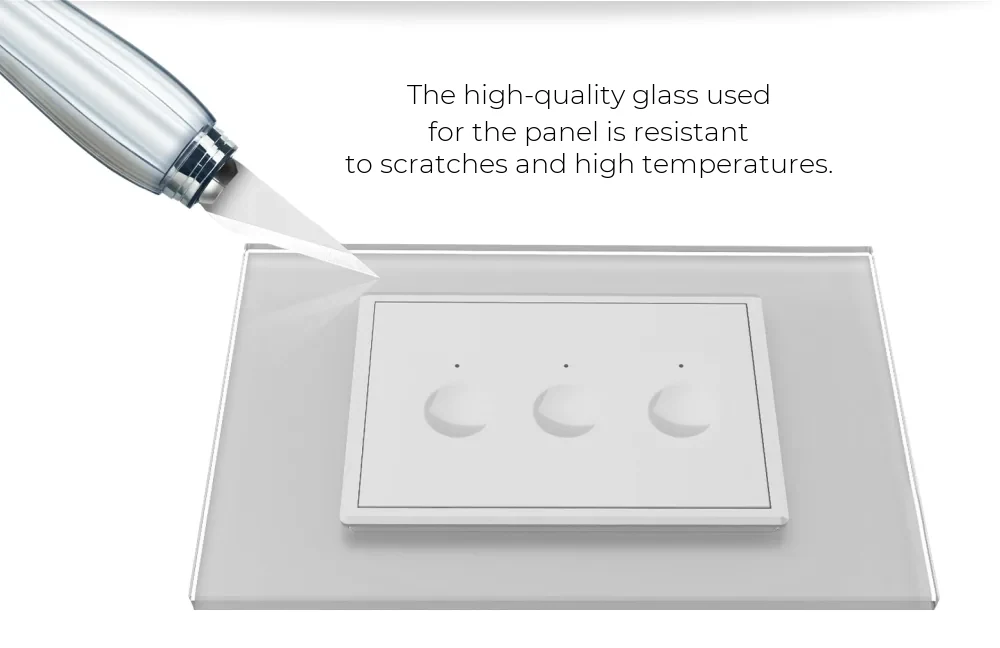

Glass Panel That Lasts
The high-quality glass panel resists scratches and high temperatures. It does not fade, so the elegant design stays intact.
05

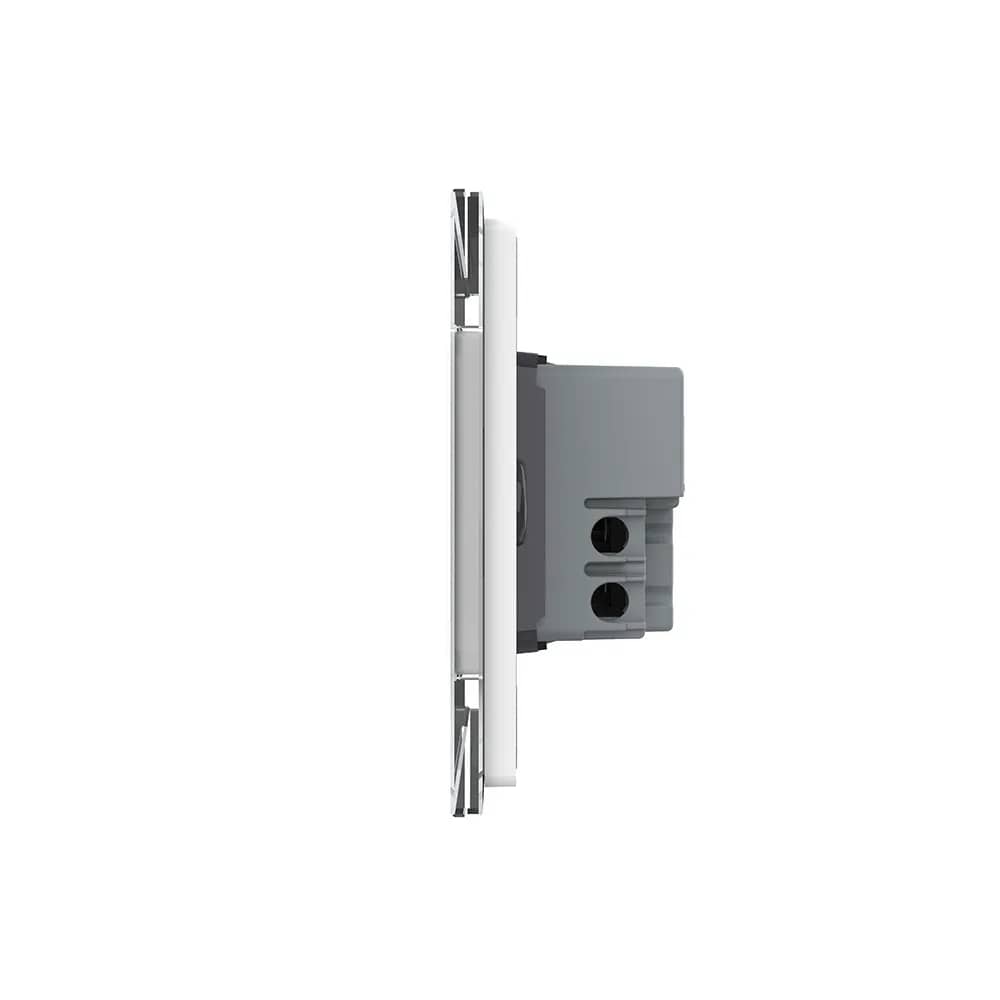

Structure
The switch consists of three main parts and is fixed with a screw mounting system.
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing distance: 85 mm
06
Technical Data
- Gangs: 3 (triple switch)
- Voltage: 100-240V~, 50/60Hz
- Load: 5A/gang, 10A total
- Terminals: L, L1, L2, L3
- Dimensions: 119 mm x 78 mm
- Panel thickness: 4 mm (frame 8 mm)
- Module depth: 24 mm
07

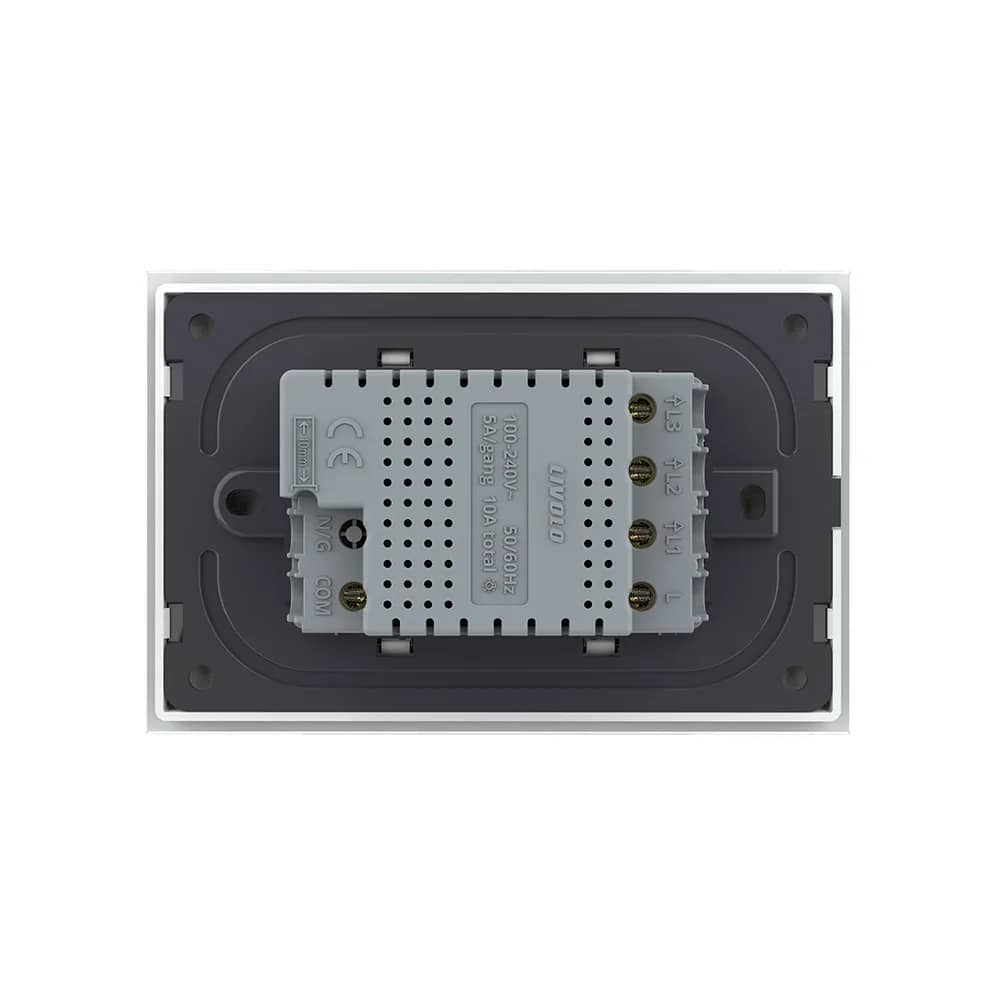

Wiring
No unnecessary cables – the new Livolo switches ensure quick and easy installation. Connect the live (L) wire to terminal L and each light to L1, L2 and L3; the neutral (N) goes to the lights.
- Live (L)
- Neutral (N)
08
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Click the front panel into place.
