Livolo Wireless Glass Touch Light Switch – 2 Gang, Italian Standard – New Series
SKU: VL-FC2R-3WP-11
AED 66
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang wireless touch switch with crystal-textured glass frame, LED indicator and remote, smartphone and voice control options.
Product details
Livolo wireless 2 gang touch light switch with glass frame, Italian standard, featuring a crystal texture, light indicator, moisture and scratch resistance – refinement at its finest.
It can be operated:
– Directly from the switch, on/off by touch;
– Using a Livolo remote control, one of 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO Hub + Livolo Remote Control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. To connect the switch with Google Home or Amazon Alexa you need the BroadLink RM4 PRO hub as an intermediary.
Highlights
02

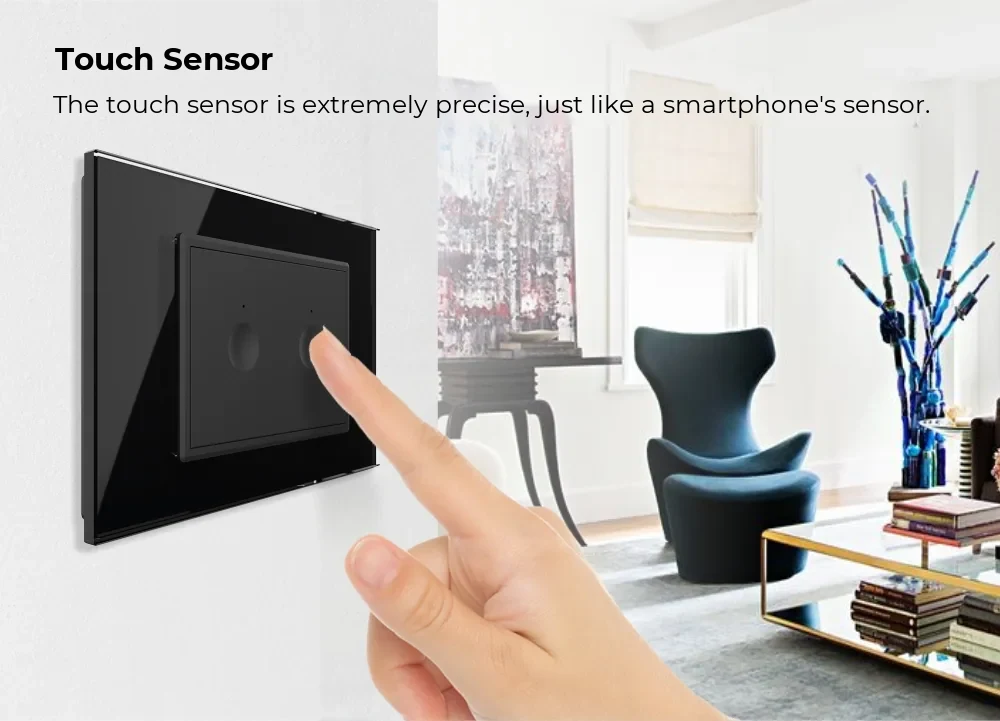

Touch Sensor
The touch sensor is extremely precise, identical to the sensor of a smartphone.
03

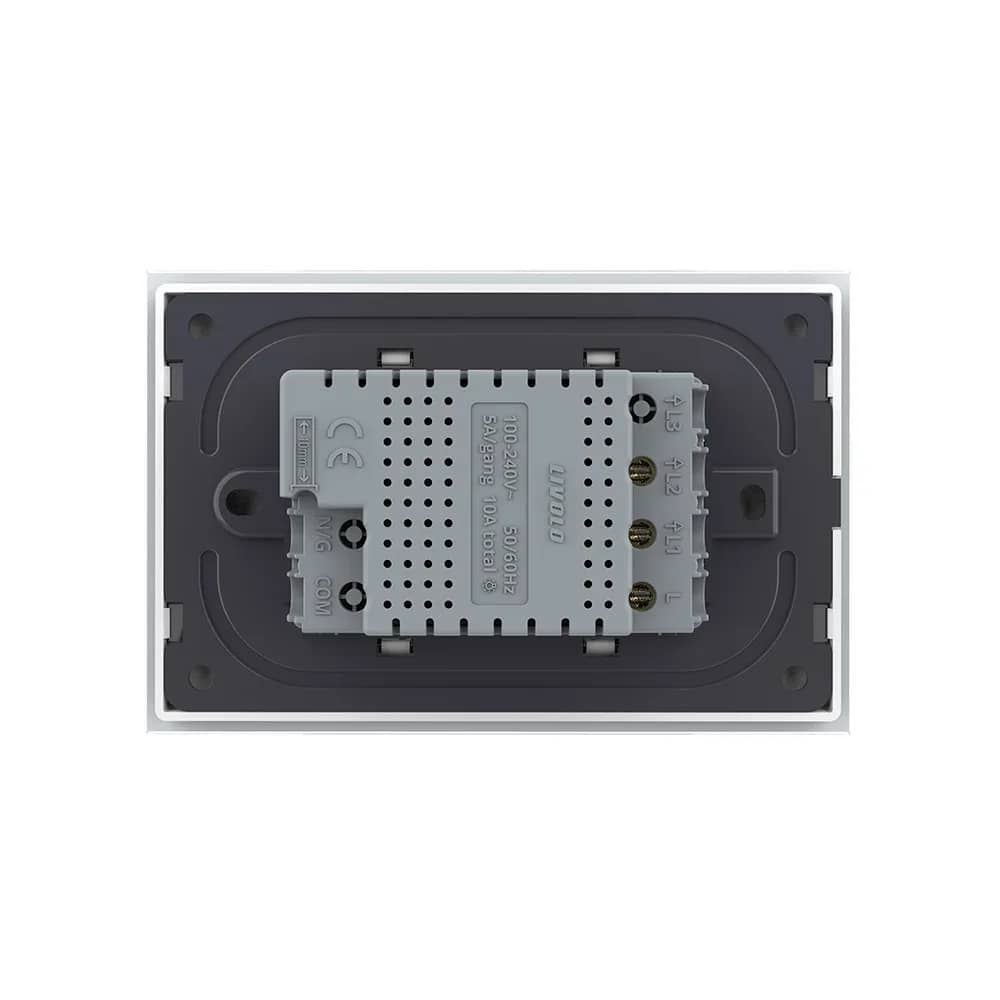

No Unnecessary Wiring
The new Livolo switches ensure quick and easy installation.
- Live (L)
- Neutral (N)
04
Does Not Discolour
The elegant design remains intact.
05

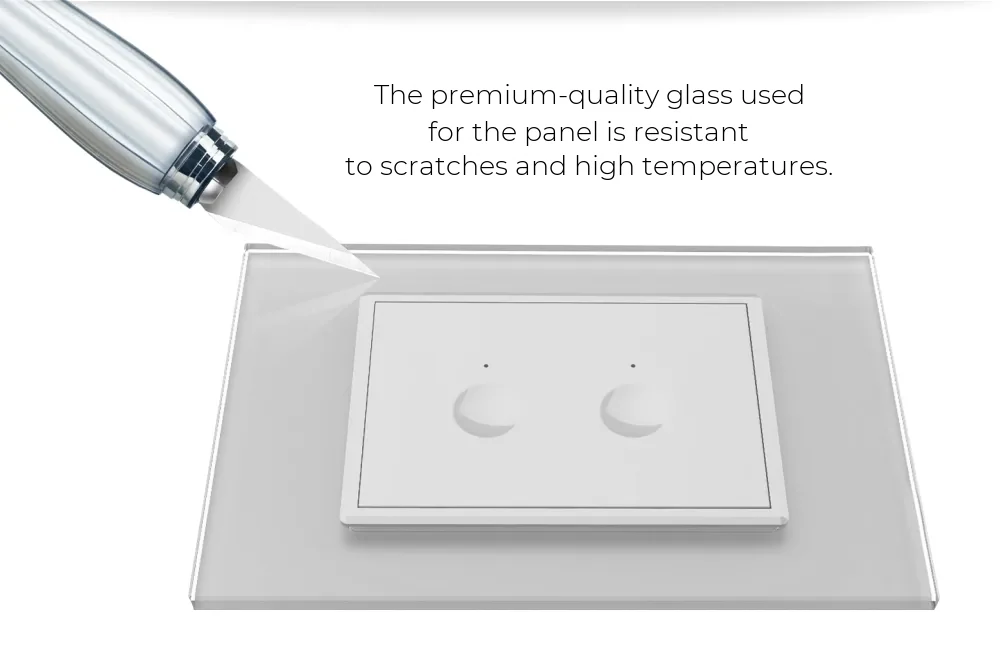

High-Quality Glass Panel
The high-quality glass from which the panel is made is resistant to scratches and high temperatures.
06
Structure
The switch consists of three main components.
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing system: 85 mm spacing
07

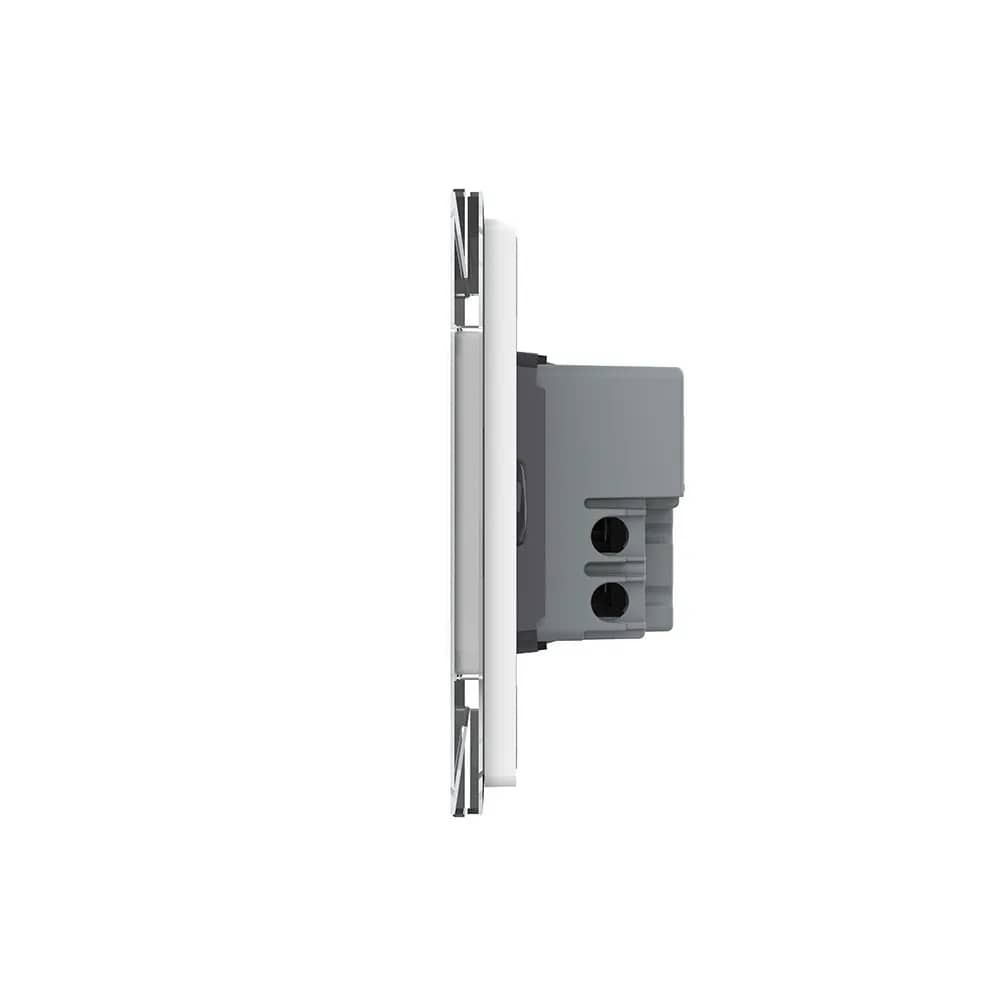

Dimensions
- Width: 119 mm
- Height: 78 mm
- Depth: 4 mm / 24 mm / 8 mm (as shown in side profile)
08
Technical Data
As printed on the switch module.
- Voltage: 100-240V~
- Frequency: 50/60Hz
- Load: 5A/gang, 10A total
09
Wiring Diagram
Double (2-gang) switch: connect the live wire to the L terminal and each light to the L1 and L2 terminals; the neutral goes directly to the lights.
10
Wireless Remote Control
The switch can be controlled with the Livolo VL-RMT-02 key fob remote, and wireless switches can also be operated from any room using the VL-RMT-04 remote. The remote control is not included and must be purchased separately.
- Compatible remote: VL-RMT-02 (key fob)
- Compatible remote: VL-RMT-04
- Remote not included
11
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
