Livolo Wireless Glass Touch Light Switch – 1 Gang, Italian Standard (New Series)
SKU: VL-FC1R-3WP-11
AED 96
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang wireless touch light switch with crystal-textured glass frame, Italian standard, remote and voice control ready.
Product details
Livolo 1 gang wireless touch light switch with glass frame, Italian standard, featuring a crystal texture and light indicator. Moisture and scratch resistant – refinement at its finest.
It can be operated:
– Directly from the switch, on/off by touch;
– With a Livolo remote control, choose from 2 models:
Livolo Key Fob Remote Control
Livolo Glass Touch Screen Remote Control (remote controls are sold separately);
– From your smartphone using the BroadLink RM4 PRO Hub + Livolo Remote Control via the Ihc for Eu app.
– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa you need the BroadLink RM4 PRO hub as an intermediary.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, identical to the sensor of a smartphone.
03
No Unnecessary Cables
The new Livolo switches ensure quick and easy installation.
- Live (L)
- Neutral (N)
04

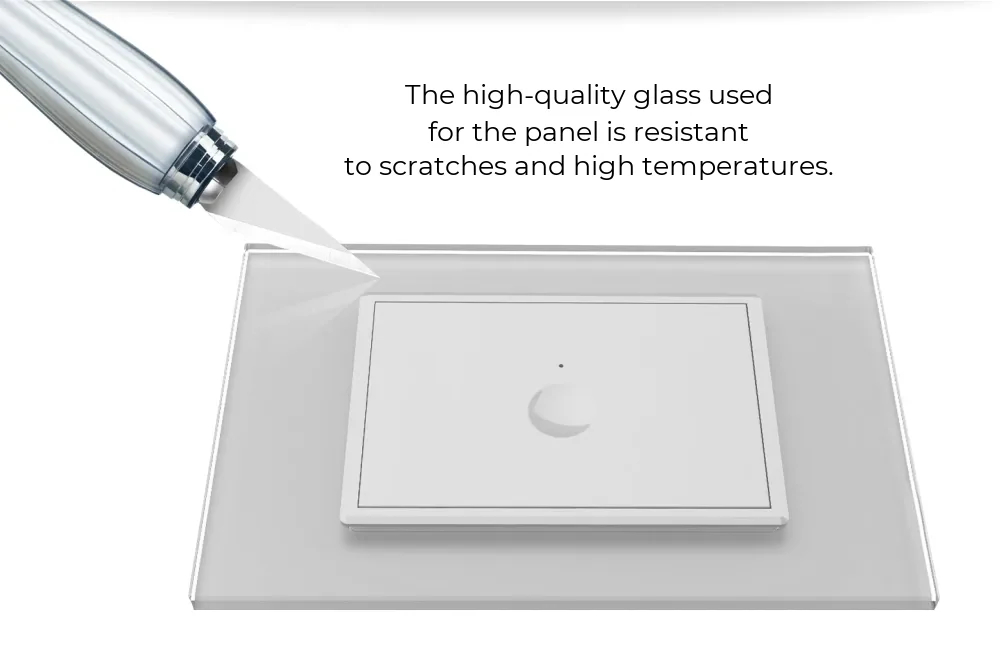

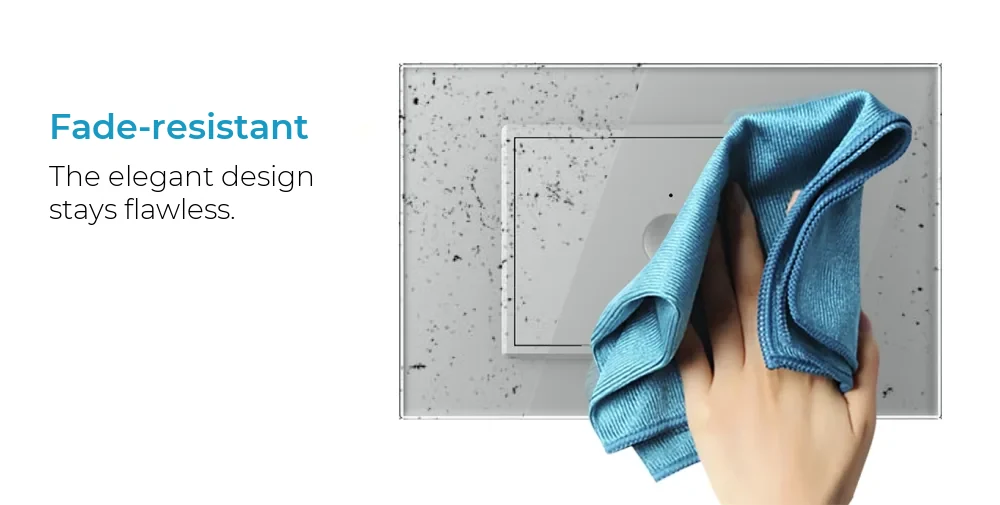

Durable Glass Panel
The elegant design stays intact and does not discolour. The high-quality glass panel resists scratches and high temperatures.
05
Wireless Control
The switch can be controlled with the Livolo VL-RMT-02 key fob remote. Wireless switches can be operated from any room using the VL-RMT-04 remote.
- Remote control is not included in the package and must be purchased separately
06
Structure
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing system
07
Technical Data
- Voltage: 100-240V~ 50/60Hz
- Load: 5A/gang, 10A total
- Panel dimensions: 119 mm x 78 mm
- Screw fixing distance: 85 mm
- Depth: 4 mm / 24 mm / 8 mm
08
Wiring Diagram
Single switch: connect live to the L terminal and the lamp to L1; neutral goes directly to the lamp.
09
Installation Steps
- 1. Open the package
- 2. Connect the cables and tighten the screws
- 3. Use the 2 screws to fix the frame
- 4. Fit the front panel (click)
