Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
Livolo
Livolo Glass Touch 3 Gang 2-Way / Intermediate Light Switch – Italian Standard, New Series
SKU: VL-FC3S-3G-11
AED 163
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo tempered glass 3 gang touch switch for 2-way/intermediate circuits, Italian standard, with red/blue LED status indicator.
Product details
The Livolo glass touch 3 gang 2-way / intermediate light switch – Italian standard – features a contemporary design that complements any modern or classic home interior.
Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch panel is made of tempered glass, resistant to high temperatures. The red/blue LED indicates the on/off status of the switch and is easy to spot in the dark.
Italian standard switches are compatible with 3-module modular back boxes with 85mm screw spacing.
A maximum of 3 switches can be connected in the circuit (intermediate)
Flush-mount back box: GEWISS 3M
Drywall back box: GEWISS 3M
Please note: back boxes are sold separately!
Highlights
02
Moisture Resistant
Suitable for use in humid environments.
03
Exceptional Quality
Flawlessly executed design and construction. The panel is made from high-quality glass that resists scratches and high temperatures.
04
Structure
- Crystal glass panel
- Switch protection
- Touch module
- Electronic chipset
- Polycarbonate support
- Metal frame
05
Technical Data
- Panel width: 119 mm
- Panel height: 78 mm
- Glass panel thickness: 4 mm

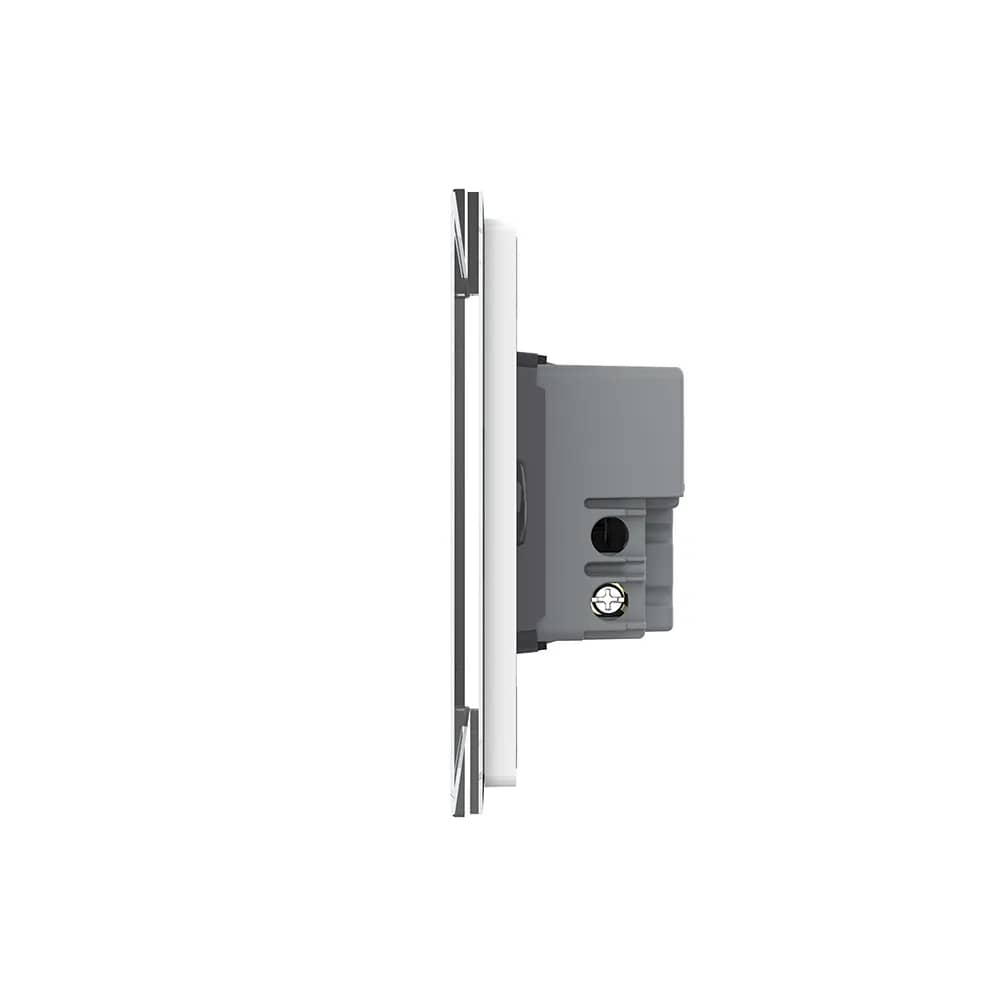

- Rear module depth: 24 mm
- Frame depth: 8 mm
- Screw fixing distance: 85 mm
- Front: glass panel
- Frame: metal
- Fixing: screw mounting system
06
Wiring Diagrams

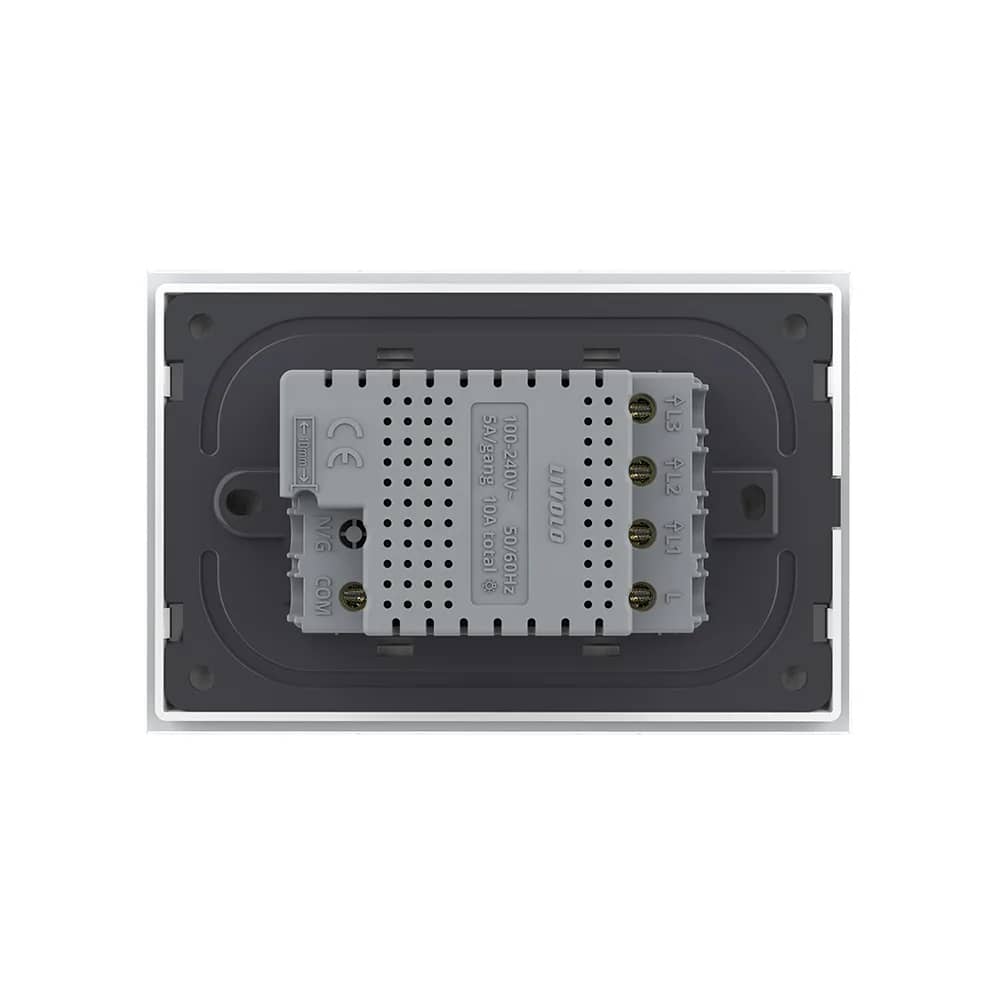

Connect the neutral (N) to the lamps and the live/phase (L) to the switch; each of the three outputs (L1, L2, L3) controls one light. For 2-way control, link two switches via the COM terminals; for control from three locations, link three switches via the COM terminals, each supplied with live (L).
- Single switch: 3 lights controlled from one location
- 2-way: two switches linked COM to COM
- Multi-way: three switches linked COM to COM
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
