Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
Livolo
Livolo Glass Touch Light Switch – 3 Gang, Italian Standard – New Series
SKU: VL-FC3-3G-11
AED 129
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 3 gang glass touch light switch, Italian standard, with tempered glass panel, 100ms touch response and red/blue status LED.
Product details
The Livolo 3 gang glass touch light switch – Italian standard features a contemporary design that complements the interior of any modern or classic home.
Livolo switches use a touch sensor with a 100ms response time, similar to the technology used in smartphones. The switch panel is made of tempered, fire-resistant glass. The red/blue LED indicates the on/off status of the switch and is easy to spot in the dark.
Italian standard switches are compatible with 3-module modular back boxes with an 85mm screw spacing.
Flush-mount back box: GEWISS 3M
Plasterboard back box: GEWISS 3M
Please note: back boxes are ordered separately!
Highlights
02

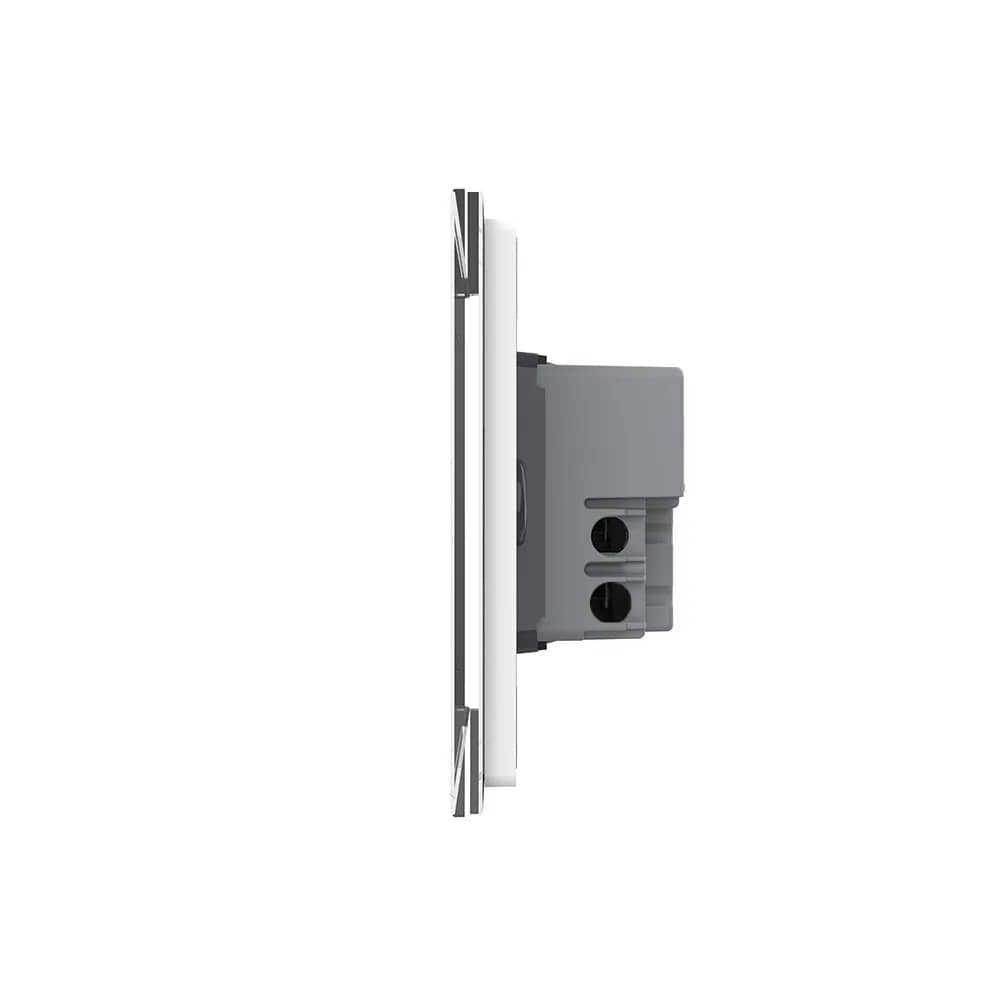

Moisture Resistant
Suitable for use in humid environments.
03

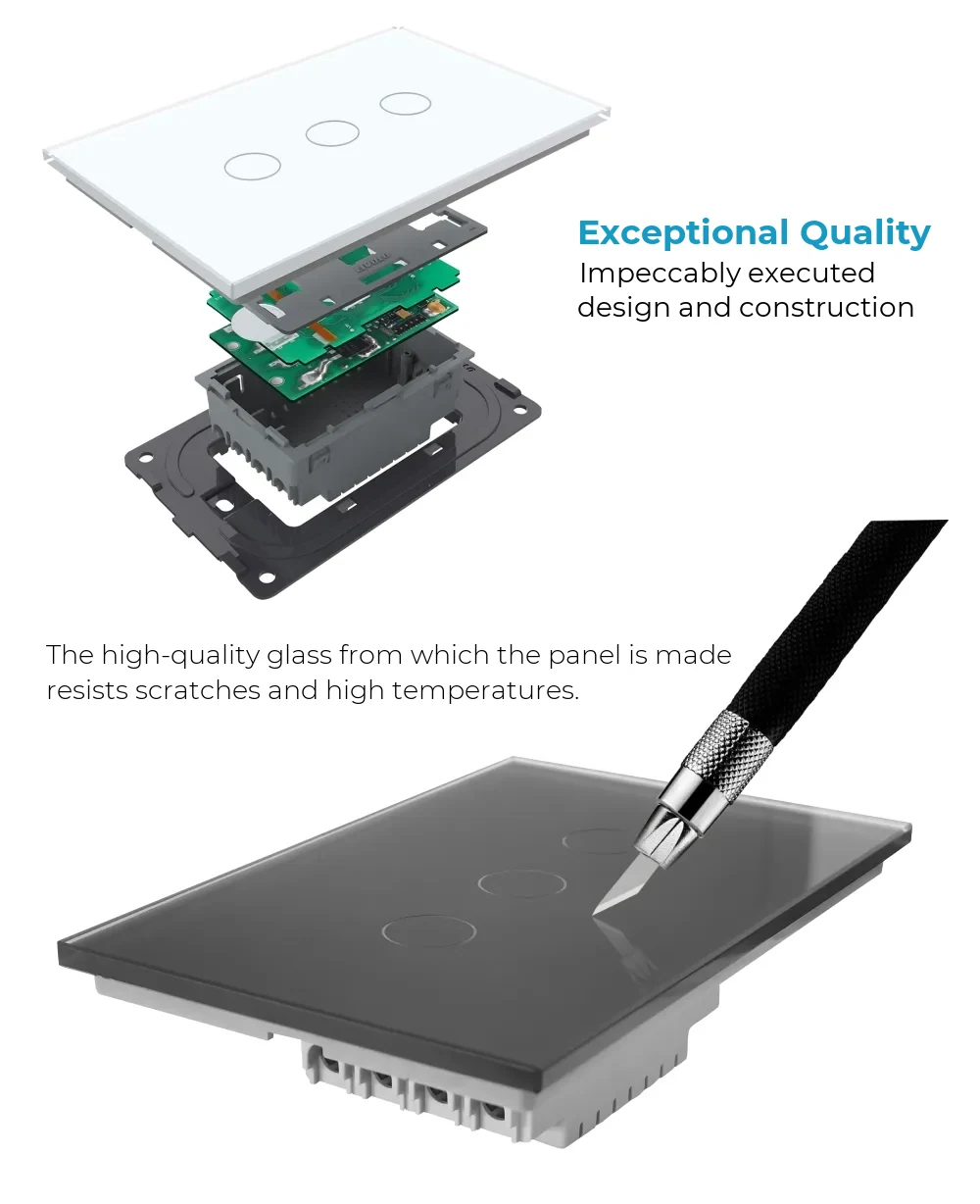

Exceptional Quality
Impeccably executed design and construction. The panel is made of high-quality glass that resists scratches and high temperatures.
04
Structure
- Crystal glass panel
- Switch protection
- Touch module
- Electronic chipset
- Polycarbonate support
- Metal frame
05
Technical Data
- Panel width: 119 mm
- Panel height: 78 mm
- Glass panel thickness: 4 mm
- Depth behind panel: 24 mm
- Frame thickness: 8 mm
- Screw fixing distance: 85 mm
- Fixing system: screws
- Front: glass panel
- Frame: metal
06

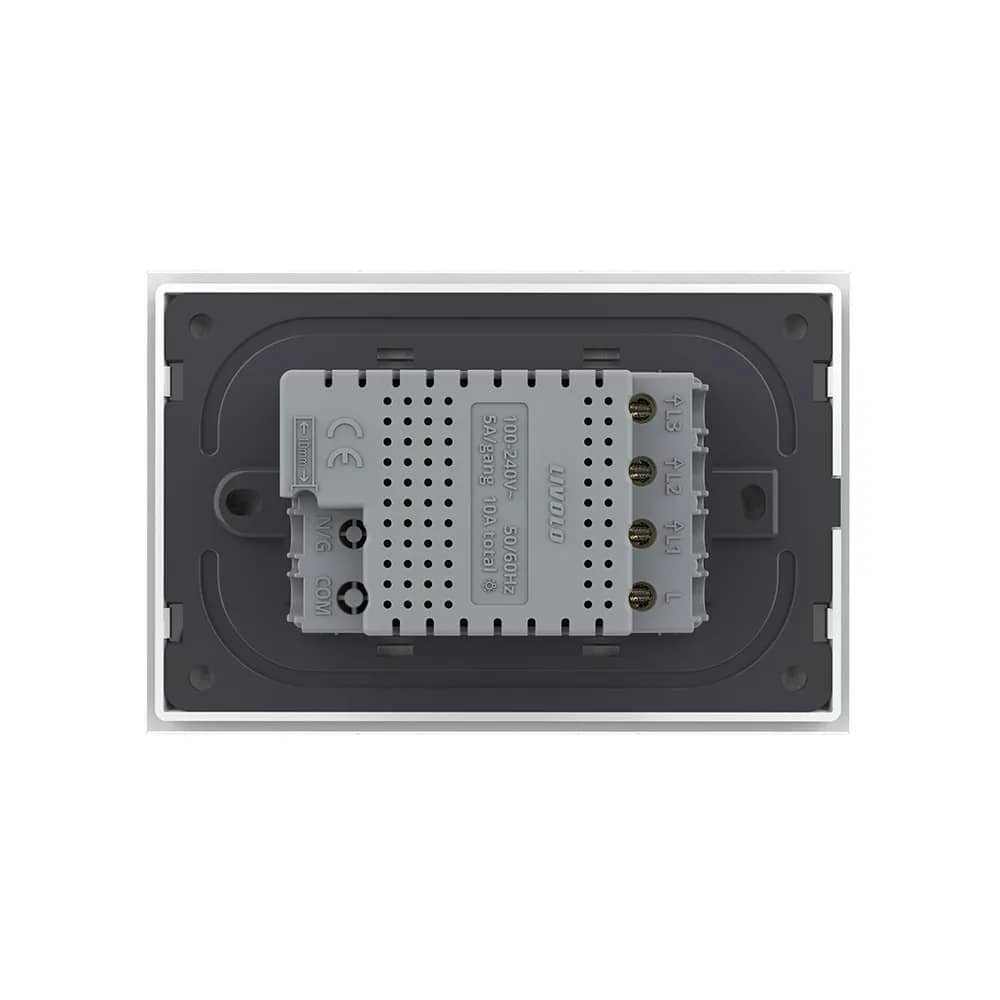

Wiring Diagram
Connect the live (phase) wire to the L terminal and the neutral wire to the lights. Each light is connected to its own output terminal: L1, L2 and L3.
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
