LIVOLO Double Touch Switch – New Series
A range of products with a simple design and an outstanding mechanism. Available in several panel colours.
Livolo
Livolo 2 Gang Tempered Glass Touch Light Switch – New Series
SKU: VL-FC2-2G-2W
AED 96
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo new-series 2 gang touch light switch in tempered glass, with faster response, low standby consumption and 5A per circuit.
Product details
The new-series Livolo 2 gang touch light switch is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
Improvements over the previous series:
- → Compatible with more types of light bulbs
- → Faster response time when the touch panel is pressed
- → More powerful, robust chip – made in Japan
- → Reduced standby power consumption
- → Compact design (smaller dimensions than the previous model)
- → Maximum supported load of 5A per circuit
Highlights
02

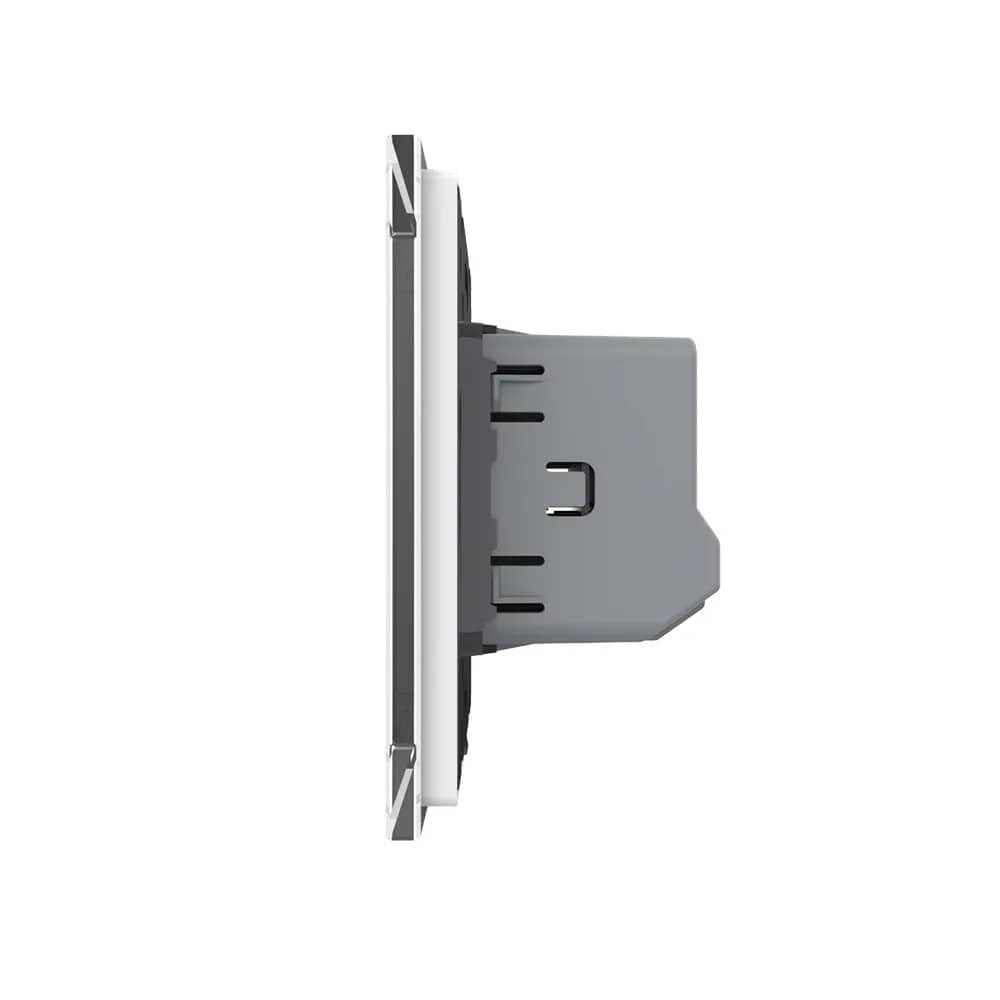

Improved Performance
The new series is an improved version of the previous model, offering unrivalled performance with low energy consumption.
- Slimmer profile than the old model
- Panel thickness: 4 mm
- Module depth: 33 mm
- Frame spacing: 8 mm
03
Light Indicator
Red and blue LEDs show whether the switch is on or off, making it easy to find in the dark.
- Red LED: switch is on
- Blue LED: switch is off
- LED lights up clearly and the switch gives a clear sound
- MCU smart chip with built-in microchip technology
04
Fade-Resistant Finish
The panel does not discolour, so its elegant design stays intact.
05
Structure
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing system with 60 mm spacing
06

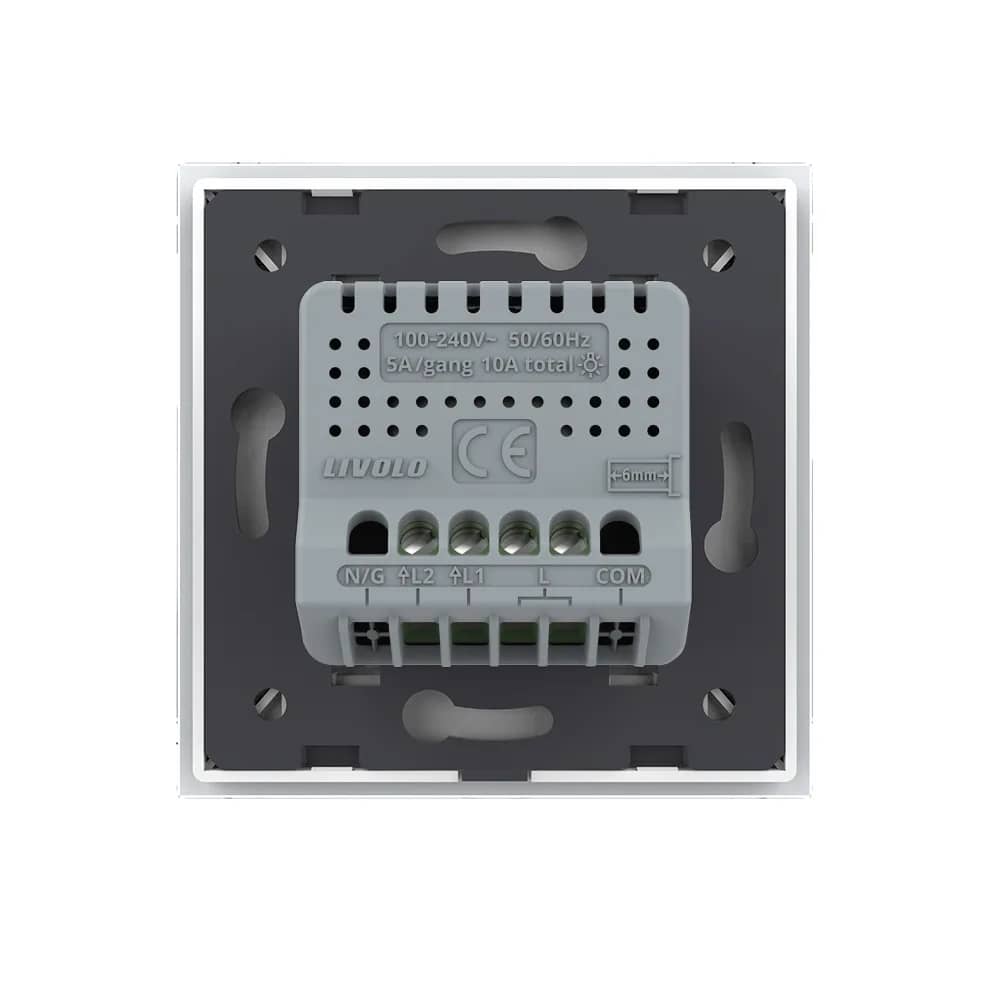

Technical Data
- Voltage: 100-240V~ 50/60Hz
- Load: 5A/gang, 10A total
- Terminals: N/G, L2, L1, L, COM
- Dimensions: 80 mm x 80 mm
- Glass panel thickness: 4 mm
- Module depth: 33 mm
07
Wiring Diagram
Connect the live wire (L) to the L terminal, and the two lamp circuits to the L1 and L2 terminals; the lamps are connected to the neutral wire (N).
08
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel until it clicks into place.
