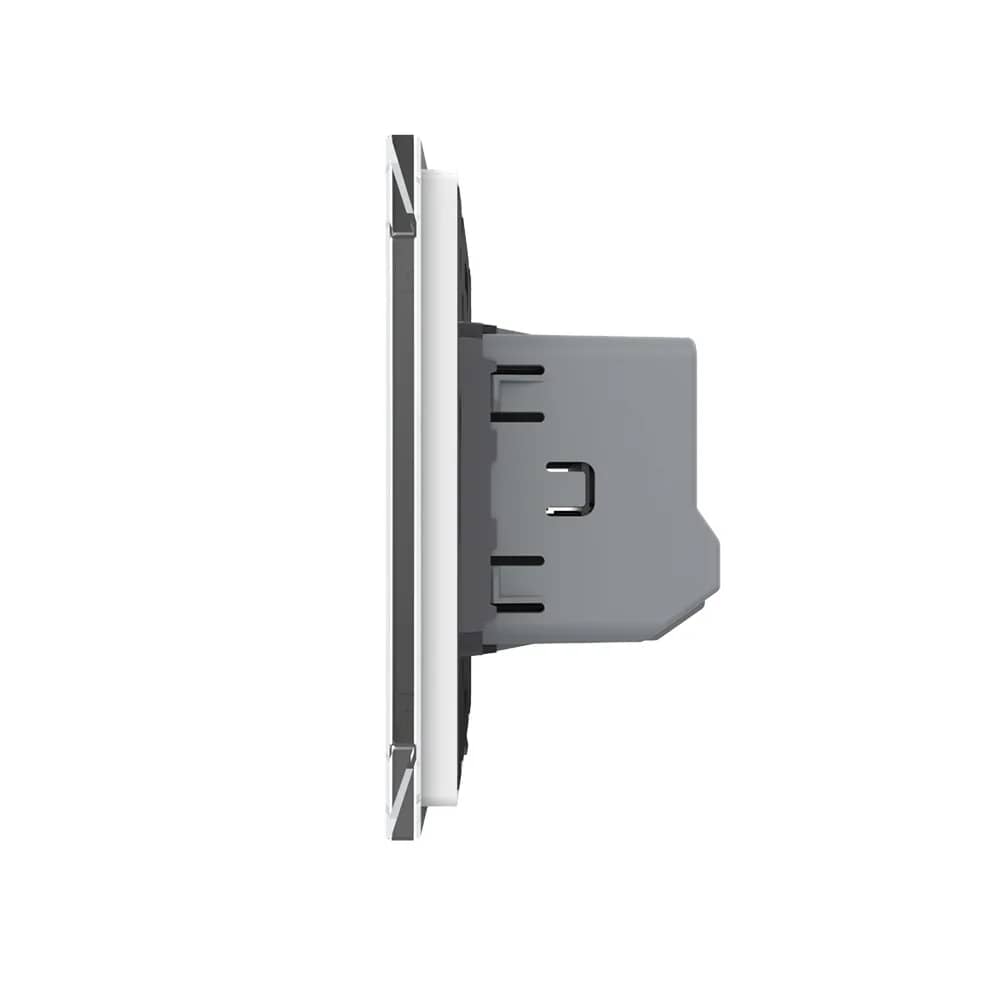

Livolo Wi-Fi Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series – White — image 3
1/3
Livolo

Livolo Wi-Fi Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series

SKU: VL-FC2SNY-2G-3W

AED 188

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo tempered glass Wi-Fi touch switch, 2 gang 2-way/intermediate, Italian standard, with blue/red LED indicator. Available in four colours.

Product details

Livolo 2 gang 2-way / intermediate glass light switch with Wi-Fi and touch control – Italian standard – with a blue LED when the switch is off and a red LED when the switch is on, making it easy to use in the dark. Resistant to scratches and humidity, it will always look flawless. Suitable for homes, offices, restaurants, conference rooms and luxury hotels.

Italian standard switches are compatible with 3-module modular wall boxes with 85mm spacing between the screws.

Highlights

Livolo Wi-Fi Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series – Livolo Double 2-Way / Intermediate Touch Switch
01

Livolo Double 2-Way / Intermediate Touch Switch

A double touch light switch for two-way (staircase) and intermediate circuits, built to the Italian standard. Simple design, outstanding mechanism, available in a variety of finishes.

  • 2 touch buttons
  • 2-way / intermediate switching
  • Italian standard
  • Available in white, black, gold and grey
Livolo Wi-Fi Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series – Important Compatibility Notice
02

Important Compatibility Notice

2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do NOT work with other brands.

Livolo Wi-Fi Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series – Technical Data
03

Technical Data

  • Voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: OUT2, OUT1, N, L, COM
Livolo Wi-Fi Touch Light Switch – 2 Gang 2-Way / Intermediate, Italian Standard – New Series – Wiring Diagram
04

Wiring Diagram

Connect the two switches with Live (L) and Neutral (N), and link their COM terminals with the 2-way / intermediate wire. The lights are connected to OUT1 and OUT2.

  • Live (L)
  • Neutral (N)
  • 2-way / intermediate link (COM to COM)
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Click the front panel into place.
