Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11)

SKU: VL-FC1SNY-2WP-11

AED 163

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo new-series Wi-Fi touch switch, 1 gang 2-way/intermediate in White – connects directly to your router, no hub needed, controlled via the Livolo Home app.

Product details

The Livolo new-series Wi-Fi touch light switch, 1 gang 2-way / intermediate, is an improved and innovative product, the result of technology developed through years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square back box with 60mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.

A neutral wire is required for operation

A maximum of 3 switches can be connected in the circuit (intermediate)

For app control, the Livolo Home app must be installed.

Improvements over the previous series:

  • → Compatible with more types of bulbs
  • → Faster response when the touch panel is pressed
  • → More powerful and robust chip – made in Japan
  • → Reduced stand-by power consumption
  • → Compact design (smaller dimensions than the previous model)
  • → Maximum supported load of 5A / circuit

Highlights

Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – Livolo Wi-Fi Touch Switch – 1 Gang, 2-Way / Intermediate
01

Livolo Wi-Fi Touch Switch – 1 Gang, 2-Way / Intermediate

A single touch light switch for two-way (staircase) and intermediate (cross) circuits, with Wi-Fi control. Simple design, outstanding mechanism, available in a variety of finishes.

  • 1 gang touch control
  • 2-way / intermediate switching
  • Wi-Fi connectivity
Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – Improved New Series
02

Improved New Series

Unmatched performance with low energy consumption. The new series is an improved version of the previous model, with a slimmer profile.

  • Front panel projection: 4 mm
  • Module depth: 33 mm
  • Panel thickness: 8 mm
Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – Precise Touch Sensor
03

Precise Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – Durable Glass Panel
04

Durable Glass Panel

The panel is made from high-quality glass that resists scratches and high temperatures. It does not discolour, so the elegant design stays intact.

  • Scratch-resistant glass
  • Resistant to high temperatures
  • Does not discolour
Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – App Control
05

App Control

Change the atmosphere of your home with a simple touch. Open the Livolo app to customise your home lighting as you wish.

  • Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
  • Install the LIVOLO HOME mobile app for app control
Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – Structure
06

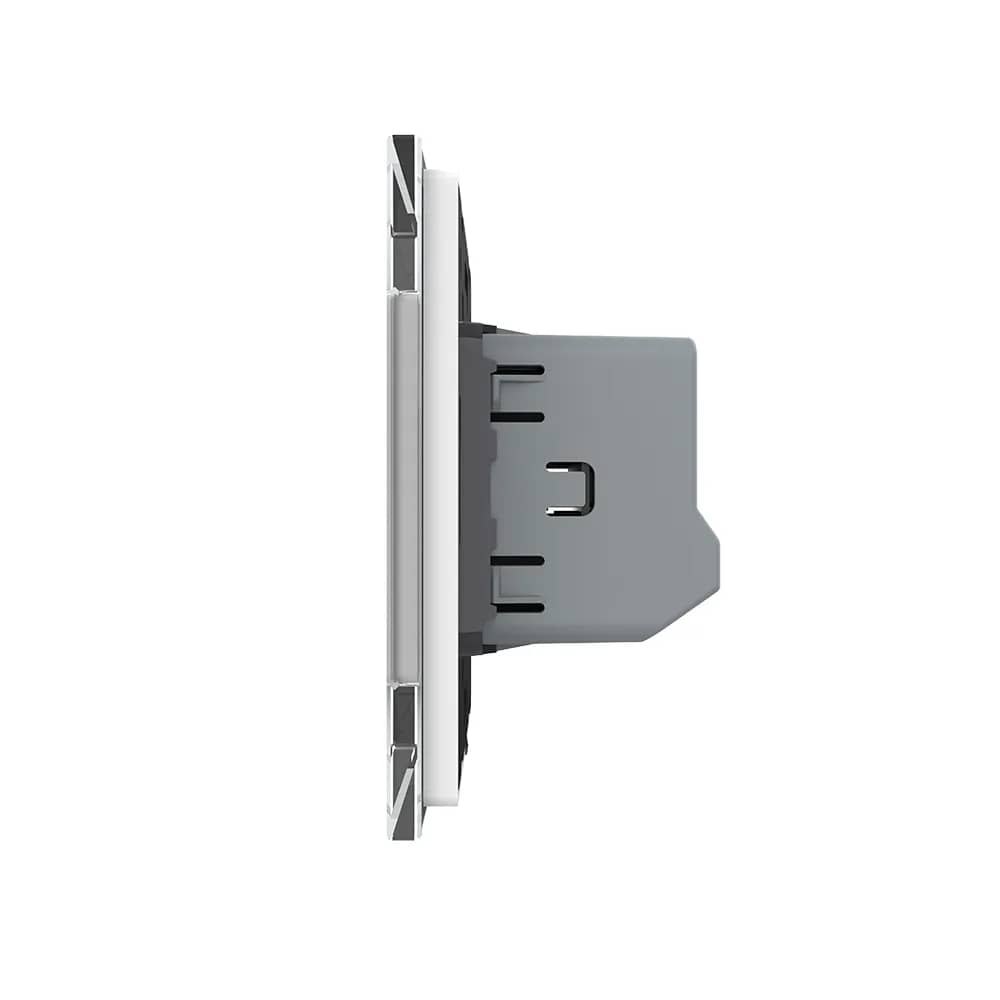

Structure

The switch consists of three parts and is fixed with a screw mounting system.

  • Glass frame
  • Switch module
  • Metal frame
07

Dimensions

  • Panel size: 80 mm x 80 mm
  • Screw mounting spacing: 60 mm
  • Front projection: 4 mm
  • Module depth: 33 mm
  • Panel thickness: 8 mm
08

Wiring Diagram

Two switches are wired in a 2-way / intermediate configuration: Live (L) and Neutral (N) to each switch, linked via the COM terminals, with the lamp connected to the output.

  • Live (L)
  • Neutral (N)

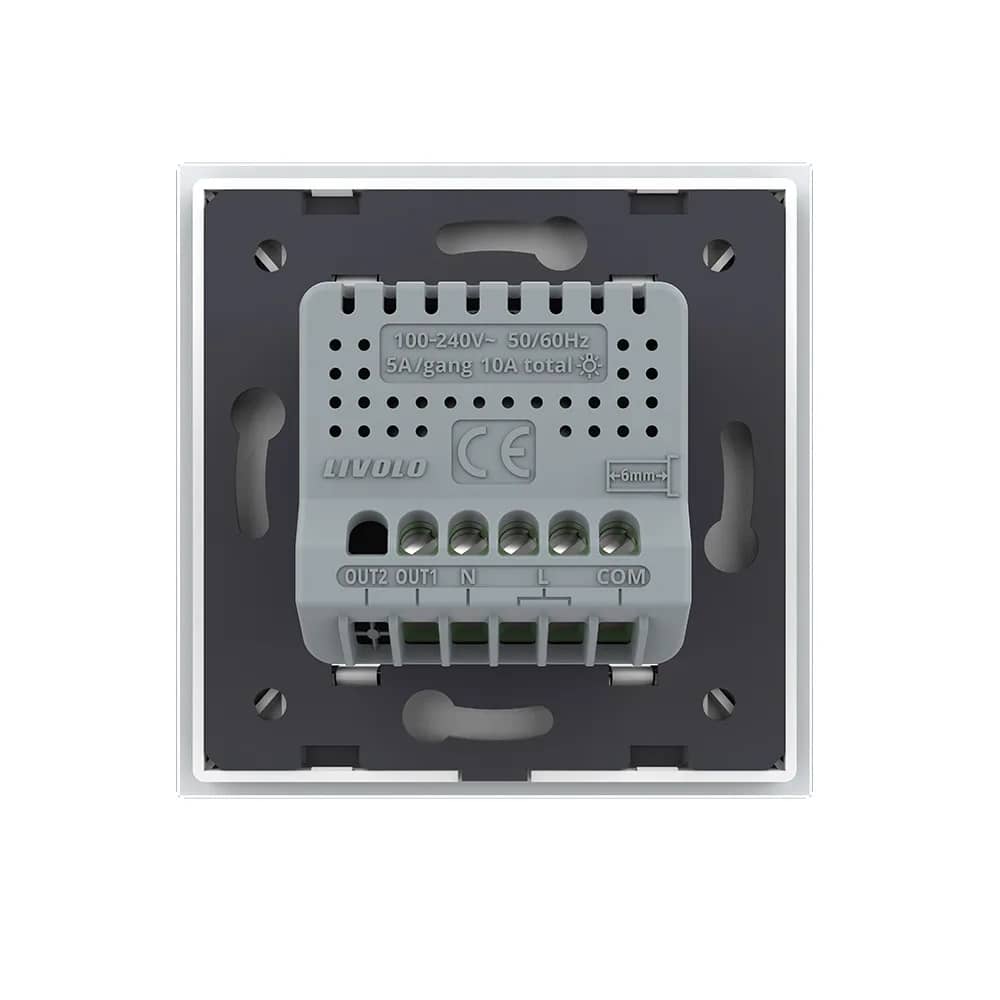

  • Terminals: OUT2, OUT1, N, L, COM
  • Rating marked on module: 100-240V~ 50/60Hz, 5A/gang, 10A total
09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, New Series, White (VL-FC1SNY-2WP-11) – detail 1

The Livolo touch panel in action

Official Livolo video
