Livolo Wi-Fi Triple Touch Switch – Italian Standard
A simple design with an extraordinary mechanism. This 3-gang Wi-Fi touch light switch follows the Italian standard and is part of a range available in several finishes.
Livolo
Livolo Wi-Fi Touch Light Switch – 3 Gang, Italian Standard, New Series, White (VL-FC3NY-3WP-11)
SKU: VL-FC3NY-3WP-11
AED 208
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 3 gang Wi-Fi touch light switch, Italian standard, in white – connects directly to your router, no hub needed, controlled via the Livolo Home app.
Product details
The Livolo 3 gang Wi-Fi touch light switch from the new series is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a modular wall box (3 modules) with 85mm screw spacing.
Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.
They require a neutral wire to operate.
For app control, the Livolo Home app must be installed.
Highlights
02

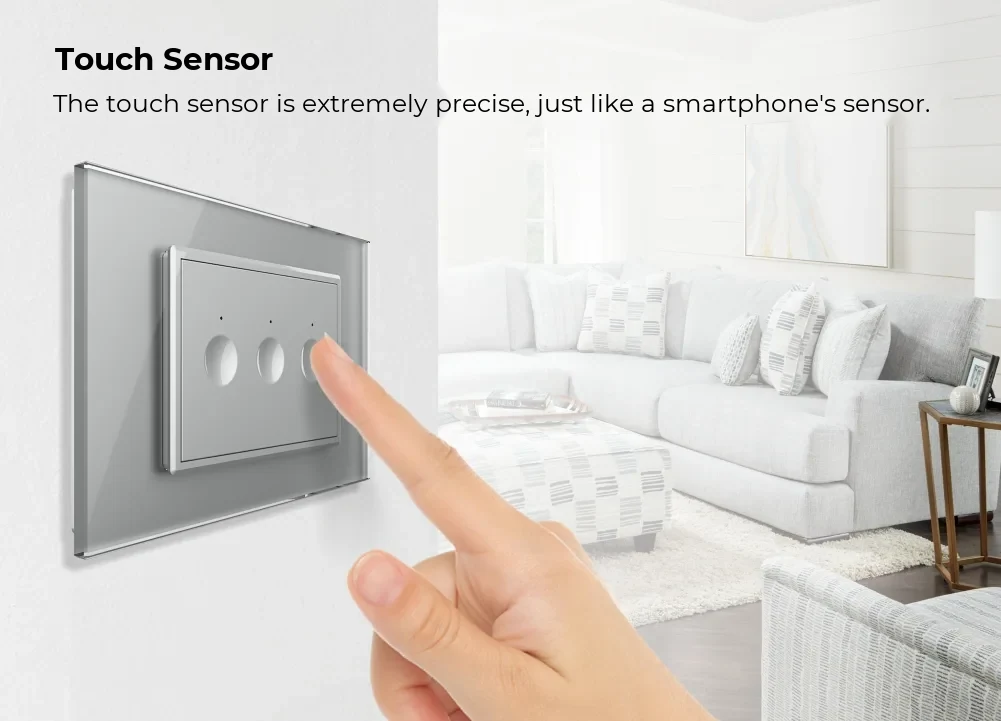

Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
03
App Control
Change the atmosphere of your home at the touch of a button. Open the Livolo app to customise your home lighting exactly as you like.
- Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
- To control the switch from your phone, install the LIVOLO HOME mobile app
04
Structure and Dimensions
The switch consists of a glass frame, the switch module and a metal mounting frame, fixed with a screw system.
- Glass frame / glass panel
- Switch module
- Metal frame
- Screw fixing spacing: 85 mm
- Front dimensions: 119 mm x 78 mm

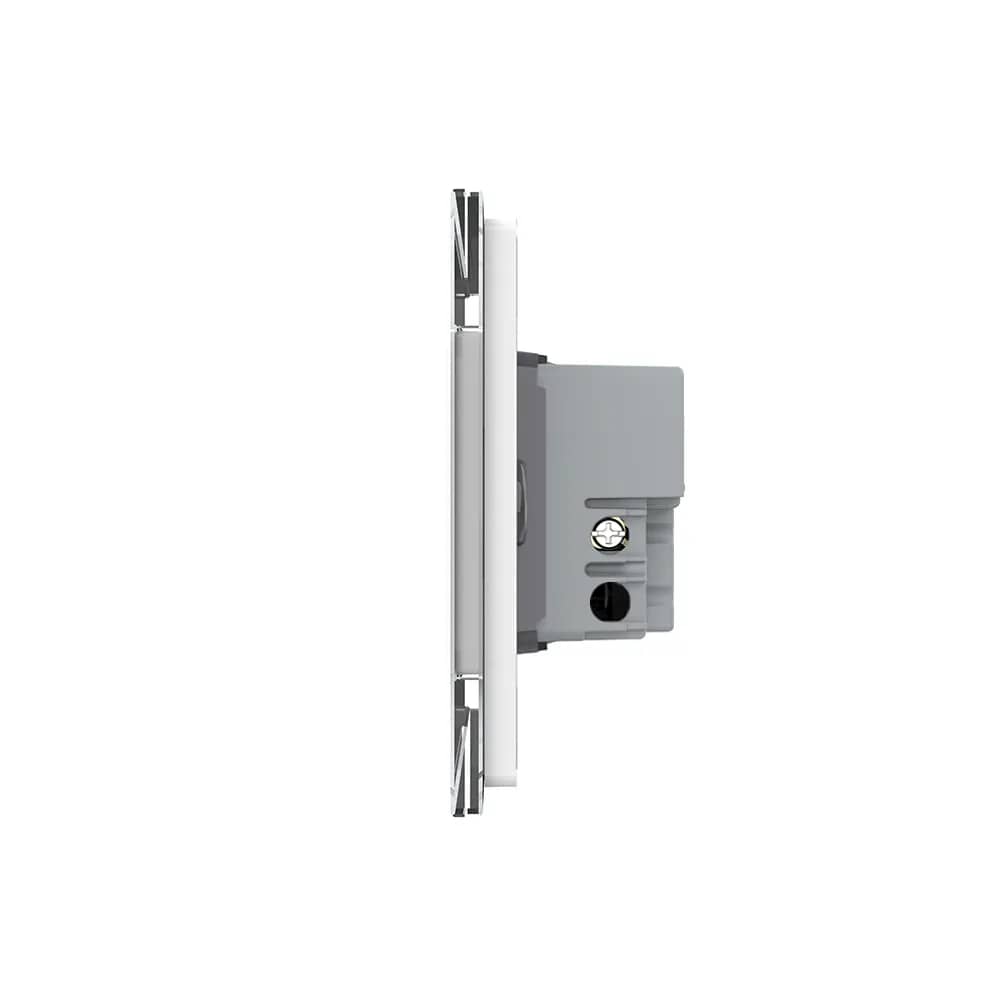

- Depth: 4 mm, 24 mm and 8 mm (as shown in the side profile diagram)
05
Wiring Diagram

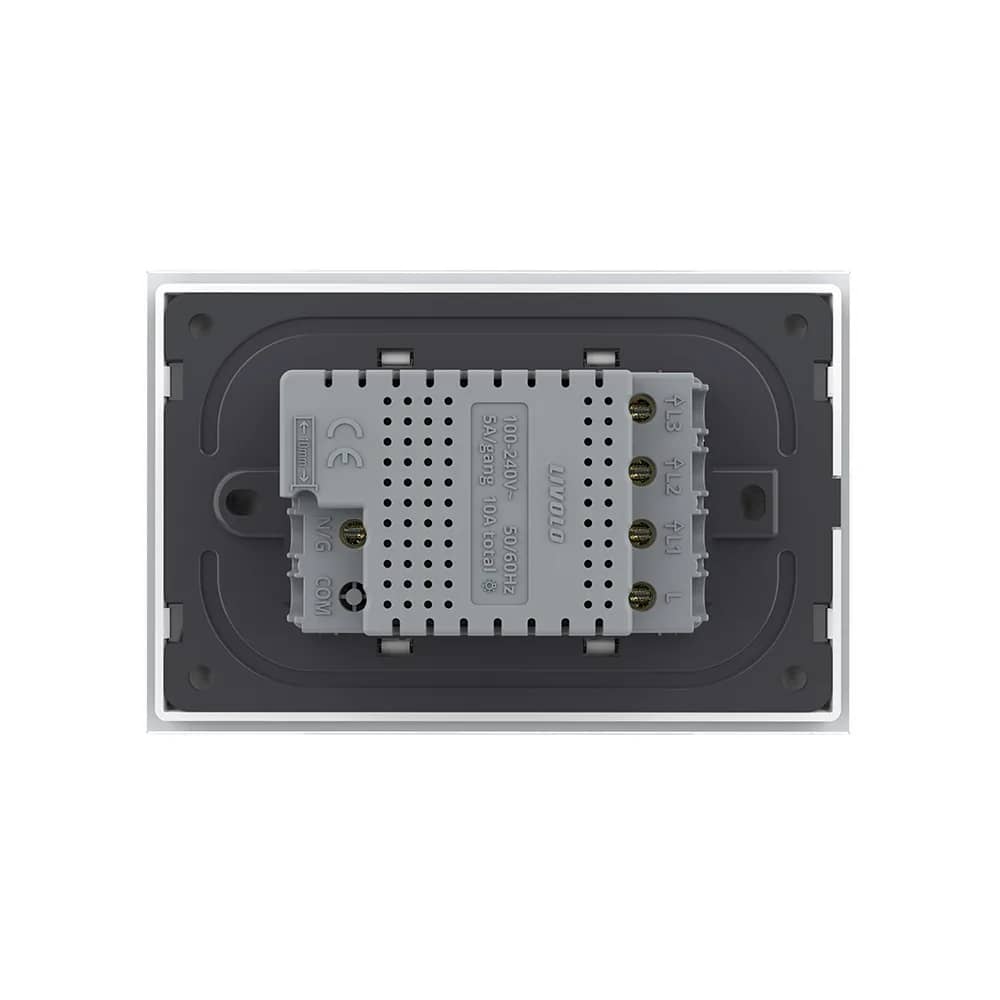

Connect the neutral and live wires to the switch, and each of the three lights to outputs L1, L2 and L3.
- Rating printed on module: 100-240V~ 50/60Hz
- 5A/gang, 10A total
06
Installation Steps
- 1. Open the package
- 2. Connect the wires and tighten the screws
- 3. Use the 2 screws to fix the frame
- 4. Fit the front panel (it clicks into place)
07
Tested for Durability
- Tempered glass panels offer surface hardness greater than 4H, keeping the switch clean and scratch-resistant over the long term
- Galvanised parts show no signs of corrosion after high-temperature and saturated salt spray testing
- Surface and functionality remain as new after testing in extreme high, low and constant temperature and humidity conditions
- Endurance tests indicate an average service life of over 100,000 operations
- High-voltage resistance tested
