Livolo

Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11)

SKU: VL-FC3SNY-3WP-11

AED 244

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo new-series 3 gang 2-way/intermediate Wi-Fi touch switch in White, Italian standard, connects straight to your router with no hub needed.

Product details

The Livolo new-series 3 gang 2-way / intermediate Wi-Fi touch light switch is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a modular back box (3 modules) with 85mm screw spacing.

Livolo 2-way / intermediate Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.

They require a neutral wire to operate.

To control the switch from your phone, install the Livolo Home app.

A maximum of 3 switches can be connected in one circuit (intermediate wiring)

Highlights

Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – Triple 2-Way / Intermediate Wi-Fi Touch Switch
01

Triple 2-Way / Intermediate Wi-Fi Touch Switch

A Livolo triple touch switch for 2-way and intermediate (cross) circuits, built to the Italian standard. Simple design, outstanding mechanism, available in a range of finishes.

  • 3 gang touch control
  • 2-way / intermediate (cross) switching
  • Wi-Fi connectivity
  • Italian standard size
Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – Important Compatibility Notice
02

Important Compatibility Notice

2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do NOT work with other brands.

Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – Touch Sensor
03

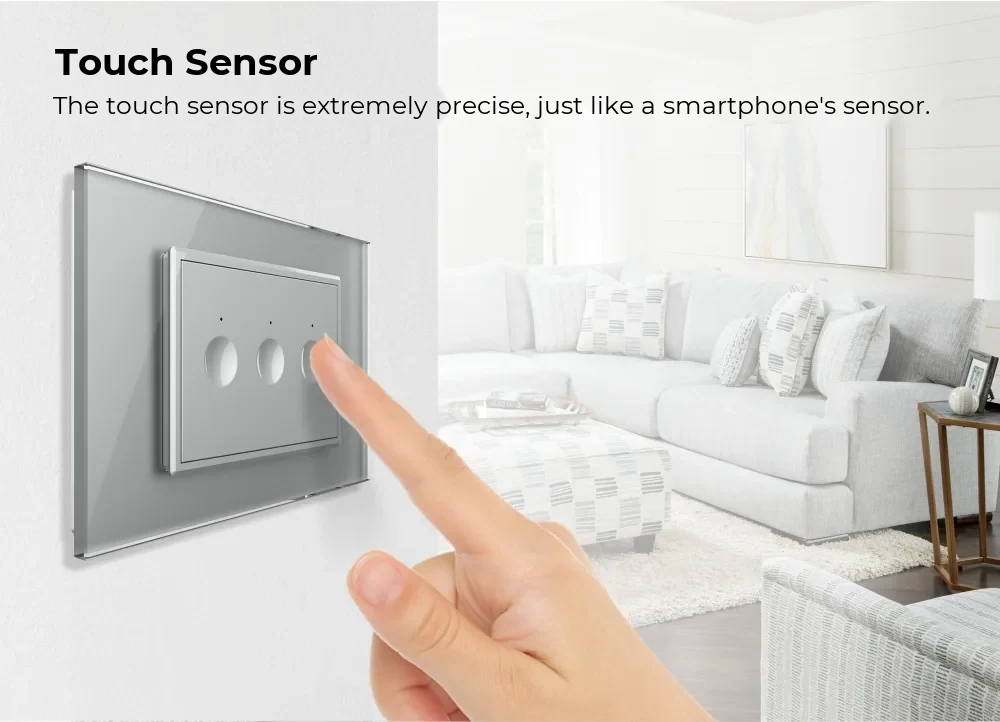

Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – App Control
04

App Control

Change the atmosphere of your home at the touch of a button. Open the Livolo app to customise your home lighting exactly as you like.

  • Livolo Wi-Fi switches connect directly to your Wi-Fi router – no hub required
  • App control requires the LIVOLO HOME mobile app
  • Organise devices by room, scenes and automation
Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – Structure
05

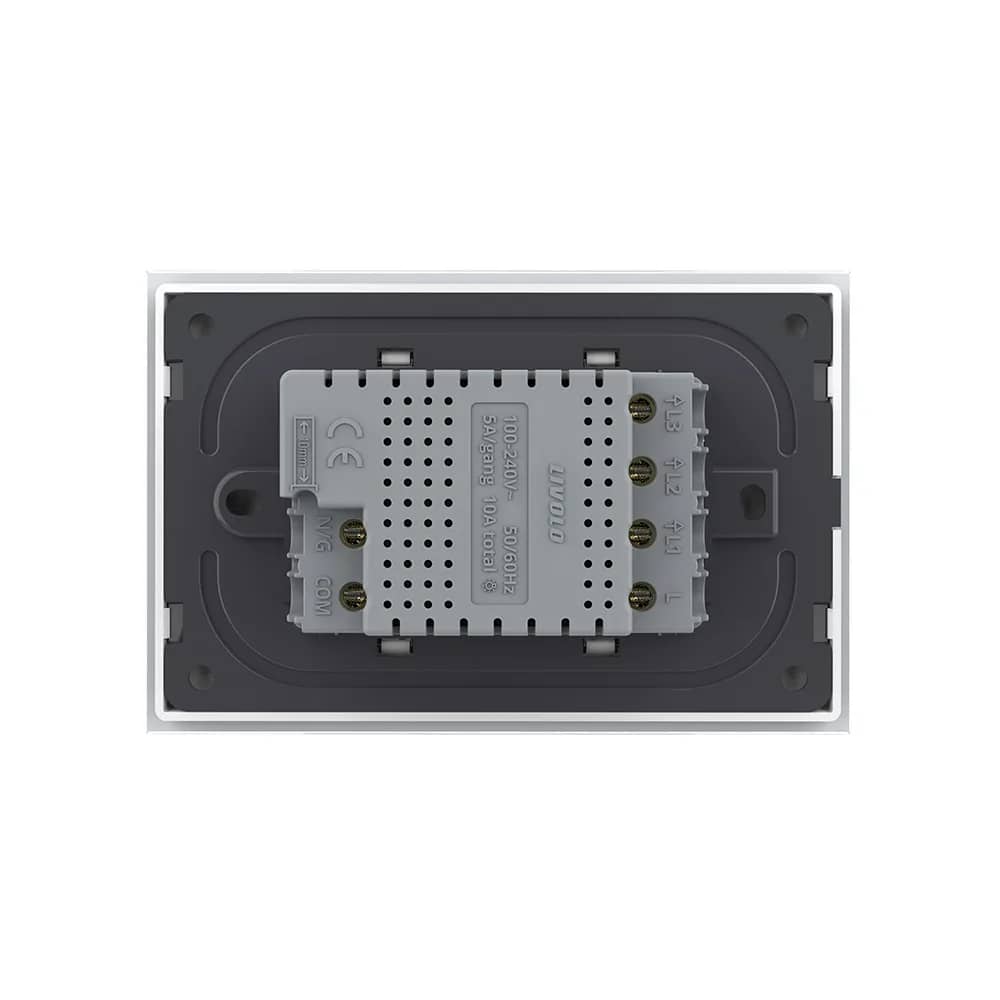

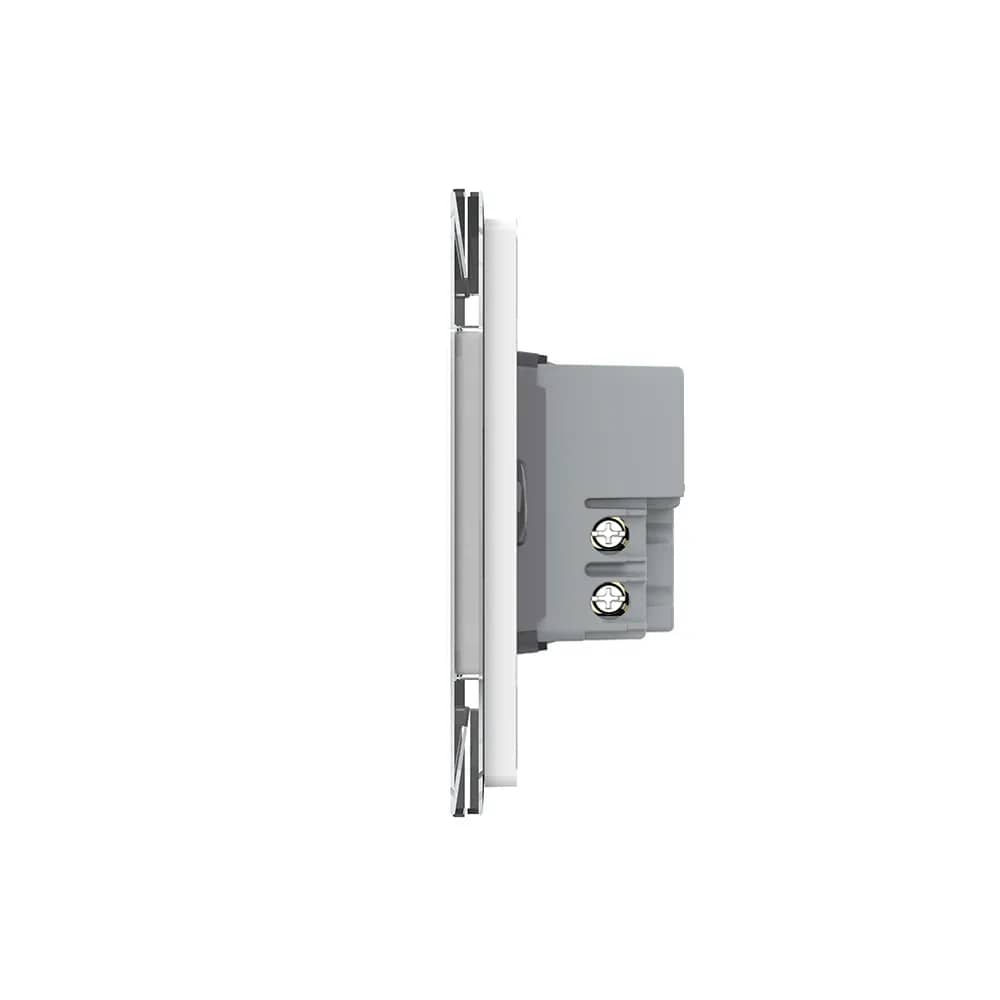

Structure

The switch consists of a glass frame, a switch module and a metal mounting frame.

  • Glass frame / glass panel
  • Switch module
  • Metal frame
  • Screw fixing system: 85 mm
Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – Dimensions
06

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Depth (rear): 24 mm
  • Panel thickness: 4 mm
  • Front protrusion: 8 mm
07

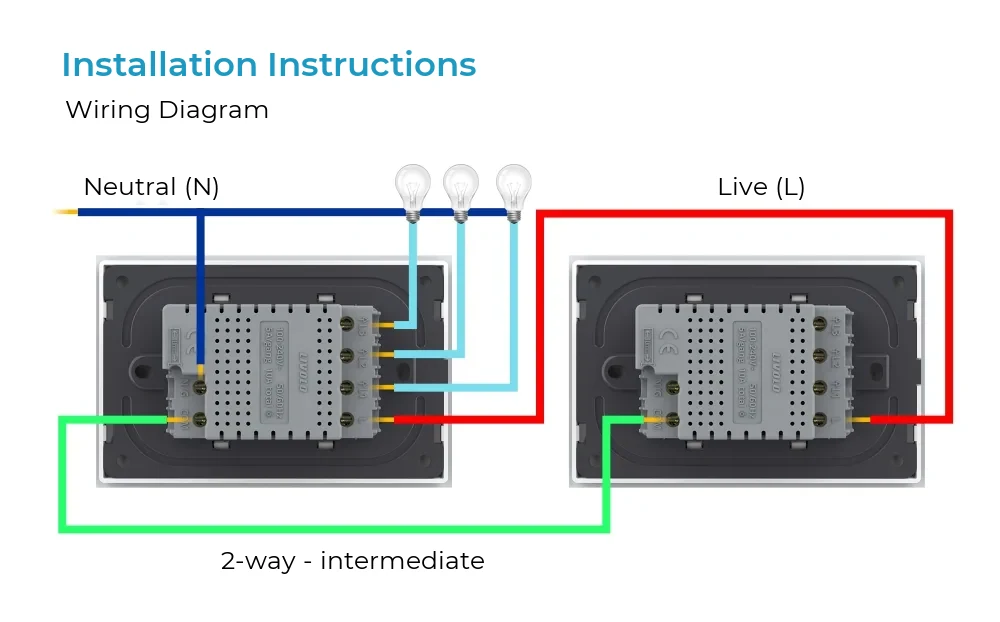

Wiring Diagram

Connect neutral (N) and live (L) as shown, with the three light outputs on the first switch and the two switches linked by the 2-way / intermediate wire.

  • Neutral (N)
  • Live (L)
  • 2-way – intermediate link wire
08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – detail 1Livolo Wi-Fi Touch Light Switch – 3 Gang 2-Way / Intermediate, Italian Standard – New Series, White (VL-FC3SNY-3WP-11) – detail 2

The Livolo touch panel in action

Official Livolo video
