Livolo Double Wi-Fi Touch Switch
A wide range of products with a simple design and an outstanding mechanism. This 2-gang Wi-Fi touch switch is available in several frame colours.
Livolo
Livolo Wi-Fi Touch Light Switch with Glass Frame – 2 Gang, New Series (VL-FC2NY-2WP-11)
SKU: VL-FC2NY-2WP-11
AED 182
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
New-series Livolo 2 gang Wi-Fi touch light switch with glass frame, connects directly to your router and is controlled via the Livolo Home app.
Product details
The new-series Livolo 2 gang Wi-Fi touch light switch is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product made from quality, durable materials that brings convenience and comfort to your home. It fits a round or square back box with 60mm screw spacing.
Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.
A neutral wire is required for operation
To control the switch from your phone, install the Livolo Home app.
Improvements over the previous series:
- → Compatible with more types of light bulbs
- → Faster response time when the touch panel is pressed
- → More powerful and robust chip – made in Japan
- → Reduced standby power consumption
- → Compact design (smaller dimensions than the previous model)
- → Maximum load of 5A per circuit
Highlights
02
Improved New Series
Unrivalled performance with low energy consumption. The new series is an improved version of the previous model, with a slimmer profile.
- Front profile: 4 mm
- Module depth: 33 mm
- Glass frame thickness: 8 mm
03

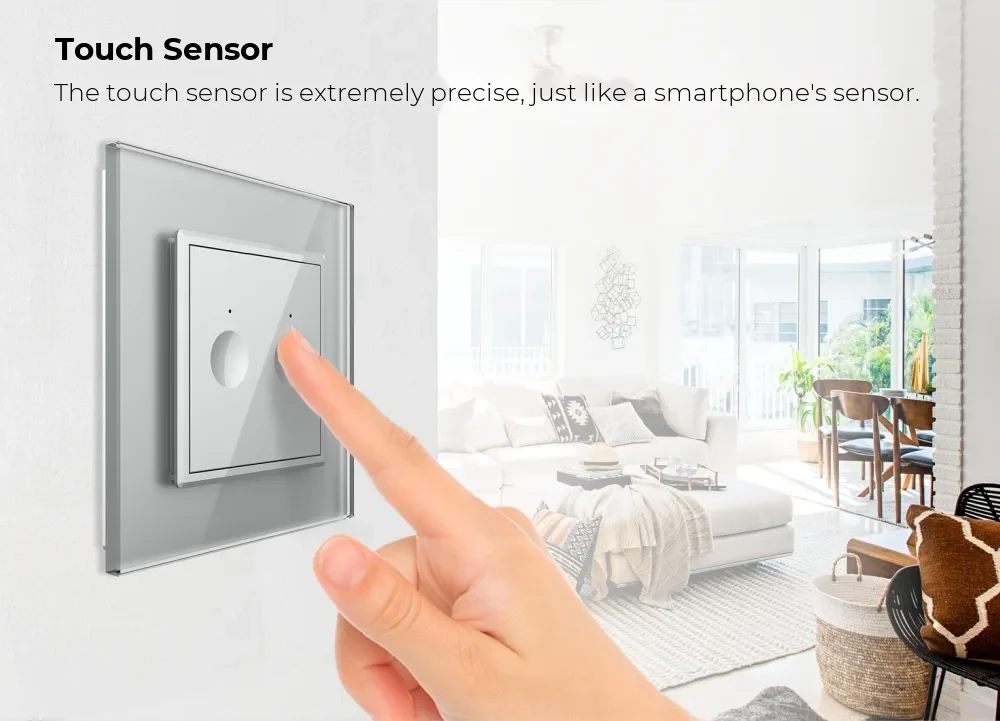

Precise Touch Sensor
The touch sensor is extremely precise, identical to the sensor used in a smartphone.
04

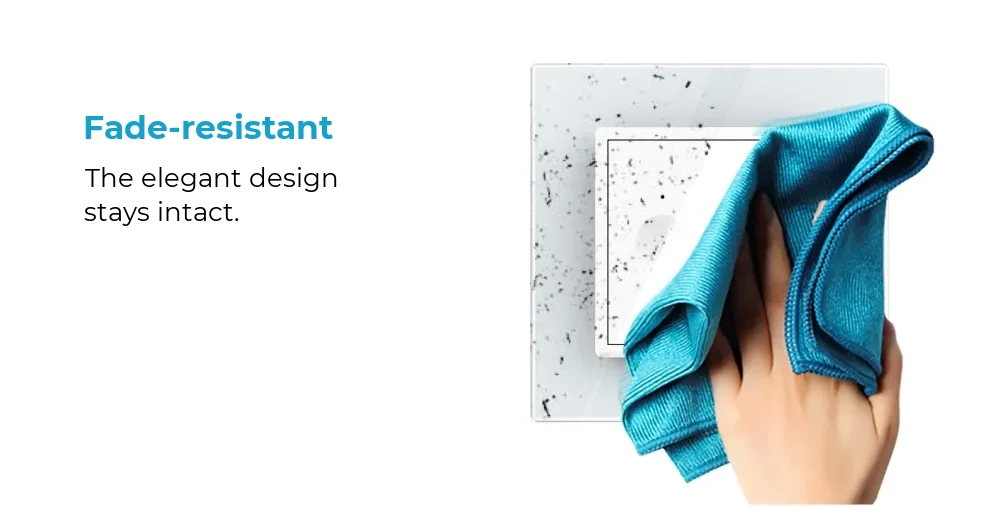

Fade-Resistant Design
The surface does not discolour, so the elegant design stays intact.
05
App Control – No Hub Required
Change the atmosphere of your home with a simple tap. Open the Livolo app to customise the lighting in your home just the way you like it.
- Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub needed
- To control the switch from your phone, install the LIVOLO HOME mobile app
- App organises devices by Room, Scene and Automation
06

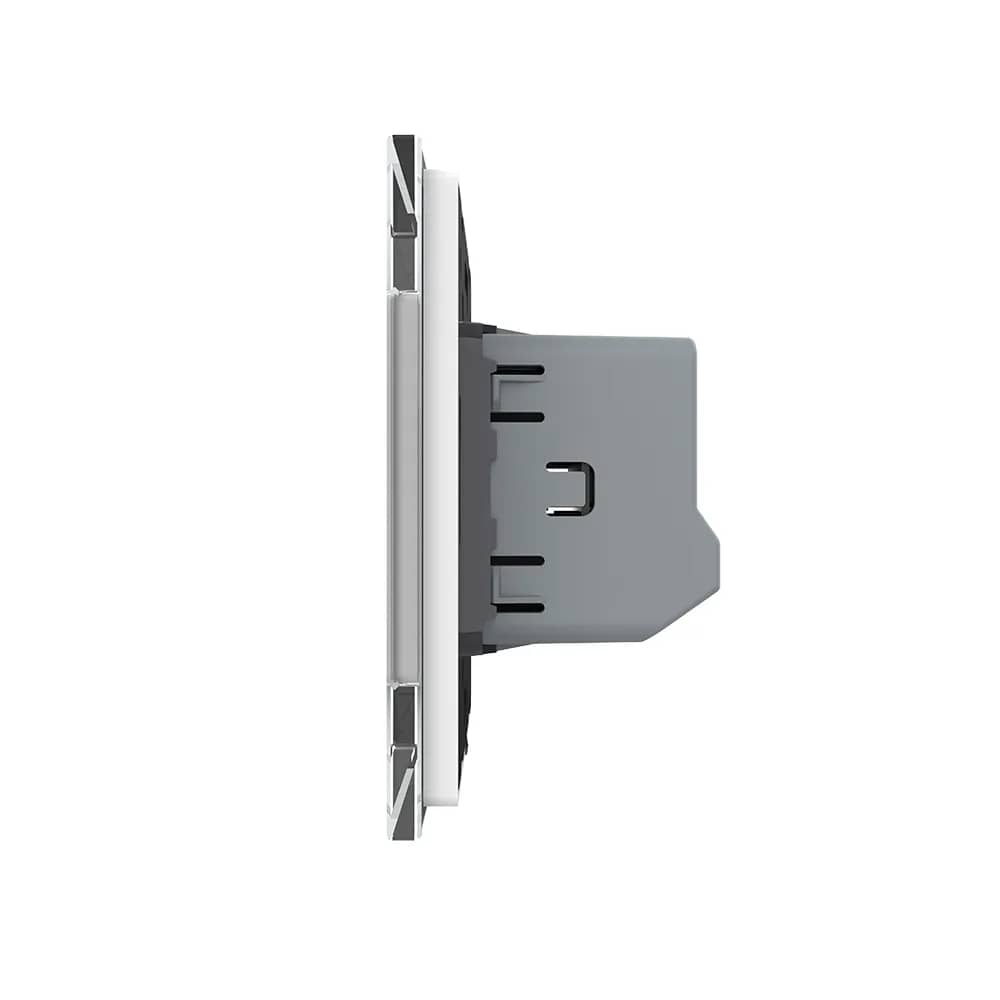

Structure
The switch consists of three main parts and is fixed with a screw mounting system.
- Glass frame
- Switch module
- Metal frame
- Screw mounting spacing: 60 mm
07
Technical Data
- Rated voltage: 100-240V~ 50/60Hz
- Load: 5A/gang, 10A total
- Gangs: 2
- Connectivity: Wi-Fi
- Dimensions: 80 mm x 80 mm
- Depth behind frame: 33 mm

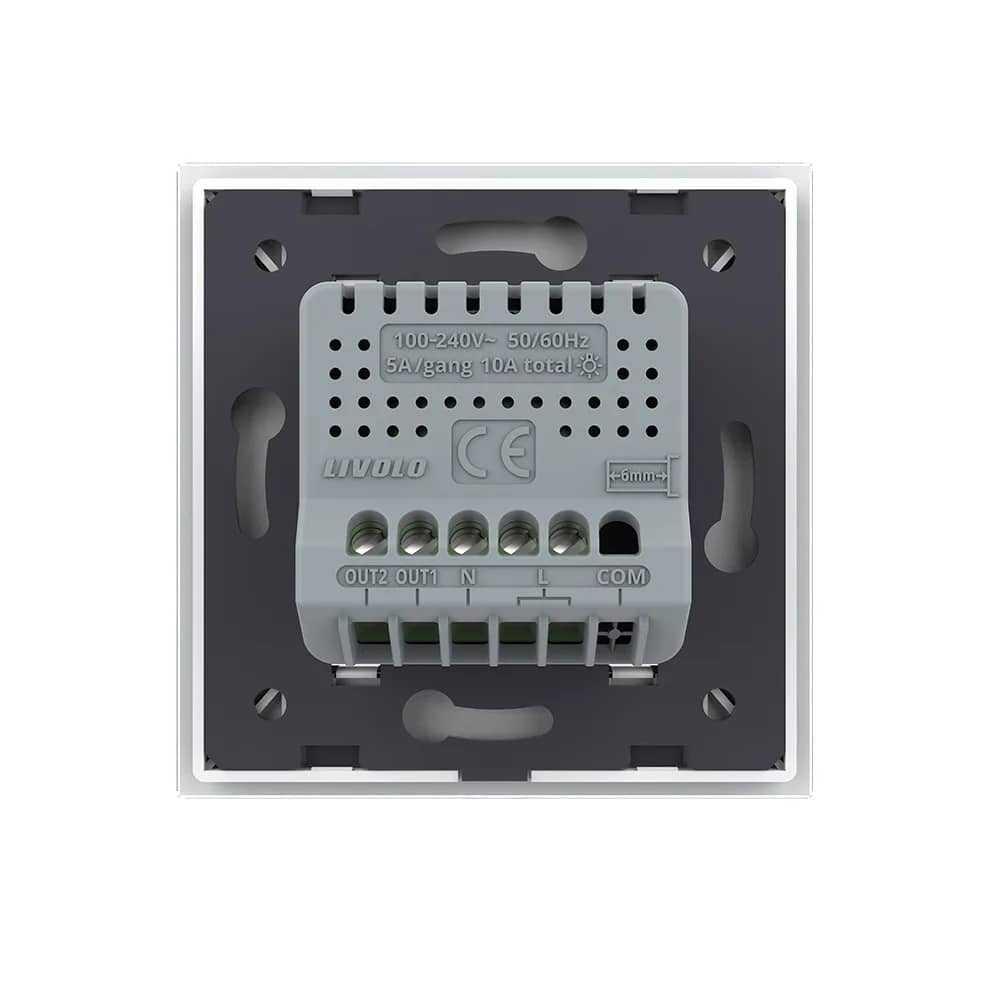

- Terminals: OUT2, OUT1, N, L, COM
08
Wiring Diagram
Connect the live (L) and neutral (N) wires to the switch, and connect each light to OUT1 and OUT2 respectively, with the lights' return to neutral.
- L: Live
- N: Neutral
- OUT1 / OUT2: Light outputs
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
10
Quality Testing
Livolo products carry RoHS and CE certification and undergo strict testing.
- Toughened glass panels with surface hardness greater than 4H, keeping the switch clean and scratch-resistant
- Galvanised parts show no corrosion after high-temperature and saturated salt spray testing
- Tested under extreme high, low and constant temperatures and humidity
- Durability tests indicate an average service life of over 100,000 operations
- High-voltage resistance tested
In detail
