Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, Italian Standard – New Series – White

1 / 4

Livolo

Livolo Wi-Fi Touch Light Switch – 1 Gang 2-Way / Intermediate, Italian Standard – New Series

SKU: VL-FC1SNY-2G-3W

AED 160

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo Wi-Fi 1 gang 2-way/intermediate touch switch, Italian standard, connects directly to your router with no hub and is controlled via the Livolo Home app.

Product details

The Livolo Wi-Fi 1 gang 2-way / intermediate touch light switch, Italian standard, from the new series is an improved, innovative product resulting from technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a 3-module modular back box with 85 mm between the fixing screws.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required. They need a neutral wire to operate. A maximum of 3 switches can be connected in the circuit (intermediate switching).

To control the switch from your phone, the Livolo Home app must be installed.

Highlights

Livolo Wi-Fi 1-Gang 2-Way / Intermediate Touch Switch

A wide range of products: simple design, extraordinary mechanism. Single touch switch with 2-way/intermediate Wi-Fi function, built to the Italian standard.

Available in several colours, as shown: white, black, gold and grey
2-way switches only work when installed and synchronised with other Livolo 2-way products
Livolo products DO NOT work with other brands

App Control

Change the atmosphere of your home at the touch of a button. Open the Livolo app to customise the lighting in your home just the way you like.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required
For app control, install the LIVOLO HOME mobile app
Organise devices by room, scenes and automation

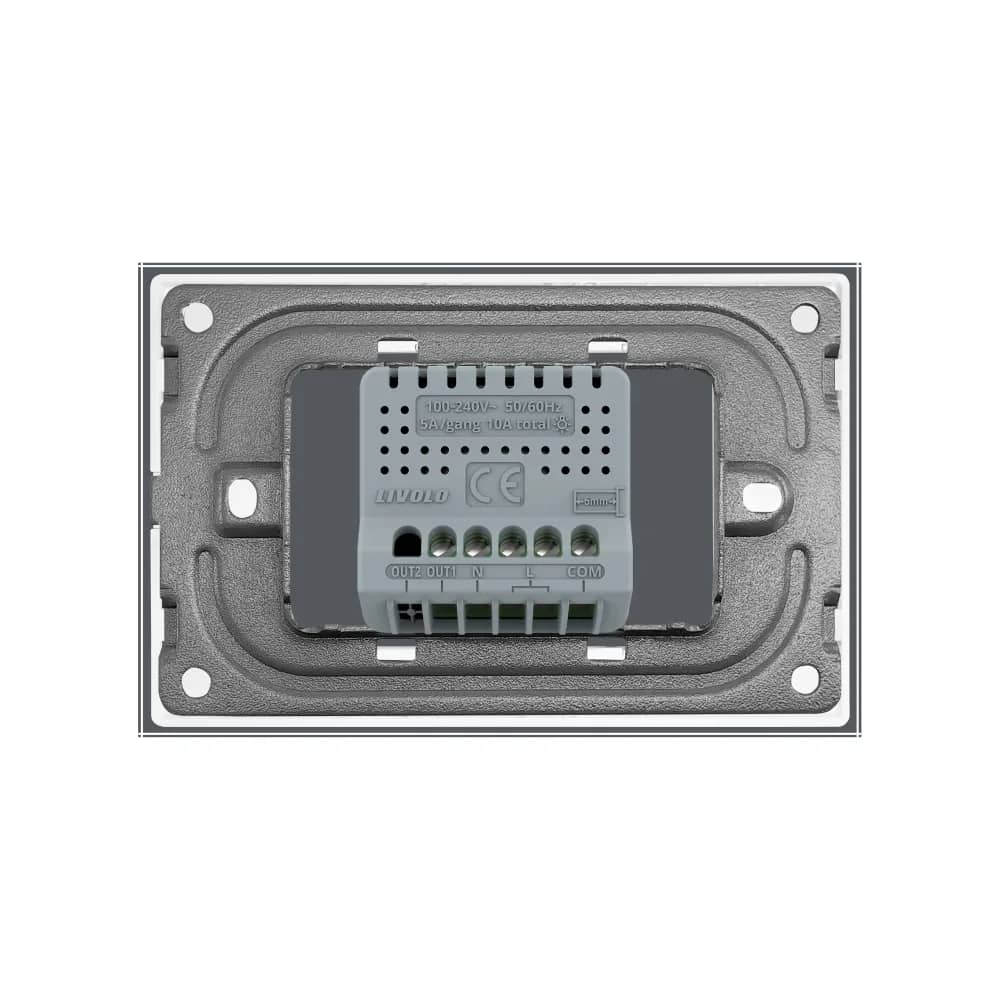

Structure

The switch consists of three main parts and fixes in place with a screw mounting system.

Elegant glass panel
Switch module
Metal frame
Screw mounting system: 85 mm between fixing points

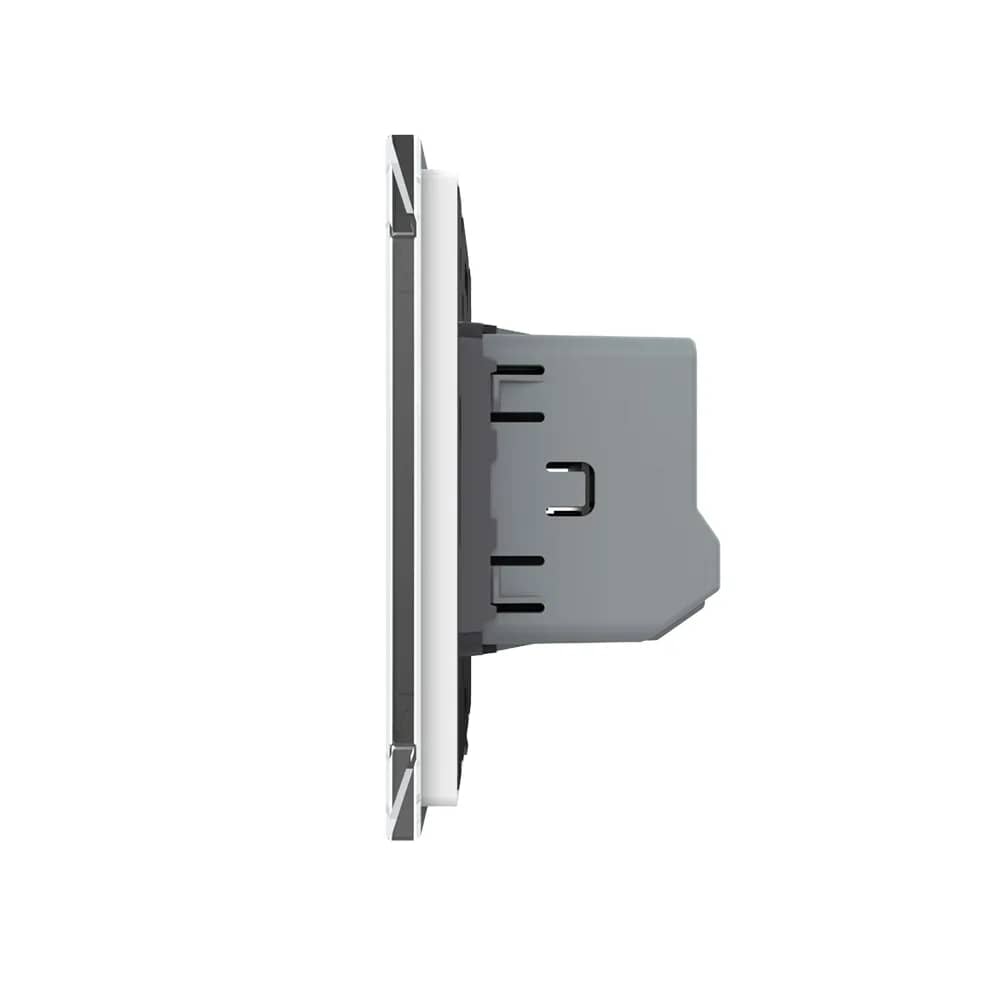

Dimensions

Width: 119 mm
Height: 78 mm
Panel thickness: 4 mm
Module depth: 33 mm
Profile: 8 mm

Wiring Diagram

Two switches are connected together to control one light from two locations.

Live (L): connected to both switches
Neutral (N): connected to both switches and the light
2-way / intermediate link: connects the COM terminals of the two switches
Light: connected to the output terminal of the first switch

Installation Steps

1. Open the package
2. Connect the wires and tighten the screws
3. Use the 2 screws to fix the frame
4. Fit the front panel (it clicks into place)
