Livolo

Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11)

SKU: VL-FC1SNY-3WP-11

AED 161

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo Wi-Fi 1 gang 2-way/intermediate touch switch with glass frame, Italian standard, hub-free control via the Livolo Home app.

Product details

The new-series Livolo Wi-Fi 1 gang 2-way (staircase) / intermediate touch light switch is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a modular back box (3 modules) with 85mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.

They require a neutral wire to operate.

To control the switch from your phone, install the Livolo Home app.

A maximum of 3 switches can be connected in the circuit (intermediate wiring)

Highlights

Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – Wi-Fi Touch 2-Way / Intermediate Switch
01

Wi-Fi Touch 2-Way / Intermediate Switch

A single touch light switch for 2-way and intermediate (cross) circuits with Wi-Fi, built to the Livolo Italian standard. Simple design, outstanding mechanism, available in several frame colours.

  • 1 gang touch switch
  • 2-way / intermediate (cross) wiring
  • Wi-Fi connectivity
  • Italian standard format
Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – Important Compatibility Notice
02

Important Compatibility Notice

2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do NOT work with other brands.

Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – Touch Sensor
03

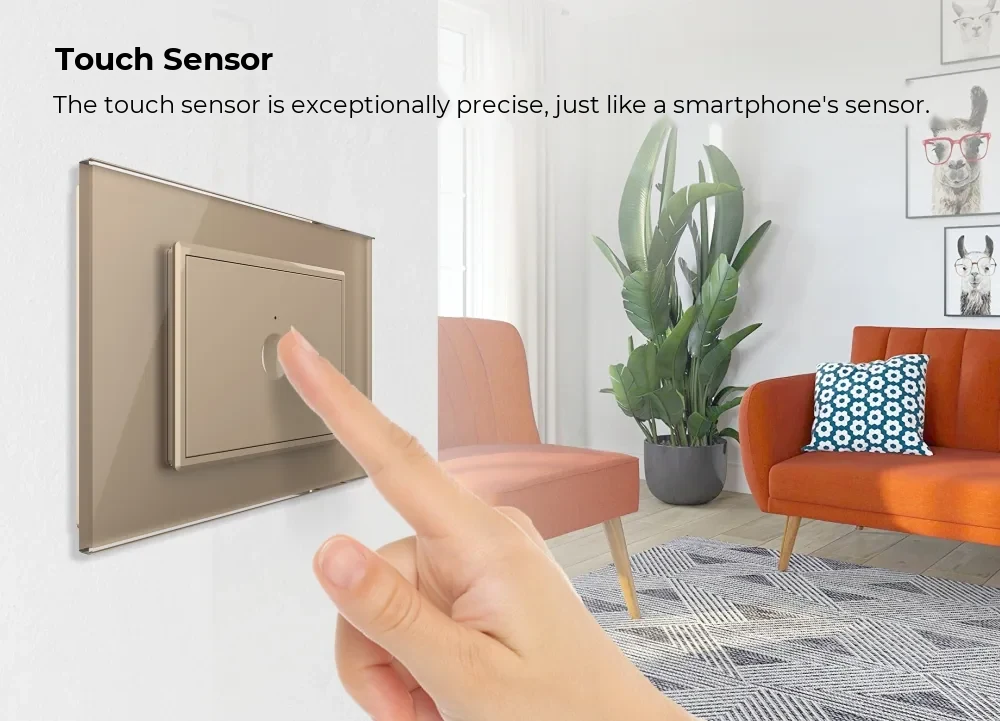

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – App Control
04

App Control

Change the atmosphere of your home with a simple touch. Open the Livolo app to customise your home lighting just the way you like.

  • Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required
  • Install the LIVOLO HOME mobile app for app control
Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – Structure
05

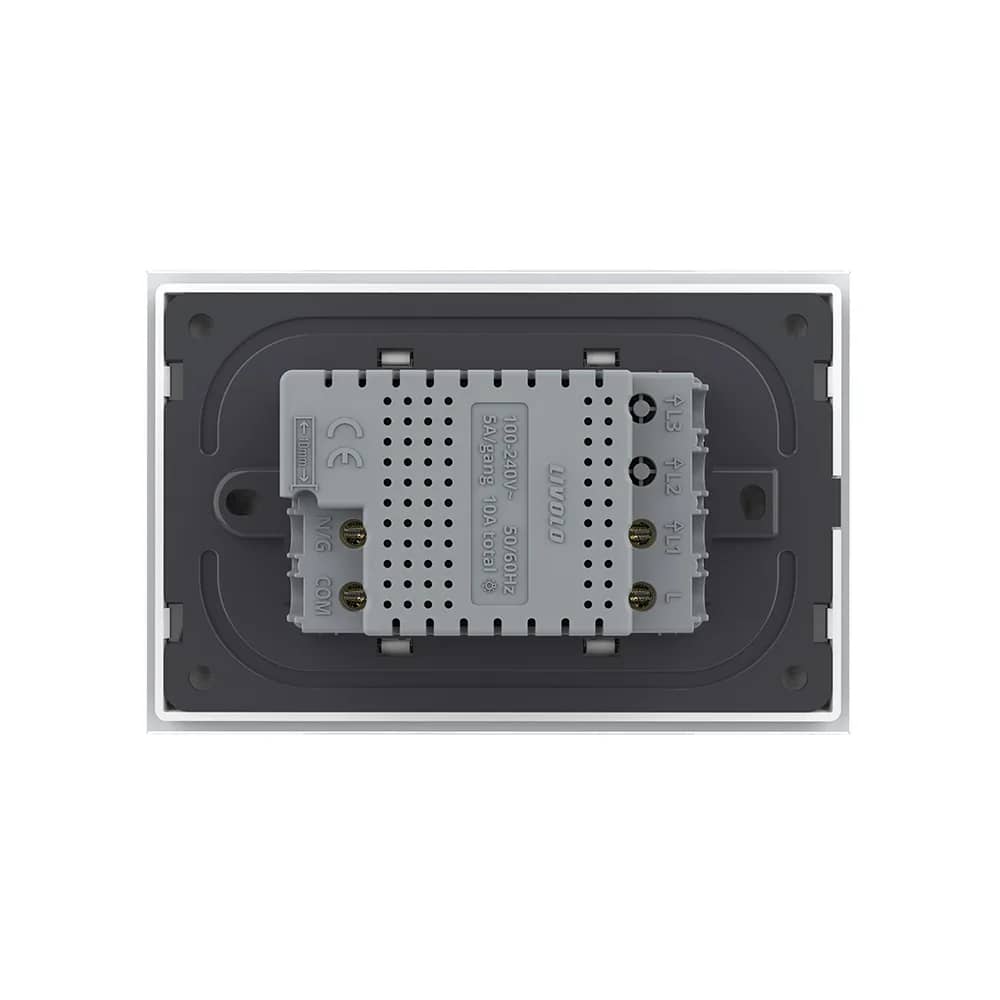

Structure

The switch consists of three main parts.

  • Elegant crystal glass panel
  • Switch module
  • Metal frame
  • Screw fixing system
Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – Dimensions
06

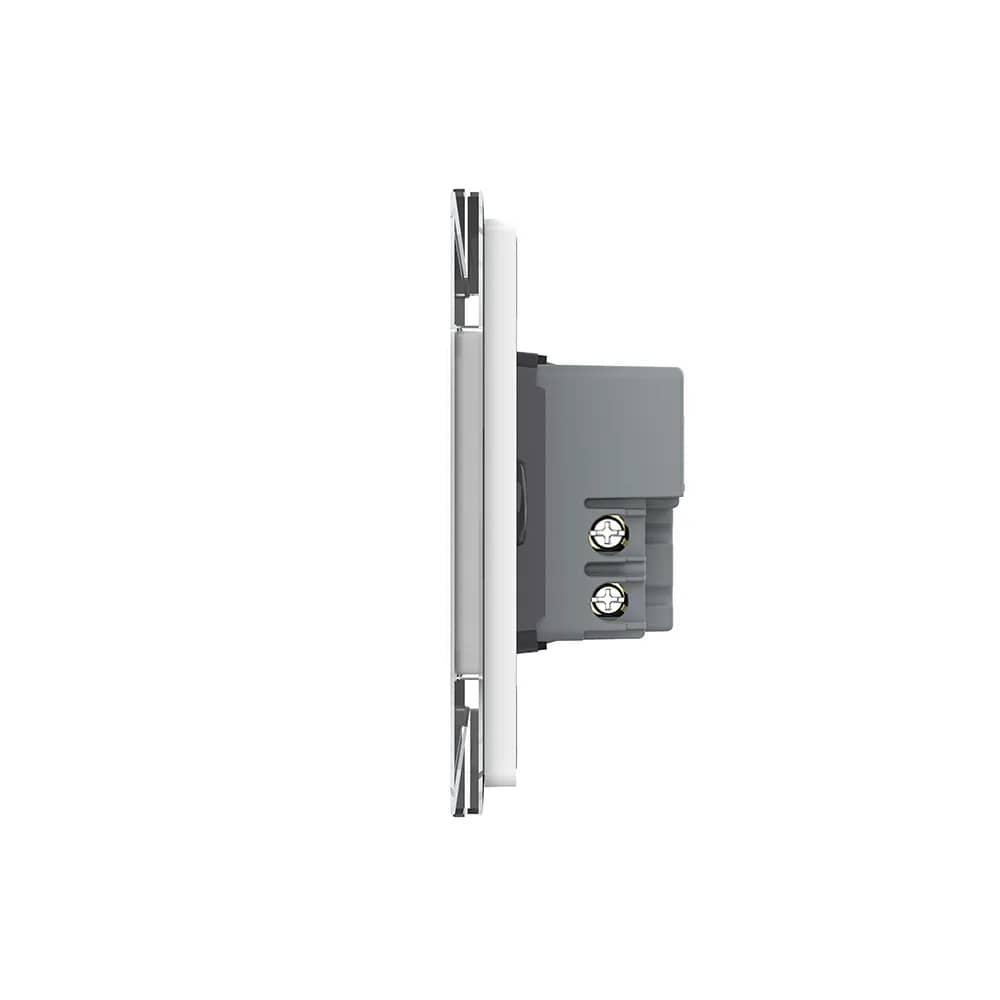

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Fixing screw spacing: 85 mm
  • Panel thickness: 4 mm
  • Module depth: 24 mm
  • Side depth: 8 mm
07

Wiring Diagram

Neutral and live are connected to both switches, which are linked with the 2-way / intermediate wire; the light is connected to the second switch.

  • Neutral
  • Live
  • 2-way / intermediate link
08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click).
09

Durability

  • Tempered glass panels with surface hardness greater than 4H, keeping the switch clean and scratch-resistant over the long term
  • Galvanised parts show no corrosion after high-temperature and saturated salt spray testing
  • Surface and function remain as new under extreme high, low and constant temperature or humidity
  • Endurance tests show an average service life of over 100,000 operations
  • High-voltage resistance tested

In detail

Livolo Wi-Fi Touch 2-Way / Intermediate Light Switch with Glass Frame – 1 Gang, Italian Standard, New Series (VL-FC1SNY-3WP-11) – detail 1

The Livolo touch panel in action

Official Livolo video
