Livolo

Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series)

SKU: VL-FC1NY-2G-3W

AED 149

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang Wi-Fi touch light switch with glass panel, connects directly to your router and is controlled via the Livolo Home app.

Product details

The new-series Livolo 1 gang Wi-Fi touch light switch is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square back box with 85mm screw spacing.

Livolo Wi-Fi switches connect directly to your Wi-Fi router, with no hub required.

They require a neutral wire to operate.

To control the switch from your phone, the Livolo Home app must be installed.

Highlights

Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series) – A Variety of Products
01

A Variety of Products

Simple design, extraordinary mechanism. Livolo 1-gang Wi-Fi touch light switch, Italian standard, available in multiple panel colours.

  • Single (1-gang) touch switch
  • Wi-Fi enabled
  • Italian standard
Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series) – Structure
02

Structure

The switch is made up of three main parts.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system (85 mm between fixing points)
Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series) – Dimensions
03

Dimensions

  • Panel width: 119 mm
  • Panel height: 78 mm
  • Panel thickness: 4 mm
  • Module depth: 33 mm
  • Depth: 8 mm

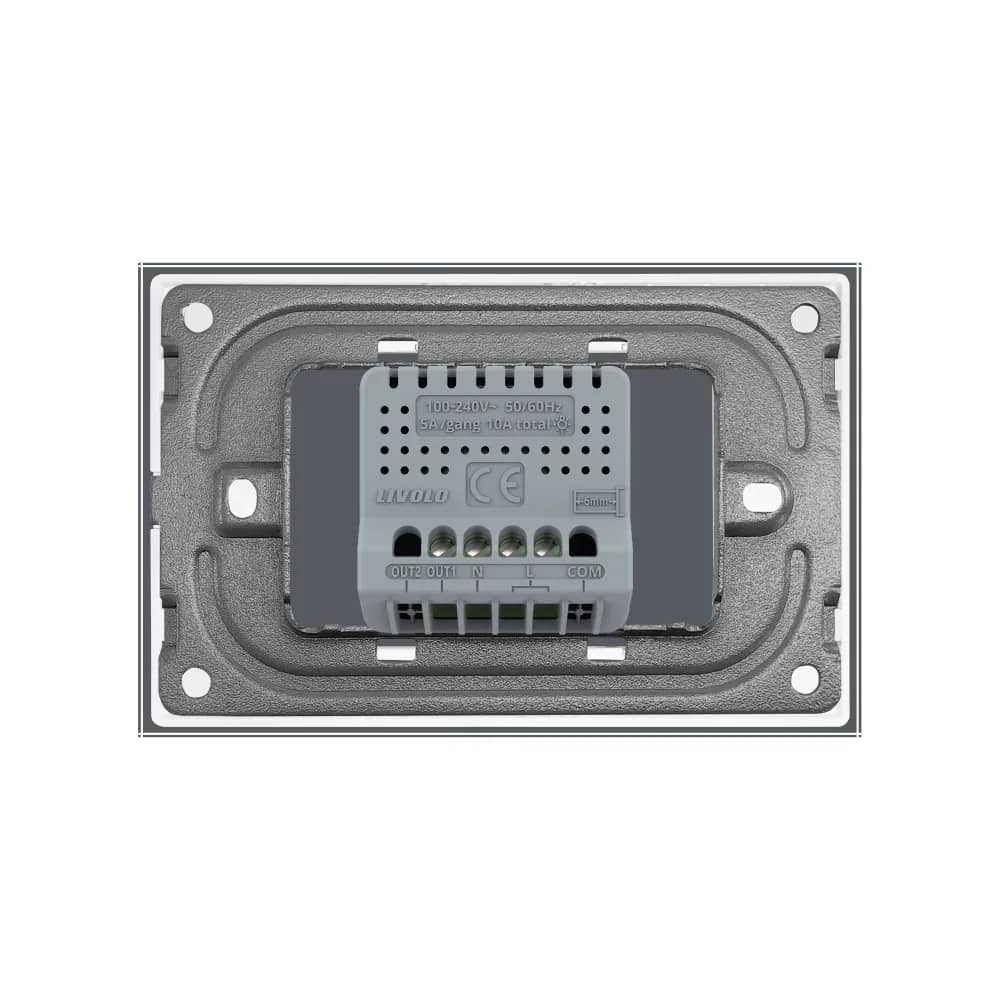

Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series) – Technical Data (Module Markings)
04

Technical Data (Module Markings)

  • Voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: OUT2, OUT1, N, L, COM
  • Wire strip length: 6mm
  • CE marking
Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series) – Wiring Diagram
05

Wiring Diagram

Connect the live (L) wire to the L terminal, the neutral (N) wire to the N terminal and to the lamp, and the lamp to the OUT1 terminal.

  • Live: L
  • Neutral: N
  • Lamp output: OUT1
Livolo Wi-Fi Glass Touch Light Switch – 1 Gang, Italian Standard (New Series) – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
