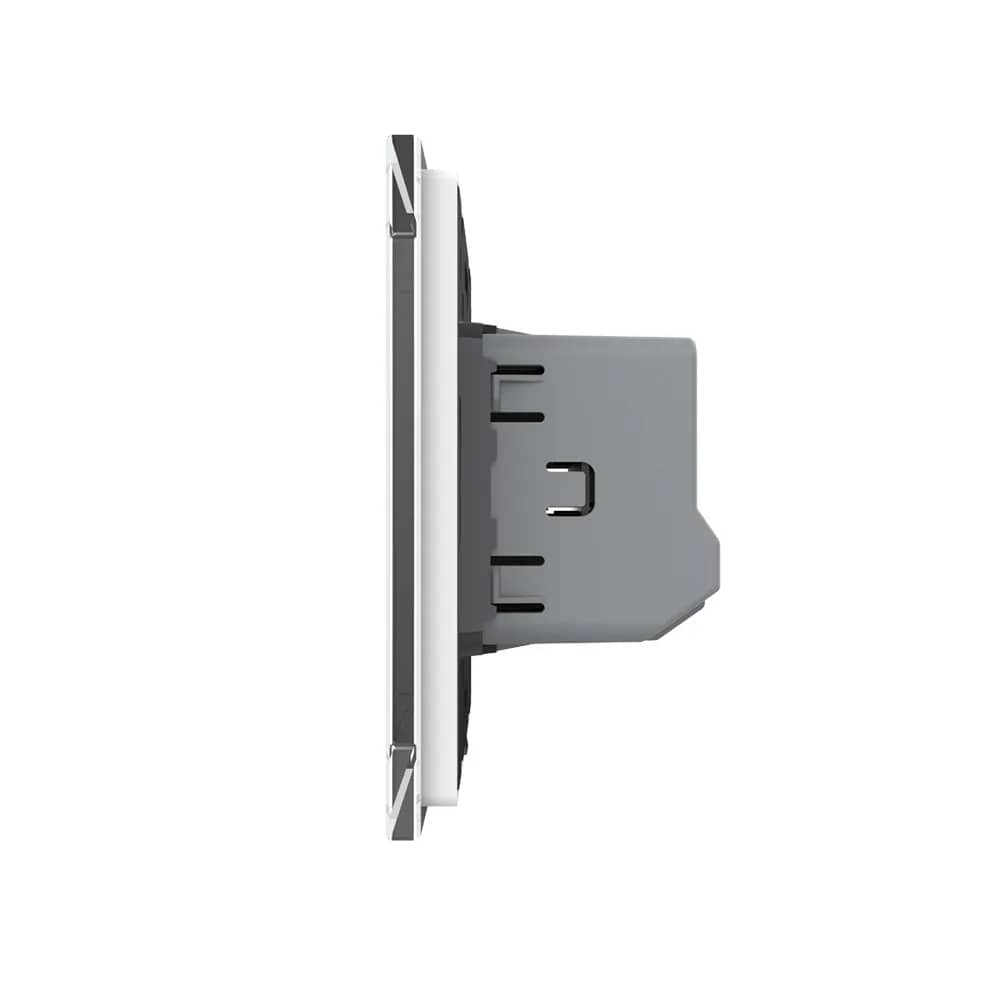

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – White — image 3

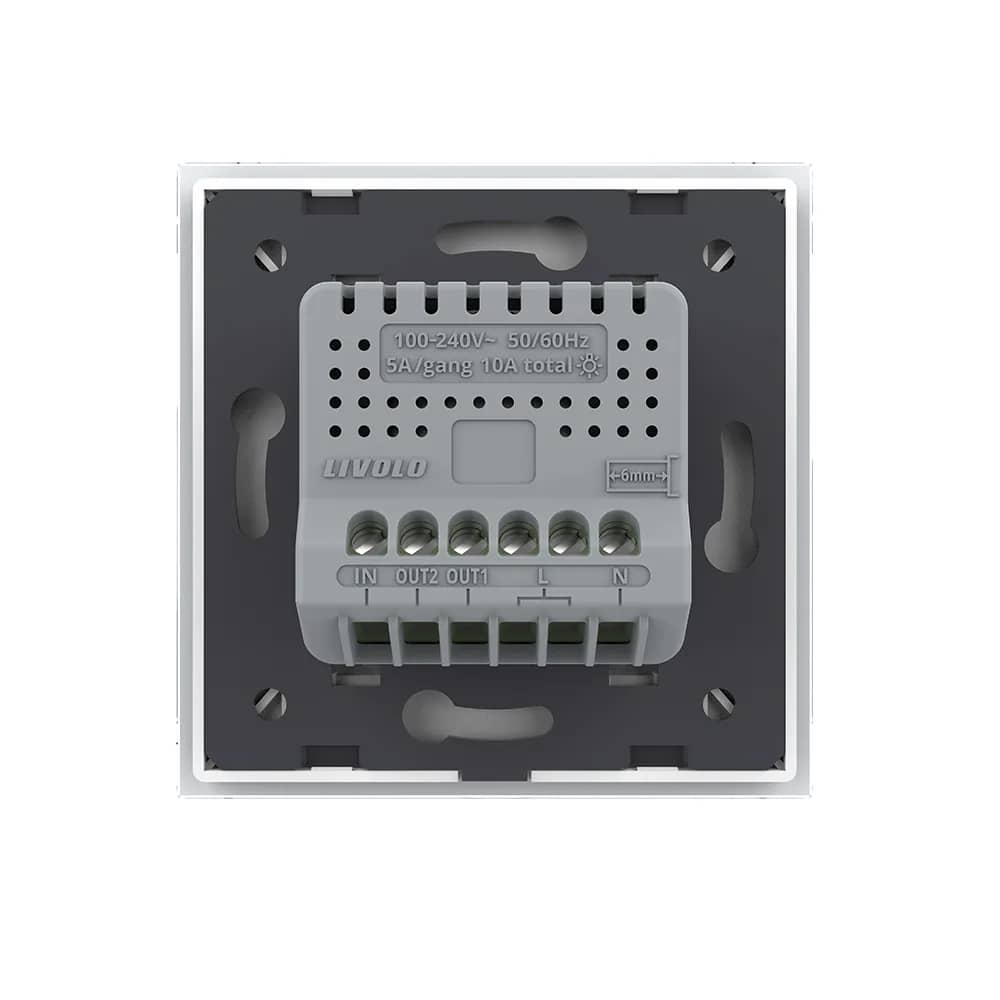

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – White — image 4
1/4
Livolo

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series

SKU: VL-FC2NB-2G-2W

AED 129

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang momentary (push-to-reset) touch switch with dry contact, blue/red LED indicator and a scratch- and moisture-resistant finish.

Product details

Momentary switch / touch reset button on/off, with a blue LED when the switch is off and a red LED when the switch is on. Easy to use in the dark, resistant to scratches and moisture, and it will always look immaculate. Suitable for homes, offices, restaurants, conference rooms and luxury hotels.

Highlights

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – Double Momentary Dry Contact Touch Switch
01

Double Momentary Dry Contact Touch Switch

A Livolo double momentary (push-return) dry contact switch with touch control. Simple design, outstanding mechanism, available in a range of finishes.

  • 2 gang momentary dry contact
  • Touch operation
  • Available in white, black, gold and grey
Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – Precise Touch Sensor
02

Precise Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – Fade-Resistant Finish
03

Fade-Resistant Finish

Does not discolour, so the elegant design stays intact.

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – Structure
04

Structure

The switch consists of three main parts and is fixed with a screw mounting system.

  • Elegant crystal glass panel
  • Switch module
  • Metal frame
  • Screw mounting system: 60 mm
Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – Dimensions
05

Dimensions

  • Panel: 80 mm x 80 mm
  • Glass panel thickness: 4 mm
  • Module depth: 33 mm
  • 8 mm (side profile)
Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – Technical Data
06

Technical Data

  • Voltage: 100-240V~ 50/60Hz
  • Load: 5A/gang, 10A total
  • Wire strip length: 6mm
  • Marking: CE
07

Wiring Diagram

Terminals on the switch module:

  • L: Live
  • IN: Input terminal
  • N: Neutral
  • OUT2, OUT1: Output terminals
08

Installation

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Livolo Touch Momentary Switch, 2 Gang Dry Contact – New Series – detail 1

The Livolo touch panel in action

Official Livolo video
