Livolo Touch Dimmer Light Switch – 1 Gang 2-Way / Intermediate (New Series) – White

1 / 4

Livolo

Livolo Touch Dimmer Light Switch – 1 Gang 2-Way / Intermediate (New Series)

SKU: VL-FC1SD2-2G-11

AED 101

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo new-series 1 gang touch dimmer switch for 2-way and intermediate circuits, dimmable from every switch, up to 3 switches per circuit.

Product details

The Livolo 1 gang 2-way / intermediate touch dimmer switch from the new series is an improved, innovative product, the result of technology developed over years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square back box with a 60mm screw spacing.

A maximum of 3 switches can be connected in the circuit (intermediate)

Improvements over the previous series:

→ Compatible with more types of bulbs
→ Faster response time when the touch panel is pressed
→ More powerful, robust chip – made in Japan
→ Reduced standby power consumption
→ Compact design (smaller dimensions than the previous model)
→ Maximum supported load of 2A / circuit

Dim the lights from any switch in the circuit

Highlights

Livolo 1 Gang 2-Way / Intermediate Touch Dimmer

A single touch switch for 2-way (staircase) or intermediate circuits with built-in dimming. Simple design, outstanding mechanism, available in a range of finishes.

Important: 2-way switches only work when installed and synchronised with other Livolo 2-way products
Livolo products do NOT work with other brands

Improved New Series

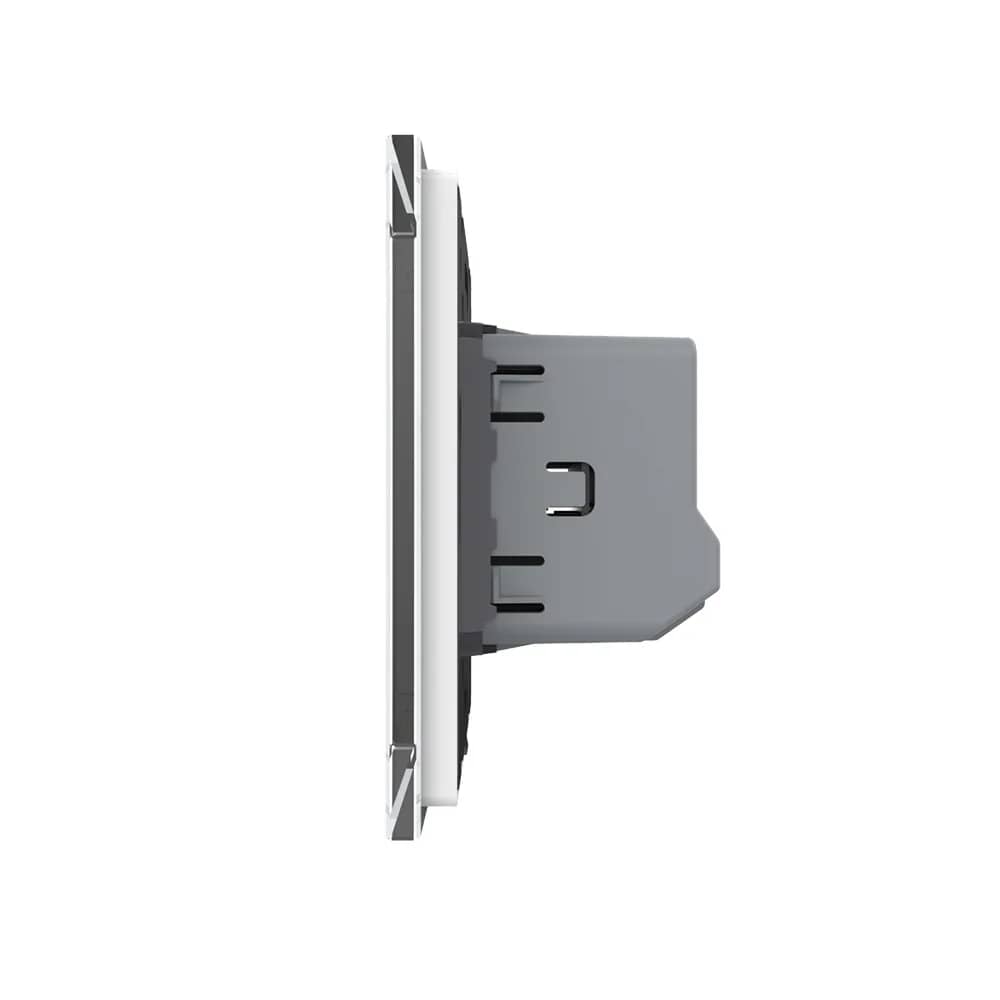

Unmatched performance with low energy consumption. The new series is an improved version of the old model, with a slimmer profile.

Front profile: 4 mm
Mechanism depth: 33 mm
Frame depth: 8 mm

Precise Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Dimming Function

Press and hold the switch button to dim or brighten the lamp.

Note: some switches do not have the RF remote control function – please order only switches that include this function if you need it

Light Indicator

Red and blue LEDs show whether the switch is on or off, making it easy to find in the dark.

Red LED: switch is on
Blue LED: switch is off
LED lights up clearly and the switch gives a clear sound
MCU smart chip with built-in microchip technology

Durable, Water-Resistant Design

The elegant design stays intact and does not discolour. Water resistant, so it can be used safely in damp environments.

Compatible Lamps

Compatible: halogen lamps
Compatible: incandescent lamps
Compatible: dimmable LED lamps
Incompatible: energy-saving lamps
Incompatible: fluorescent lamps
Incompatible: standard (non-dimmable) LED lamps

Installation – Wiring Diagram

Two switches are wired together for 2-way/intermediate control: the live (L) connects to the L terminal of both switches, the COM terminals are linked to each other, and the lamp is connected to L1 of one switch and to neutral (N).

Terminals: N/G, L2, L1, L, COM
Rating: 100–240V~ 50/60Hz
Load: 2A/gang

In detail

Livolo Touch Dimmer Light Switch – 1 Gang 2-Way / Intermediate (New Series) – detail 1

The Livolo touch panel in action

Official Livolo video
