Livolo Relay with Sensor for Thermostat – VL-XQ002

SKU: VL-XQ002

AED 27

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo single-phase soft-start relay that limits inrush current to 5A, ideal for lighting, underfloor heating and thermostats.

Product details

The Livolo single-phase soft-start relay is a device that dampens the sudden surge of current at the moment a load is switched on. It is useful for light sources, underfloor heating, thermostats and more.

For example, LED lamp manufacturers typically economise on components. As a result, when switched on, for 50-100 microseconds the lamps draw a current of approximately 50-70A. This sudden start-up can cause various problems. This device reduces the current to an acceptable level of 5A.

Highlights

Livolo Relay with Sensor for Thermostat – VL-XQ002 – Wiring Diagram
01

Wiring Diagram

The relay connects between a Livolo thermostat and a servomotor. The thermostat is wired to neutral (N), live (L) and its output terminal; the relay switches live to the servomotor.

  • Neutral (N) to the thermostat N terminal and relay terminal A2
  • Live (L) to the thermostat L terminal and relay terminal L1
  • Thermostat output terminal to relay terminal A1
  • Relay terminal T1 to the servomotor
  • Servomotor connected to neutral (N) and earth

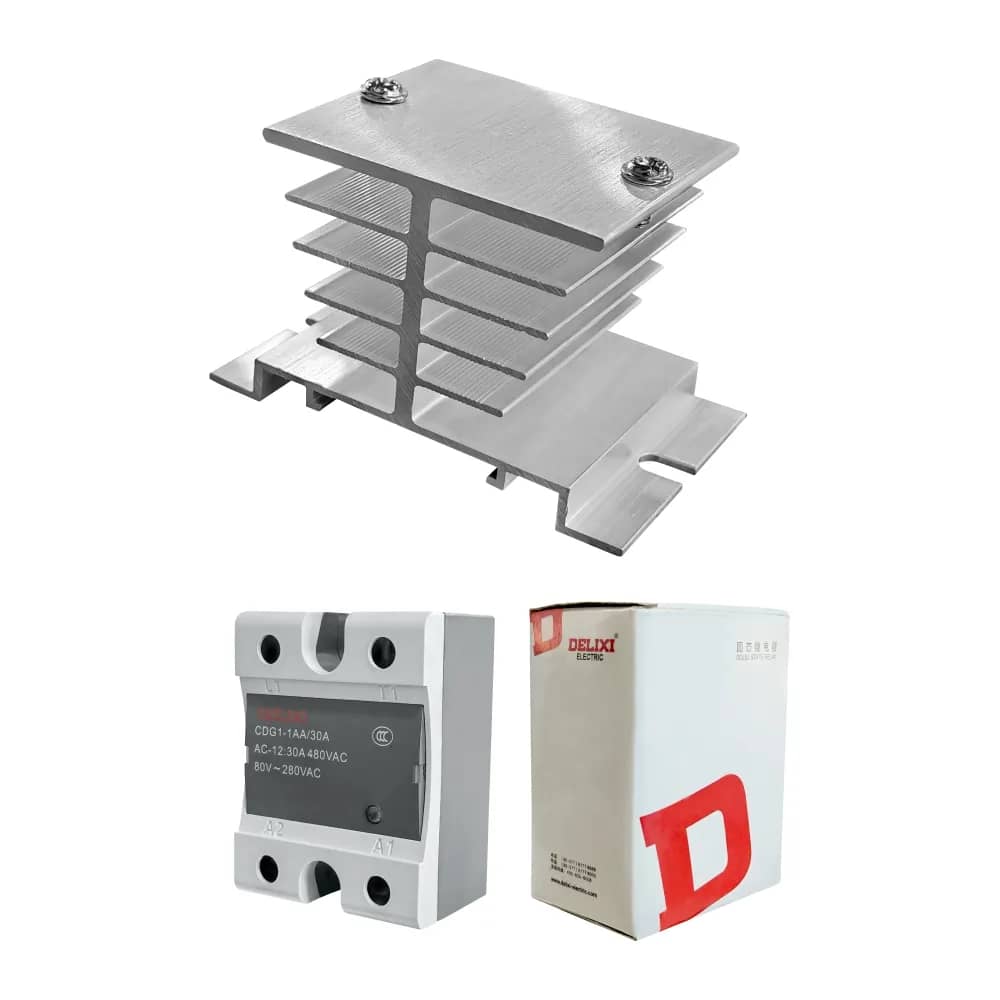

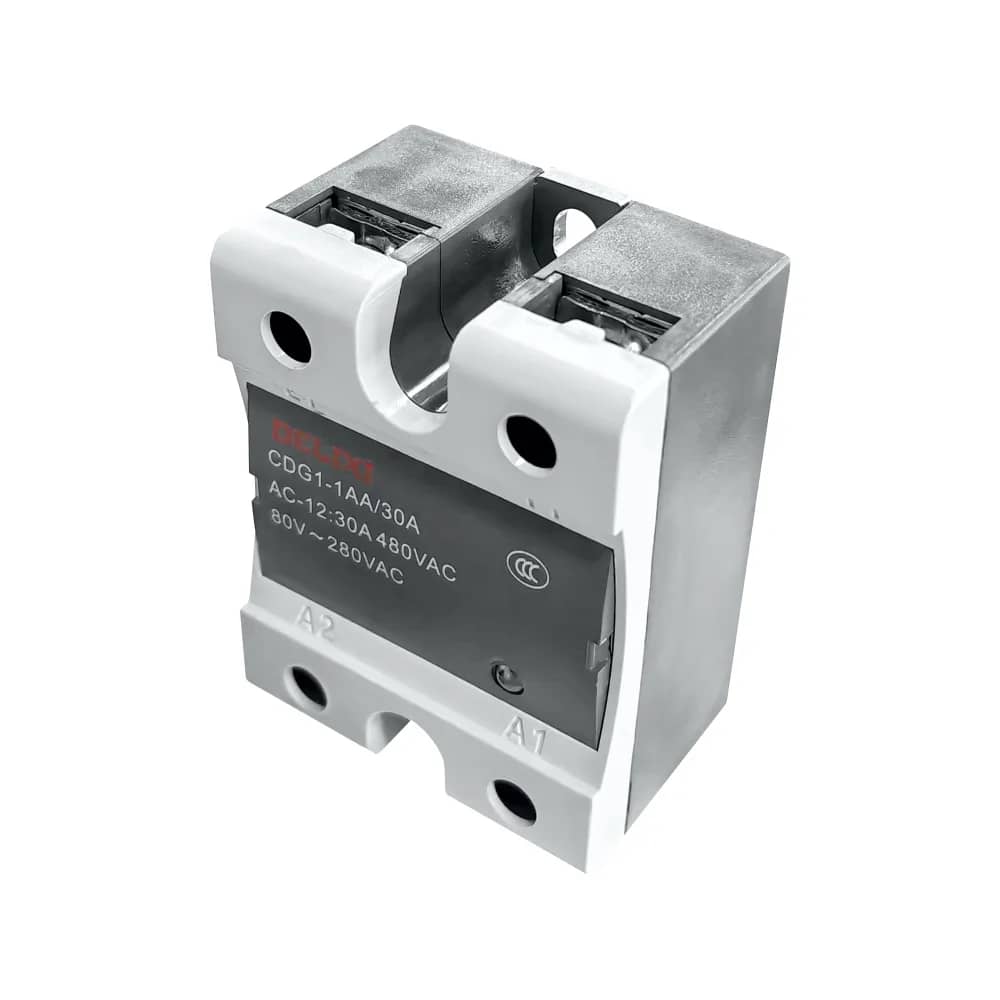

Livolo Relay with Sensor for Thermostat – VL-XQ002 – Relay Markings
02

Relay Markings

  • Model: CDG1-1AA/30A
  • Load rating: AC-12: 30A 480VAC
  • Control voltage: 80V ~ 280VAC
  • Terminals: L1, T1, A1, A2

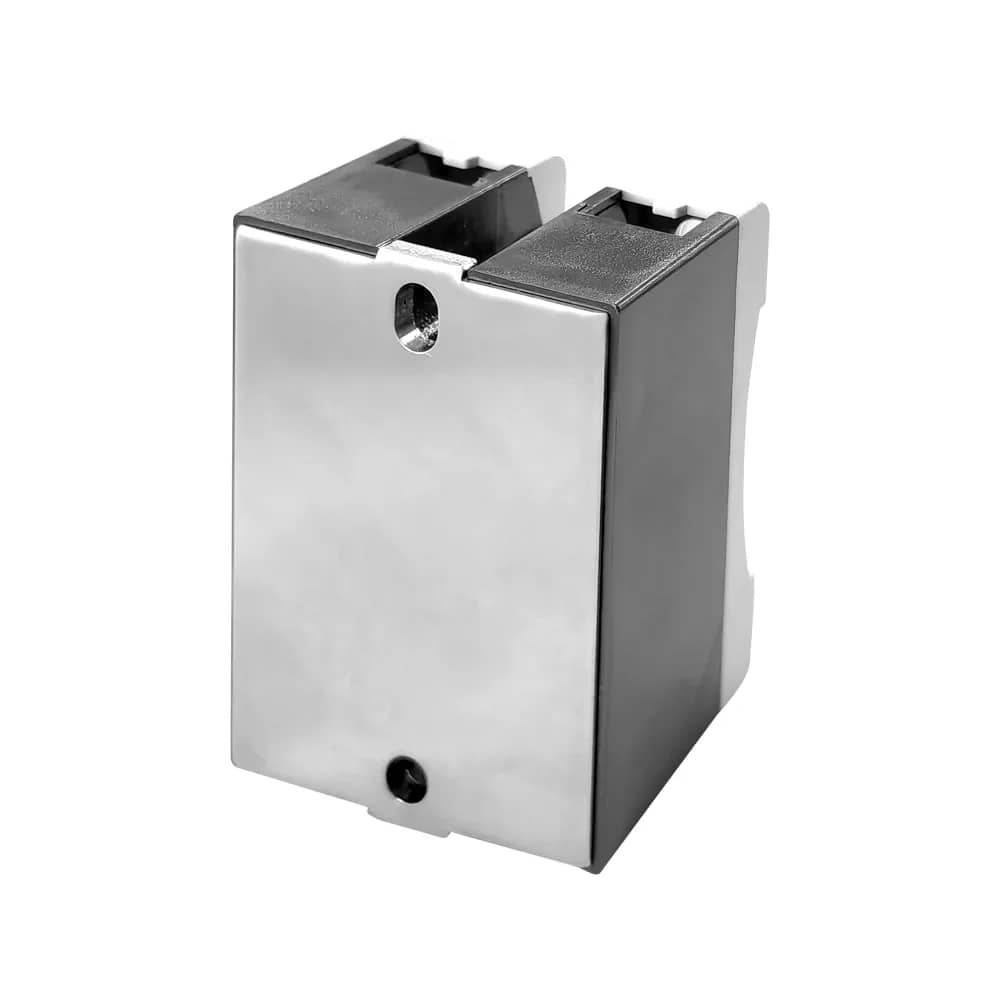

Livolo Relay with Sensor for Thermostat – VL-XQ002 – Dimensions
03

Dimensions

  • Relay width: 45.5mm
  • Relay height: 60.5mm
  • Relay mounting hole spacing: 48.5mm
  • Relay depth: 31.5mm

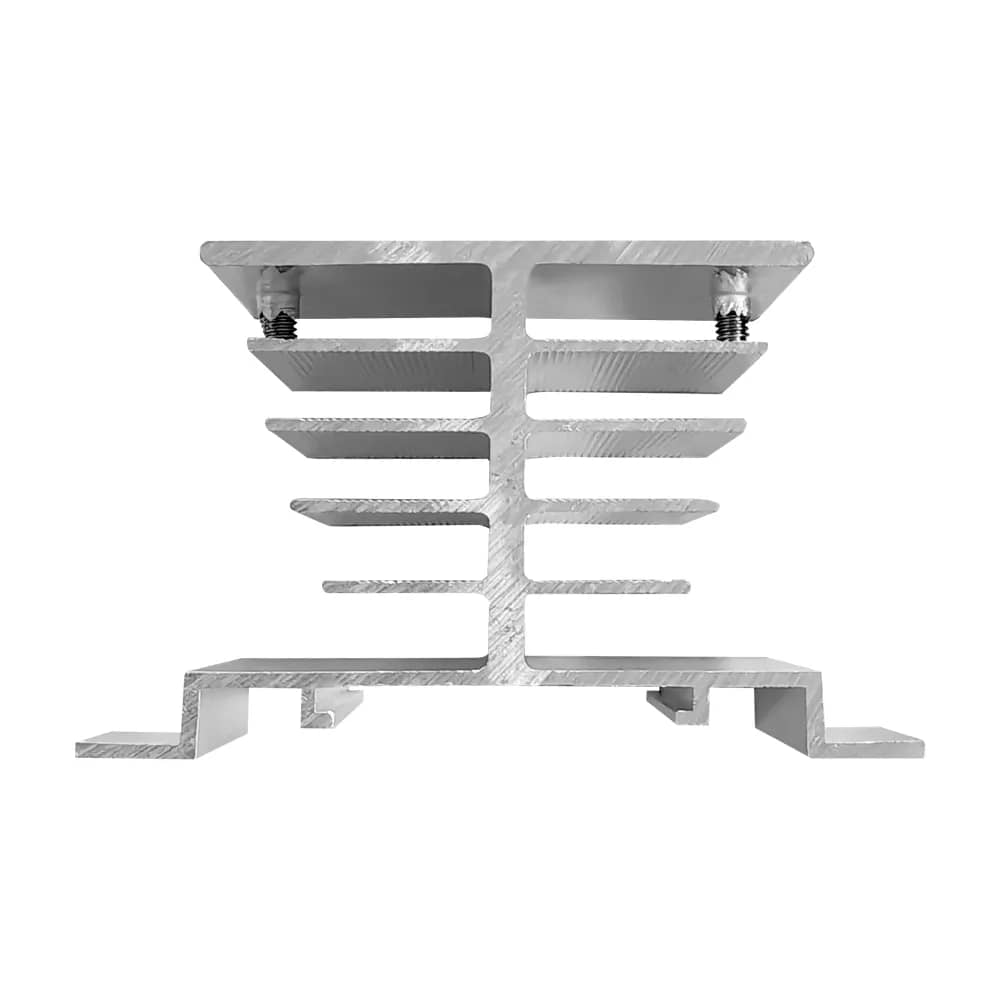

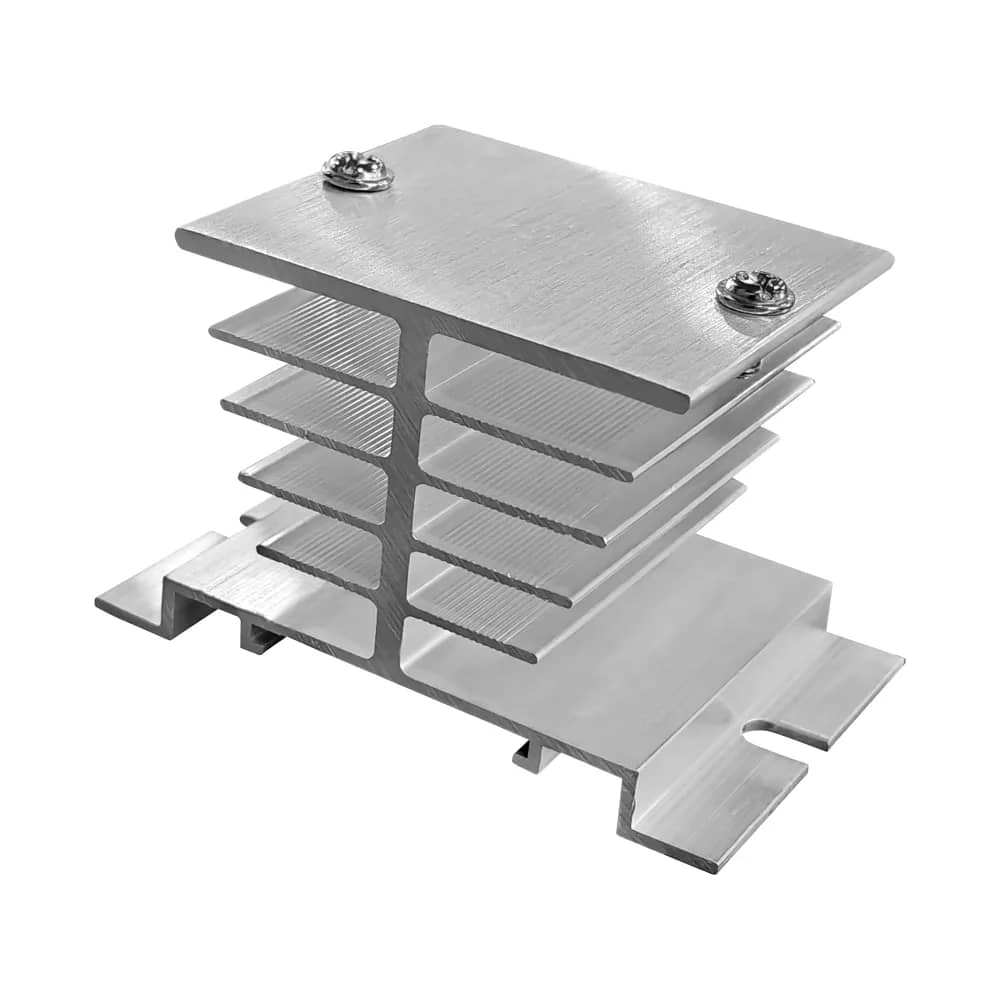

  • Heat sink: 50 mm x 50 mm base
  • Heat sink height: 80 mm
  • Heat sink mounting plate height: 59 mm

The Livolo thermostat in action

Official Livolo video
