Sonoff

Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz

SKU: DUALR3-Lite

AED 54

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Sonoff Dual R3 Lite 2-channel Wi-Fi relay: switch home devices on or off remotely and set schedules via the eWeLink app.

Product details

The Sonoff Dual R3 Lite is a 2-channel wireless relay that can be fitted to a wide range of devices around the home, letting you switch them on or off using the eWeLink app. The device sends data to a cloud platform via your Wi-Fi router, then allows remote control of your devices through the app.

Compatible with momentary (push-button) mechanical switches

Highlights

Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz – Sonoff Dual R3 Lite Smart Relay
01

Sonoff Dual R3 Lite Smart Relay

A two-channel relay that turns your existing wall switches into smart switches, controlled from your smartphone.

  • Remote control
  • Scheduling
  • Sharing
  • Smart scenes
  • Voice control
  • Status synchronisation

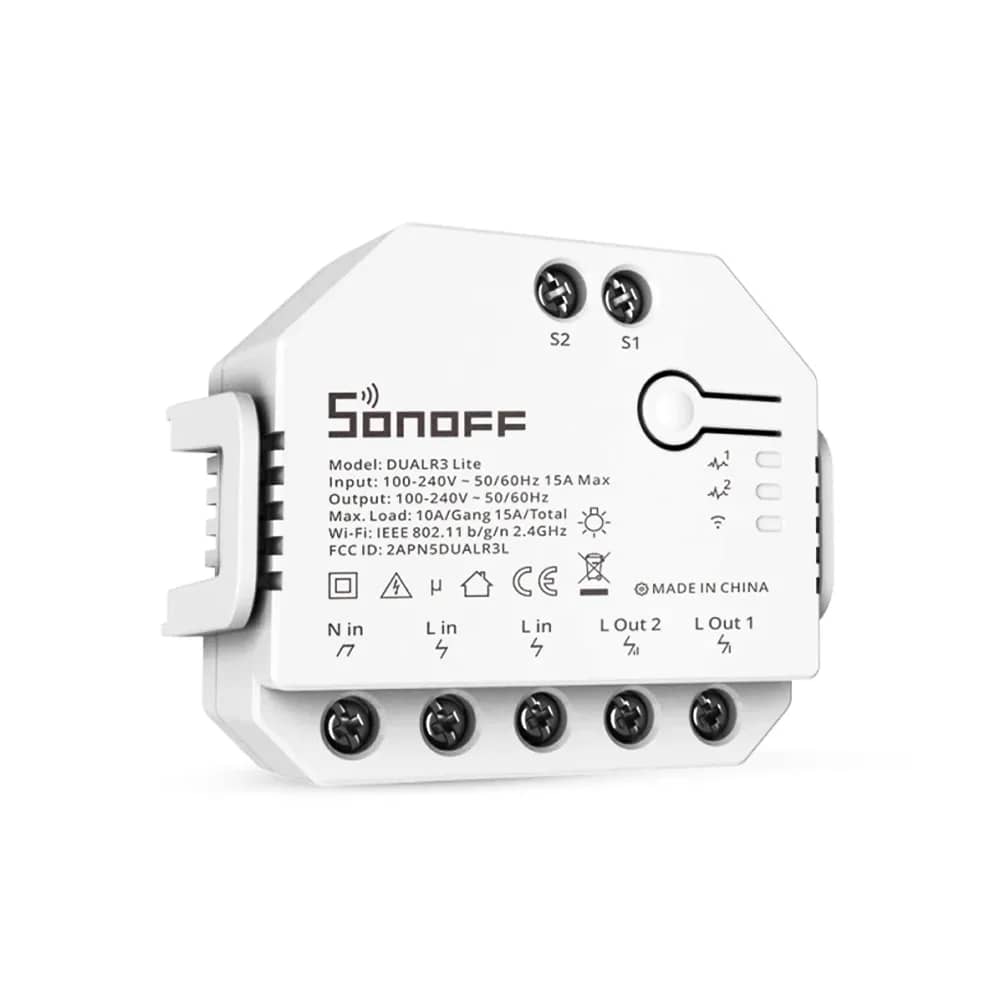

Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz – Upgrade Your Switches
02

Upgrade Your Switches

Your switches can be controlled from your smartphone, so you can schedule them for a specific time or turn them on and off remotely.

Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz – Installation
03

Installation

The relay installs behind your existing wall switch. Wiring diagrams are provided for curtain motors and for light switches.

  • Curtain motor wiring: connect one or two switches to S1/S2; L Out 1 drives the motor forward and L Out 2 drives it in reverse
  • Switch wiring: connect two switches to S1/S2; L Out 1 and L Out 2 each power a separate light
  • Terminals: N in (neutral), L in (live), L Out 1, L Out 2, S1, S2
Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz – Adding the Relay to the eWeLink App
04

Adding the Relay to the eWeLink App

  • Once powered on, the relay enters Bluetooth pairing mode
  • Download and install the eWeLink app
  • In the app, select Bluetooth pairing mode
Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz – Device Overview
05

Device Overview

  • Mounting bracket
  • Pairing button
  • S1 on/off indicator
  • S2 on/off indicator
  • Wi-Fi indicator
Sonoff Dual R3 Lite 2-Channel Wi-Fi Smart Relay with Scheduling – 2.4 GHz – Specifications
06

Specifications

  • Model: DUALR3 Lite
  • Wi-Fi: IEEE 802.11 b/g/n 2.4 GHz
  • Input/Output: 100-240V AC 50/60 Hz
  • Electrical load: 2200W/10A per channel, 3300W/15A total
  • Motor load: 10 - 240W/1A
  • Dimensions: 54 x 49 x 24 mm
  • Operating temperature: -10 °C ~ 40 °C
  • FCC ID: 2APN5DUALR3L
