Livolo

Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series

SKU: VL-2FCMKS-WP

AED 52

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo mechanical 2 gang light switch with glass frame, usable as a 2-way (staircase) switch, in White, Gold, Grey or Black.

Product details

Livolo mechanical 2 gang light switch with glass frame. The product is compatible with glass frames for standard German back boxes or Italian modular back boxes.

Can be used as a 2-way (staircase) switch

Highlights

Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series – Livolo Double 2-Way Mechanical Switch
01

Livolo Double 2-Way Mechanical Switch

A range of products with a simple design and an extraordinary mechanism. Available in white, black, gold and grey finishes.

  • Double (2 gang) 2-way mechanical switch
  • Simple design, extraordinary mechanism
Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series – Compatibility Notice
02

Compatibility Notice

Double 2-way mechanical switches only work when installed with other Livolo double 2-way mechanical products. Livolo products do NOT work with other brands.

Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series – Fade-Resistant Design
03

Fade-Resistant Design

The switch does not discolour, so its elegant design stays intact.

Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series – Structure
04

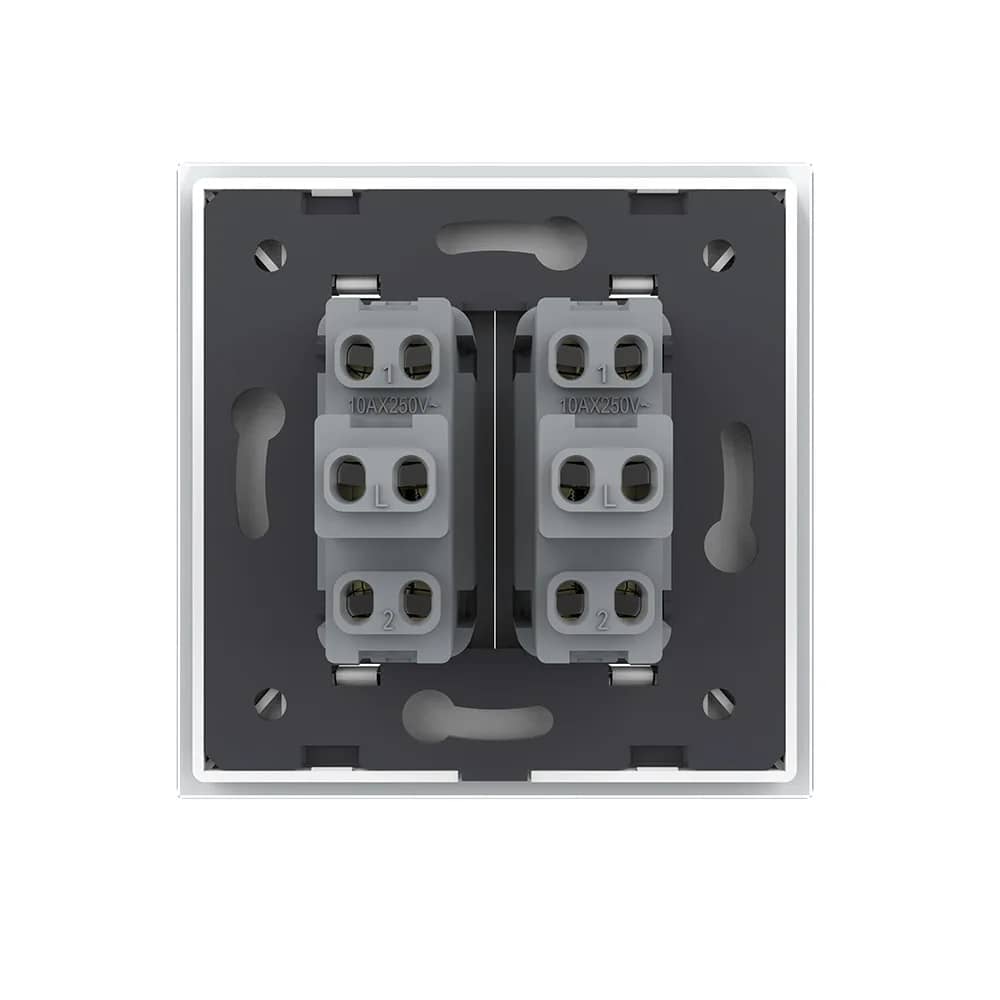

Structure

The switch is made up of three parts and uses a screw-fixing system.

  • Glass frame
  • Switch module
  • Metal frame
  • Screw fixing system
Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series – Dimensions
05

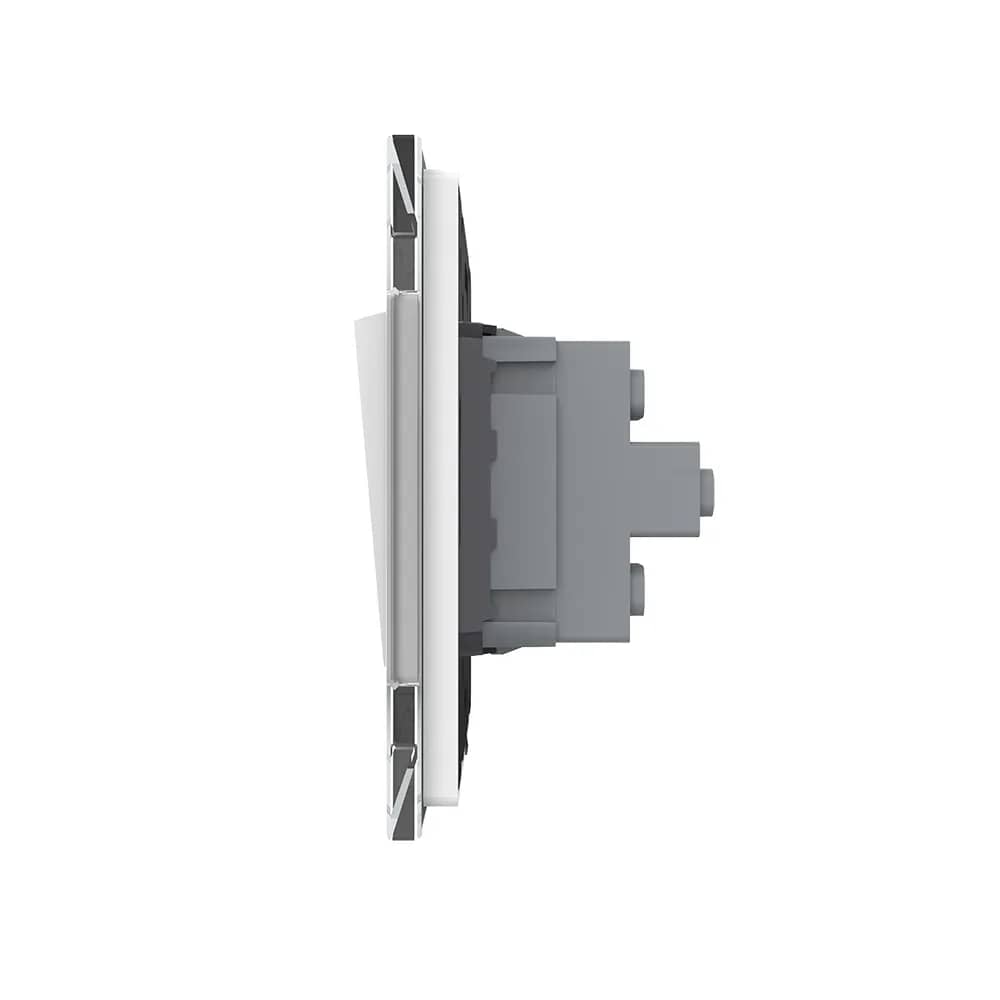

Dimensions

  • Front panel: 80 mm x 80 mm
  • Fixing screw spacing: 60 mm
  • Depth behind panel: 33 mm
  • Panel thickness: 4 mm
  • Side profile: 8 mm
Livolo Mechanical 2 Gang 2-Way Light Switch with Glass Frame – New Series – Wiring Diagrams
06

Wiring Diagrams

Wiring diagrams are provided for use as a double switch and as a double 2-way switch controlling two lights from two locations.

  • Neutral and live (phase) connections shown
  • Double switch: live connected to both switch modules, each controlling one light
  • Double 2-way: two switches linked by 2-way (traveller) wires
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
