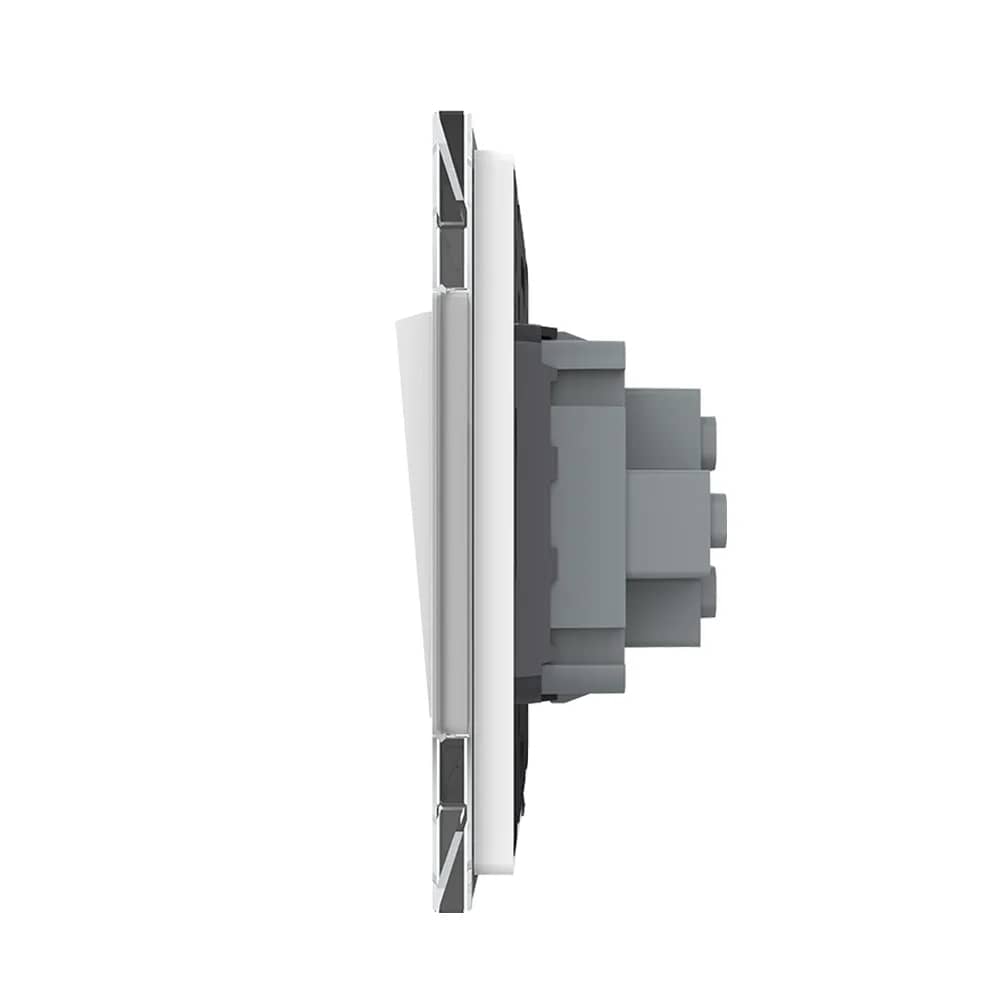

Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – White — image 3

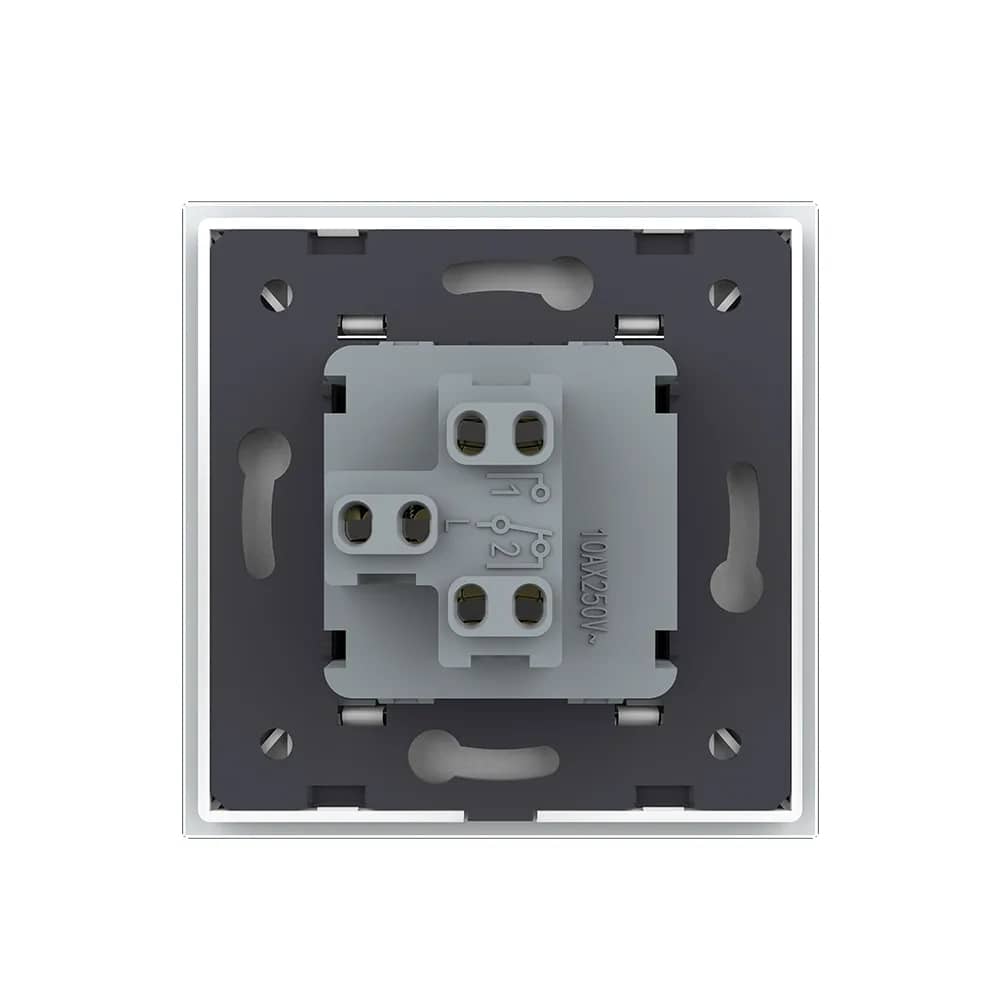

Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – White — image 4
1/4
Livolo

Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series

SKU: VL-FCMKS-2WP

AED 38

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo mechanical 1 gang light switch, 2 modules, with glass frame – also usable as a 2-way (staircase) switch. Available in White, Black, Grey and Gold.

Product details

Livolo mechanical 1 gang light switch, 2 modules, with glass frame. The product is compatible with glass frames for standard German back boxes or Italian modular back boxes.

Can be used as a 2-way (staircase) switch

Highlights

Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – Single Mechanical 2-Way Switch – Livolo, 2 Modules
01

Single Mechanical 2-Way Switch – Livolo, 2 Modules

A wide choice of products with a simple design and an extraordinary mechanism. This Livolo mechanical 2-way (staircase) switch lets you control one light from two locations.

  • Single mechanical 2-way switch
  • 2 modules
  • Available in several frame colours
Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – Compatibility Notice
02

Compatibility Notice

Mechanical 2-way switches only work when installed with other Livolo mechanical 2-way and intermediate (cross) switches. Livolo products DO NOT WORK with other brands.

Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – Does Not Discolour
03

Does Not Discolour

The elegant design stays intact over time.

Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – Wiring Diagrams
04

Wiring Diagrams

The switch can be wired as a standard on/off switch or as part of a 2-way / intermediate circuit.

  • Standard switch: live (phase) to the switch, switch to the lamp, lamp to neutral
  • 2-way – intermediate: two 2-way switches connected through one intermediate (cross) switch to control the same light
  • Rating marked on the module: 10AX 250V~
Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – Structure
05

Structure

The switch consists of three parts.

  • Glass frame
  • Switch module
  • Metal frame
  • Screw fixing system
Livolo Mechanical 1 Gang & 2-Way Light Switch, 2 Modules with Glass Frame – New Series – Dimensions
06

Dimensions

  • Frame size: 80 mm x 80 mm
  • Fixing screw spacing: 60 mm
  • Glass thickness: 4 mm
  • Depth behind frame: 25 mm
  • Front profile: 8 mm
07

Installation

Simple installation in four steps.

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail
